UniFi Access Door Hub Mini
From £85.00 — request a quote
Key features
- Single-door controller: Pairs with any UniFi Access reader to run one door end to end.
- Two PoE ports: Powers a reader and a camera from the hub itself, no extra supplies needed.
- Compact form factor: Small enough for a comms cupboard or an above-door void.
- Managed from one app: Users, schedules and access logs sit alongside the rest of a UniFi estate.
A compact single-door controller for UniFi Access, pairs with any UniFi Access reader to bring one door onto the same platform as the rest of your network.
Fast UK deliveryMost in-stock items ship within a few working days.
Survey & installationAvailable on request, we'll quote it alongside the product.
Staff trainingHands-on training available on projects that include it.
Ongoing supportMaintenance and care plans available, see Support & Maintenance.
Online ordering is not open yet. Tell us what you need below and we'll confirm availability, delivery and installation.
Specifications
UniFi Access Door Hub Mini specifications| Brand | Ubiquiti |
|---|
| Manufacturer part number | UA-Hub-Door-Mini |
|---|
| Supported doors | 1 |
|---|
| Maximum users | 3,000 |
|---|
| Power input | PoE++, 50 V DC, 1 A |
|---|
| PoE outputs | 2 x PoE+ 50 V DC, 30 W per port (45 W max aggregate) |
|---|
| Power consumption | 19 W without PoE output; 50 W with PoE output |
|---|
| Network ports | 3 x GbE RJ45 |
|---|
| Inputs | 1 door exit request, 1 door position |
|---|
| Relay outputs | Dry 30 V DC 1 A; wet 12 V DC 1 A |
|---|

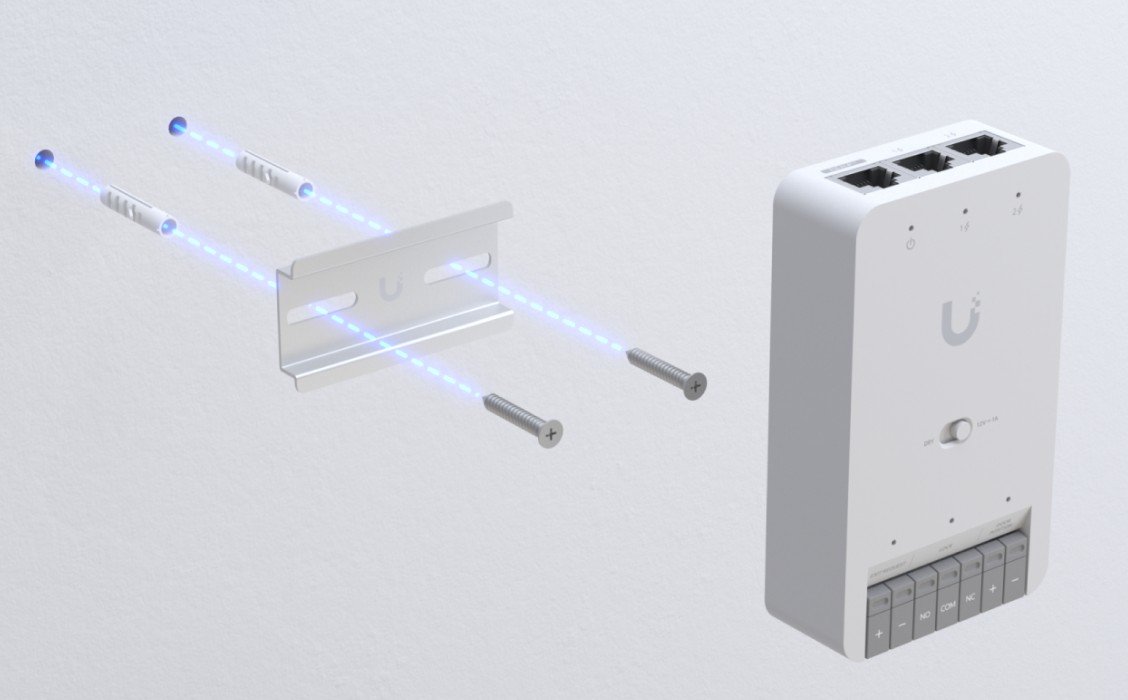

| Mounting | DIN rail (included) |
|---|
| Environment | Indoor only; 0 to 40 °C; 5 to 90% non-condensing |
|---|

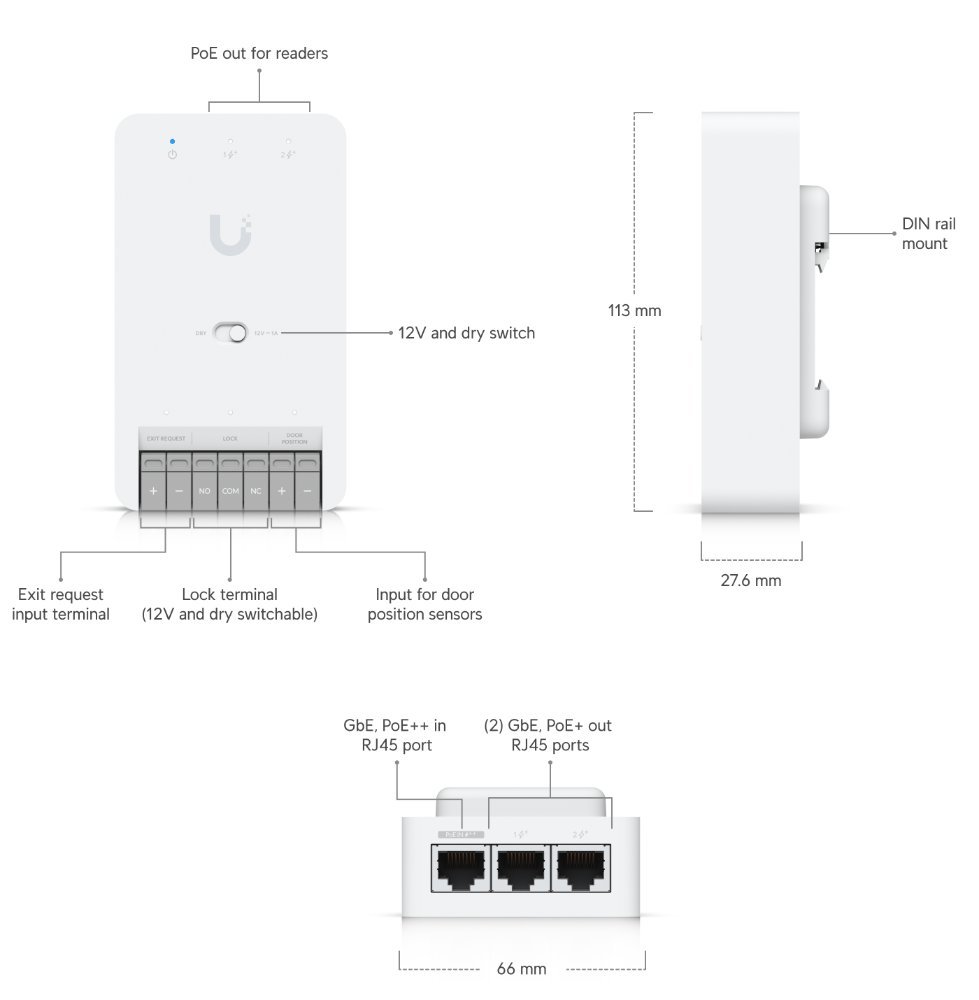

| Dimensions / weight | 113 x 66 x 27.6 mm; 190 g |
|---|
| Management | UniFi Access application |
|---|
Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.
What you need to know
- It needs a UniFi Console that supports the UniFi Access application. Ubiquiti describes UniFi Access as a licence-free door access system.
- Ubiquiti's getting started guide lists the hub, a reader, a compatible door lock and PoE switches as the components of an Access system. The lock and reader are sold separately.
- It is powered by a PoE++ switch port (50 V DC), or by a UL 294 Class 2 or LPS/PS2 power supply. It is for indoor installation only.
Frequently asked questions
How many doors does the Door Hub Mini control?
One door. Ubiquiti lists 1 supported door and up to 3,000 users. It has one door exit request input, one door position input, and dry (30 V DC, 1 A) and wet (12 V DC, 1 A) lock relay outputs.
How is the Door Hub Mini powered?
It takes PoE++ at 50 V DC, or a UL 294 power-limited Class 2 supply or an LPS/PS2 supply. It also has two PoE+ outputs of up to 30 W each, with 45 W maximum in total, to power connected readers.
Can the Door Hub Mini be installed outdoors?
No. The tech specs list it as indoor only, with an operating temperature of 0 to 40 °C and 5 to 90% non-condensing humidity. It mounts on a DIN rail, which is included, and no IP rating is listed.
Description
Efficient IS supplies the UniFi Access Door Hub Mini to UK organisations, with delivery, survey and installation available on request.

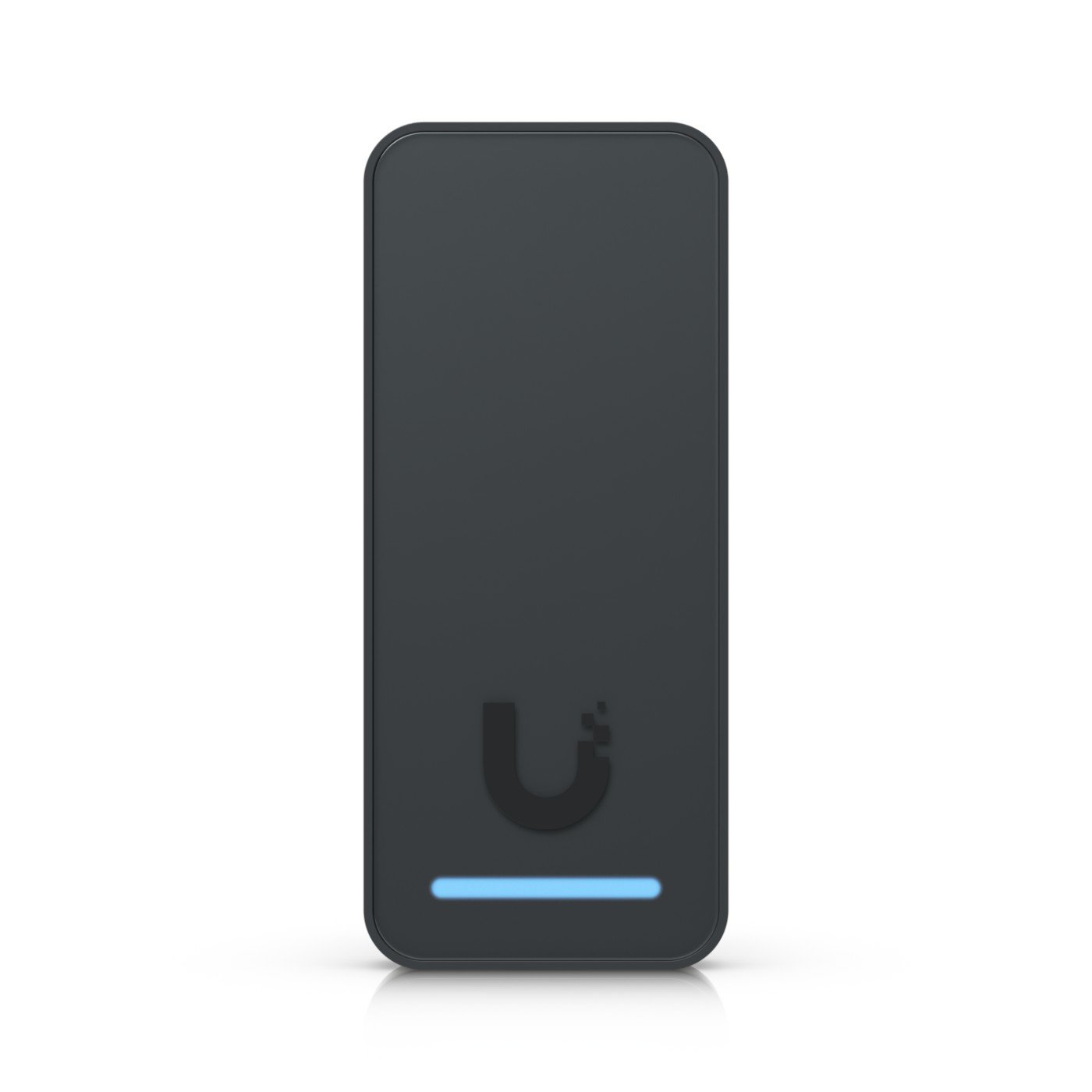

The Door Hub Mini is the smallest way to bring a single door onto UniFi Access. It pairs with any UniFi Access reader (the G3 Reader, G3 Reader Pro or G3 Intercom) and powers both a reader and a camera over its two PoE ports, so there’s no separate power supply to find space for.
For an SME office with one or two controlled doors, this is usually the right starting point, small enough to sit in a comms cupboard or above-door void, and managed from the same UniFi Access app used for everything else on a UniFi network.
