UniFi Access Ultra
From £299.00 — request a quote
Key features

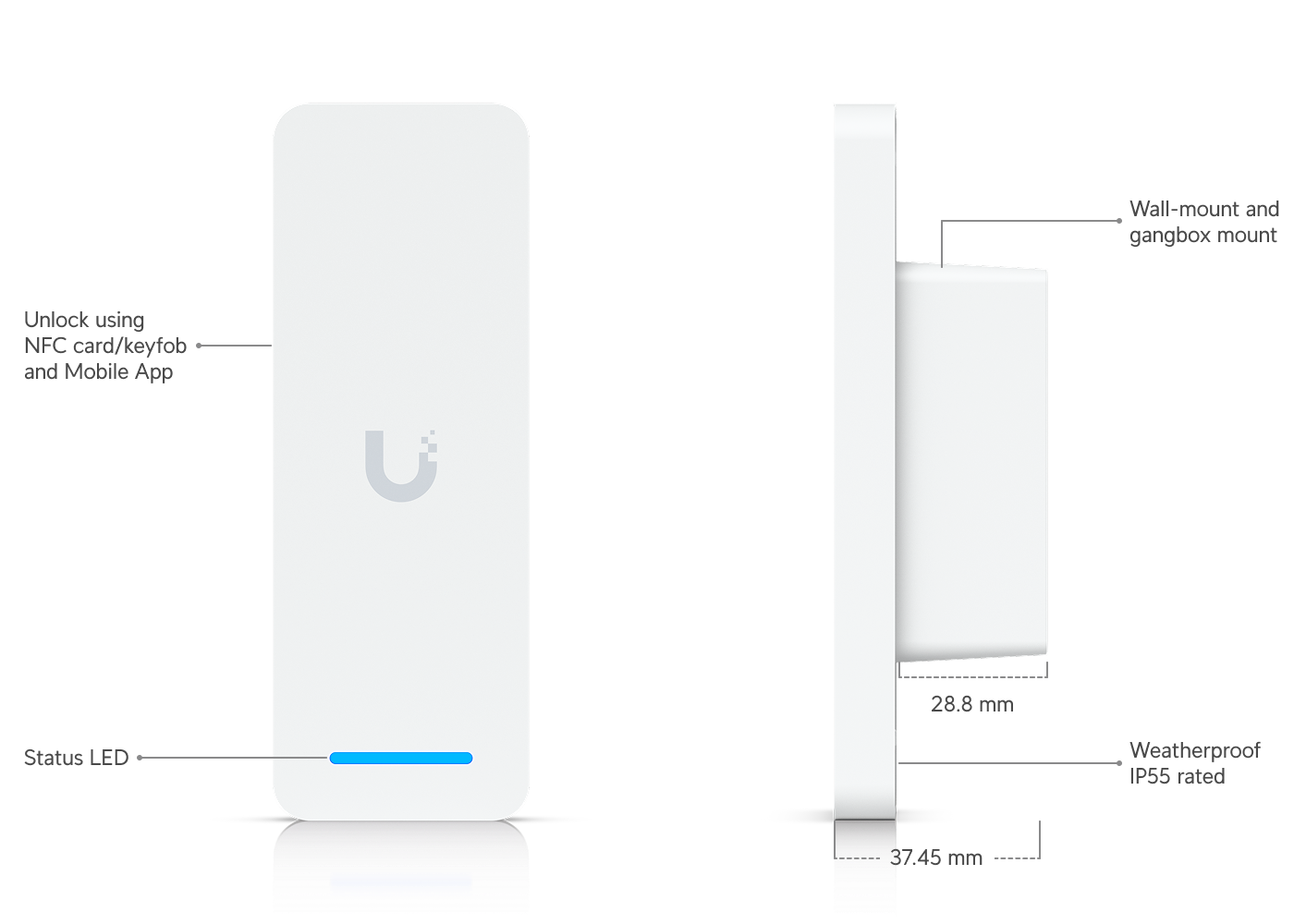

- NFC card, keyfob and mobile phone unlock
- Supports up to 3,000 users per reader
- IP55 weatherproof rating, suitable for external doors
- UL 294 tamper and line-security rated
- Wall or gang-box mount included
Door access control reader, card, fob, PIN or mobile unlock, IP55-rated for up to 3,000 users.
Fast UK deliveryMost in-stock items ship within a few working days.
Survey & installationAvailable on request, we'll quote it alongside the product.
Staff trainingHands-on training available on projects that include it.
Ongoing supportMaintenance and care plans available, see Support & Maintenance.
Online ordering is not open yet. Tell us what you need below and we'll confirm availability, delivery and installation.
Specifications
UniFi Access Ultra specifications| Brand | Ubiquiti |
|---|
| Manufacturer part number | UA-Ultra |
|---|
| Type | Access reader with built-in hub for a single door |
|---|
| Credentials | NFC cards and keyfobs, mobile unlock |
|---|
| NFC | 13.56 MHz, read range under 50 mm |
|---|
| Maximum users | 3,000 |
|---|
| Power | PoE+ or 44 to 57 V DC; max 18 W |
|---|
| Lock relay output | 12 V DC, 1 A |
|---|
| Connectivity | 1 x 10/100 RJ45, Bluetooth LE 4.2 |
|---|
| Ingress rating | IP55, indoor and outdoor |
|---|
| Operating temperature | -30 to 40 °C (-22 to 104 °F) |
|---|

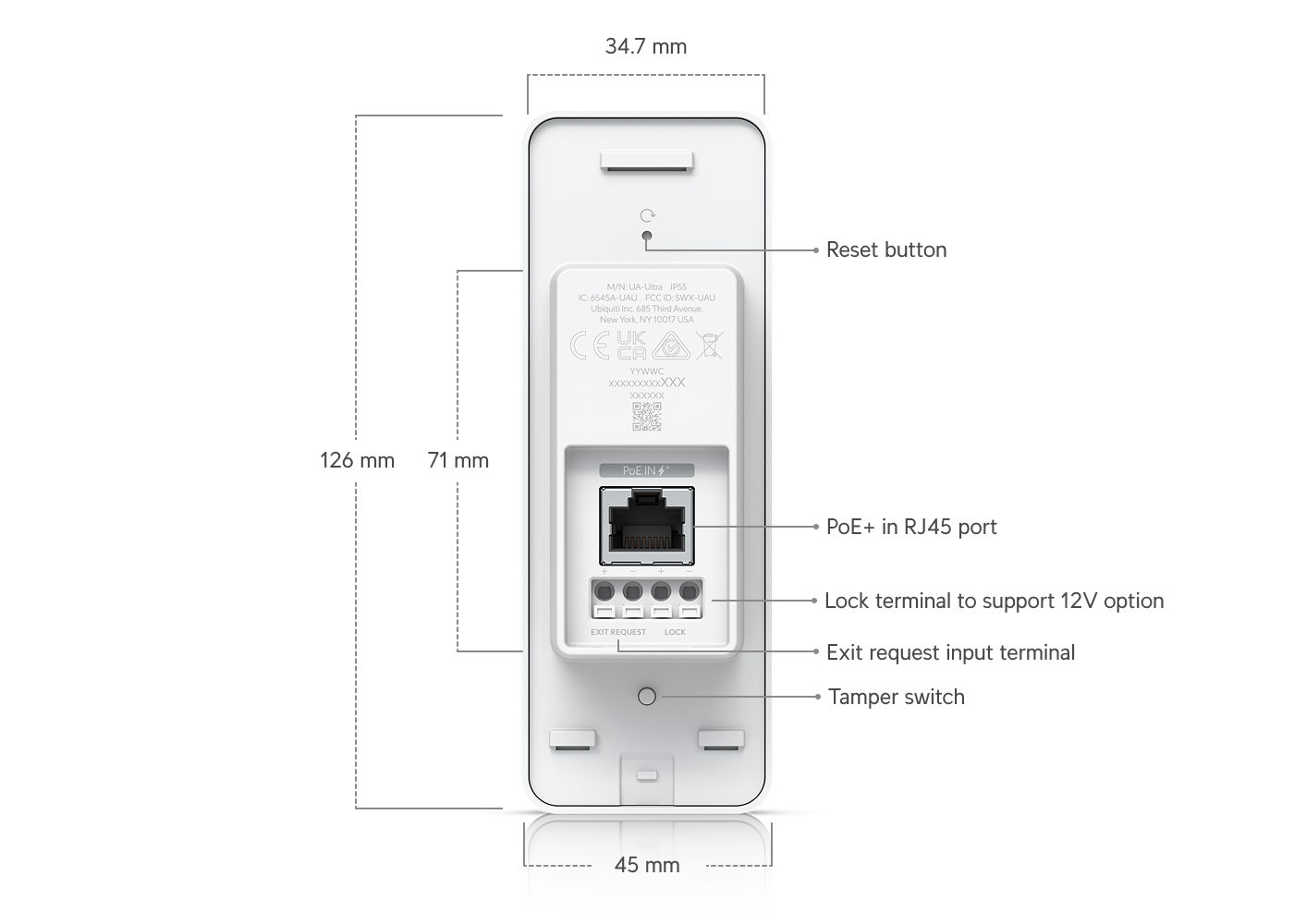

| Dimensions / weight | 126 x 45 x 37.45 mm; 140 g |
|---|

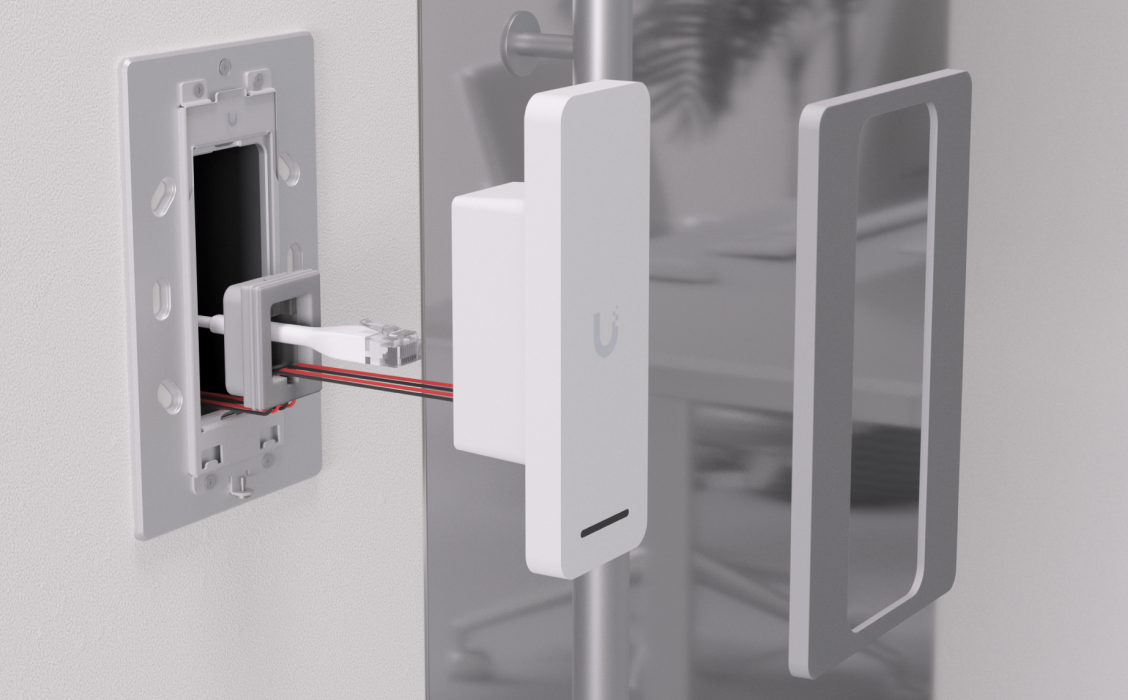

| Mounting | Wall mount and gang box mount included; junction box optional |
|---|
| Management | UniFi Access application |
|---|
Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.
What you need to know
- It has a built-in hub, so one unit controls a single door. Ubiquiti's store page states it is not compatible with standalone Access Hubs.

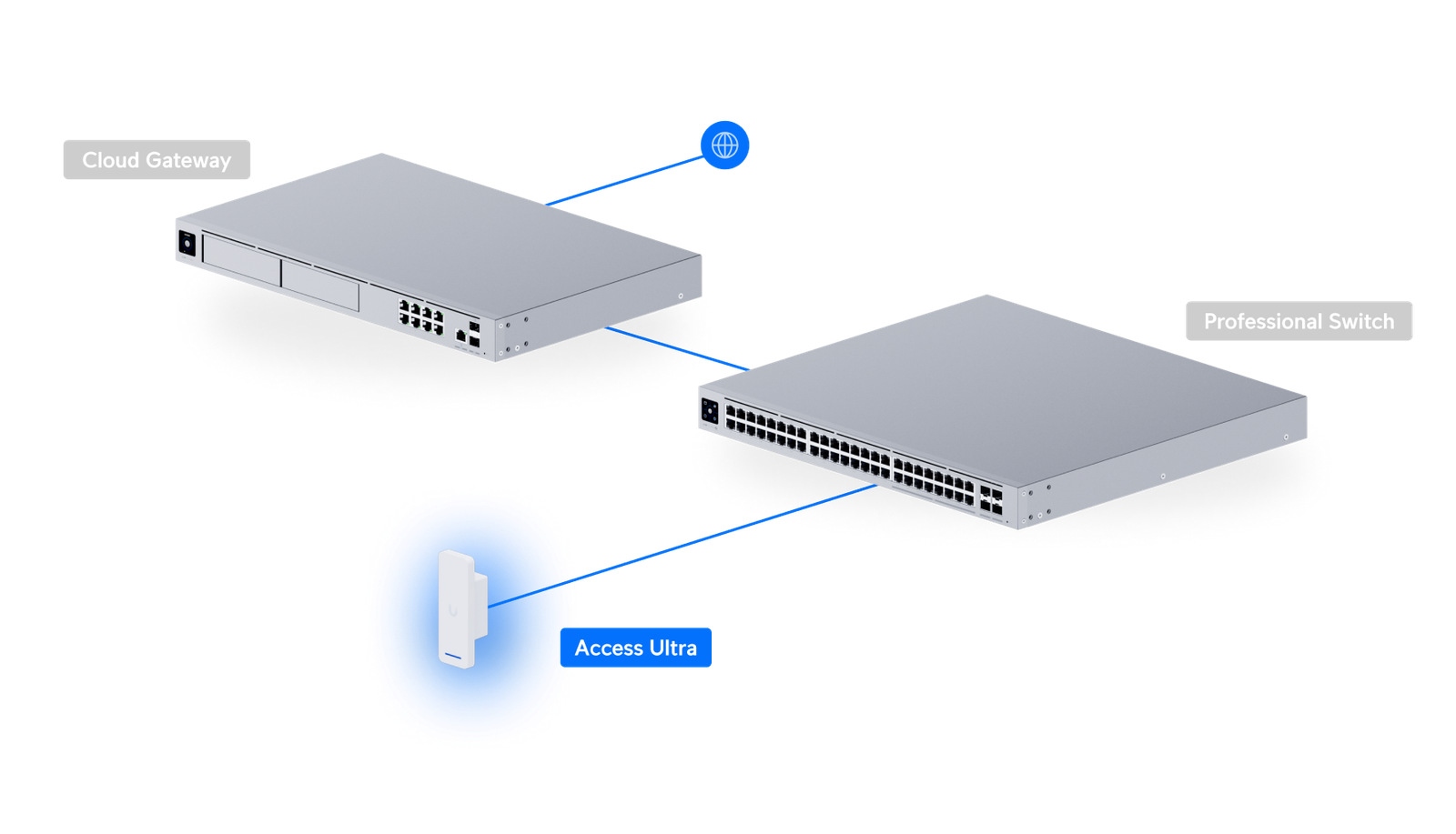

- It is managed in the UniFi Access application, which needs a UniFi Console that supports Access. Ubiquiti describes Access as licence-free.
- It needs a PoE+ switch port (or a 44 to 57 V DC supply) and Cat 5e or better cabling. The door lock connects to its 12 V DC, 1 A relay output and is sold separately.
Frequently asked questions
Does Access Ultra need a separate door hub?
No. Ubiquiti describes it as an access reader with a built-in hub for complete single-door entry control from one device. The store page also states that it is not compatible with standalone Access Hubs.
How is Access Ultra powered?
It runs from PoE+ or a 44 to 57 V DC supply, with a maximum consumption of 18 W. Ubiquiti recommends Cat 5e or better cabling, and the lock relay output is rated at 12 V DC, 1 A.
Does Access Ultra support Touch Pass?
Touch Pass is not listed for Access Ultra. Ubiquiti's Touch Pass help article names the G6 Pro Entry, G6 Entry, G3 Intercom, G3 Reader Pro, G3 Reader and Reader Flex as supported readers. Access Ultra supports NFC cards, keyfobs and mobile unlock.
Reviews
There are no reviews yet.
