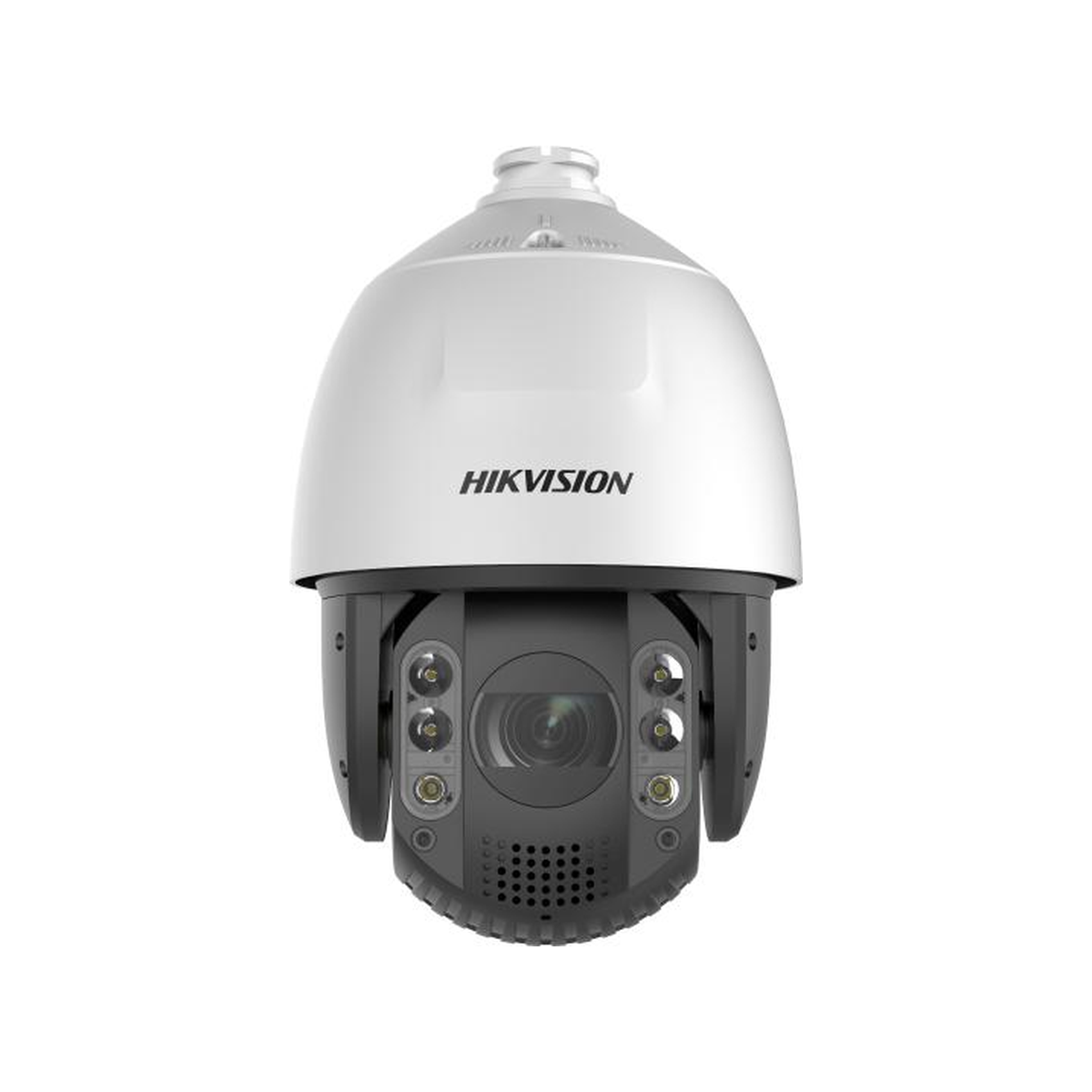

Hikvision DS-2DE7A432IWG1-E 4MP 32x PTZ Camera

Key features

32x optical zoom: Long-range detail for perimeters and large sites.
200 m infrared: Extended night-time reach.
AcuSense and DarkFighter: Classifies people and vehicles, and keeps detail in low light.
Audio and warning: Dual microphones, with an audible warning and white flashing light.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Pricing for this item hasn't been confirmed yet. Tell us what you need below and we'll come back to you with a quote.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)

SKU: EIS-PRJ-CCTV-HIK-DS-2DE7A432IWG1-E Category: CCTV Brand: Hikvision

Specifications

Hikvision DS-2DE7A432IWG1-E 4MP 32x PTZ Camera specifications
Brand	Hikvision
Manufacturer part number	DS-2DE7A432IWG1-E
Resolution	4 MP, 2560 x 1440
Lens	5.5 mm to 176 mm, F1.6
Zoom	32x optical, 16x digital
Field of view (horizontal)	60.72° to 2.2°
IR range	Up to 200 m
Min. illumination	0.005 Lux colour, 0.001 Lux B/W, 0 Lux with IR
WDR	120 dB
Pan / tilt	Pan 360°, tilt -15° to 90° (auto flip)
Ingress / impact	IP67, IK10
Power	36 VDC, max 42 W, Hi-PoE
Operating temperature	-30 °C to 65 °C
Video compression	H.265+, H.265, H.264+, H.264

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

Power is listed as 36 VDC ±25%, maximum 42 W, Hi-PoE. This is a higher power class than standard PoE or PoE+, so use a Hi-PoE source or suitable injector.
The wall mount DS-1602ZJ is listed as an included accessory. Pole, pendant, corner and gooseneck mounts are optional.
Has 2 alarm inputs, 1 alarm output, line in/out, and built-in microphone and speaker. Supports human and vehicle classification (AcuSense) and smart tracking.

Frequently asked questions

What power does it need?

The datasheet lists 36 VDC ±25% at up to 42 W, described as Hi-PoE. It does not name an IEEE PoE standard, so confirm your switch or injector supports Hi-PoE at that wattage.

How tough is the housing?

It is rated IP67 for dust and water and IK10 for impact, and the datasheet lists TVS 6000 V lightning protection. Operating temperature is -30 °C to 65 °C.

How fast does it pan and tilt?

Pan is configurable from 0.1° to 160°/s with a preset speed of 240°/s. Tilt is configurable from 0.1° to 120°/s with a preset speed of 200°/s. It stores 300 presets and supports auto flip.

Description

Efficient IS supplies the Hikvision DS-2DE7A432IWG1-E 4MP 32x PTZ Camera to UK organisations, with delivery, survey and installation available on request.

A 7 inch 4MP PTZ camera with 32x optical zoom and 200 m of infrared, with AcuSense classification and DarkFighter low-light imaging, for long-reach detail across perimeters, yards and large sites where a smaller PTZ cannot see far enough.Our team can survey the site, supply, install and commission the camera, and advise on mounting, power and how it sits alongside fixed cameras. Indicative pricing is confirmed as part of your quote.Specifications:

Brand: Hikvision
Type: 7 inch PTZ network camera
Resolution: 4MP (up to 2560 x 1440)
Lens: Motorised, 32x optical and 16x digital zoom
Pan and tilt: Pan 360 degrees, tilt minus 15 to 90 degrees with auto flip, 300 presets
Night vision: Infrared up to 200 m
Analytics: AcuSense human and vehicle classification
Low light: DarkFighter
Compression: H.265+
Audio: Built-in dual microphones
Rating: IP67
Power: PoE++ or 36 V DC, confirmed at quote

Buying the Hikvision DS-2DE7A432IWG1-E 4MP 32x PTZ Camera from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
