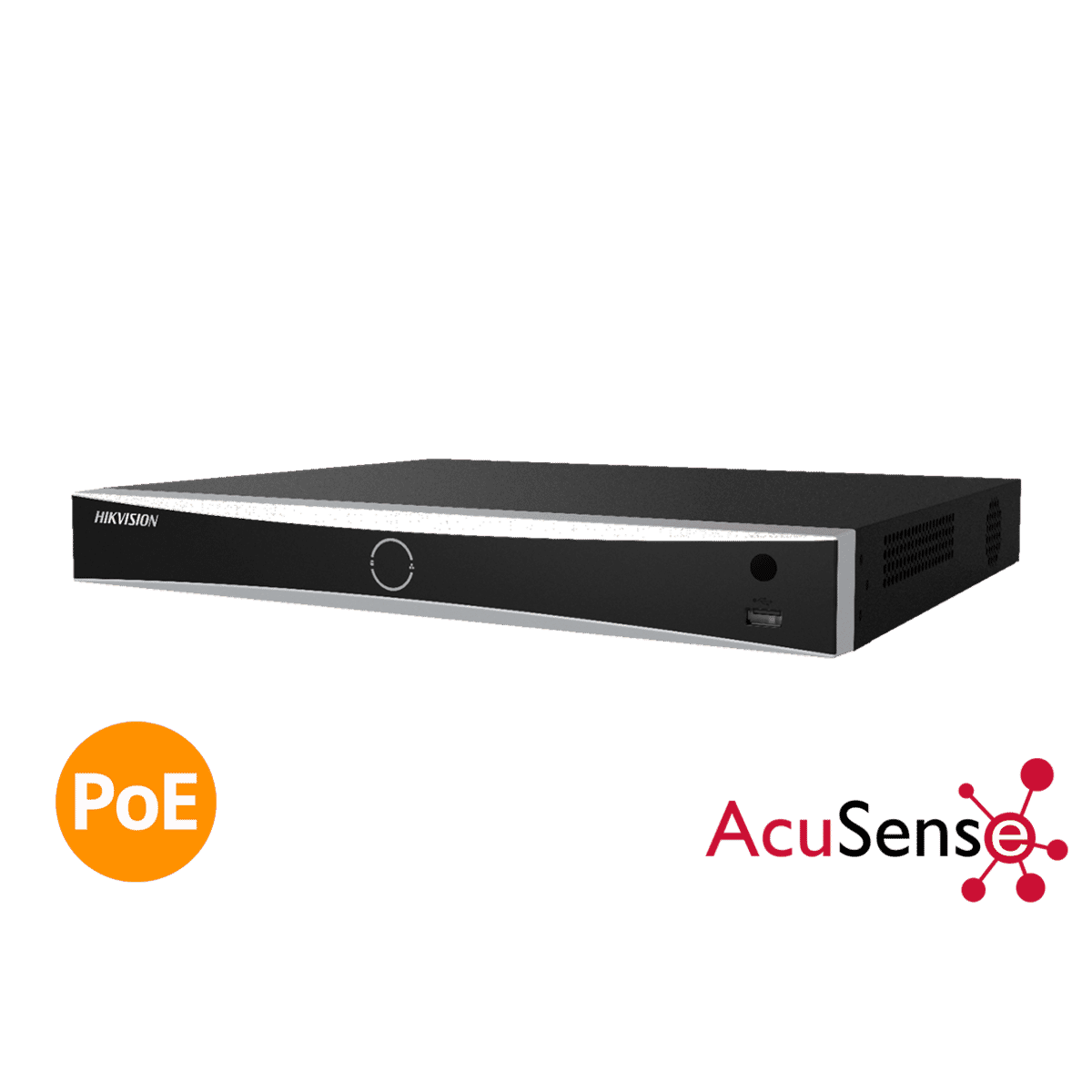

Hikvision DS-7616NXI-K2/16P(D) 16 Channel 4K PoE NVR
POArequest a quote
Key features
- 16 channels: Records up to 16 IP cameras on one recorder.
- 16 built-in PoE ports: Cameras are powered and connected from the recorder itself.
- 4K recording: Supports high resolution cameras up to 4K.
- K-series, 1U rack unit: A compact recorder that suits a comms cabinet.
A 16 channel K-series network video recorder with 16 built-in PoE ports, so up to sixteen IP cameras connect and record from one 1U unit without a separate PoE switch.
Fast UK deliveryMost in-stock items ship within a few working days.
Survey & installationAvailable on request, we'll quote it alongside the product.
Staff trainingHands-on training available on projects that include it.
Ongoing supportMaintenance and care plans available, see Support & Maintenance.
Pricing for this item hasn't been confirmed yet. Tell us what you need below and we'll come back to you with a quote.
Specifications
Hikvision DS-7616NXI-K2/16P(D) 16 Channel 4K PoE NVR specifications| Brand | Hikvision |
|---|
| Manufacturer part number | DS-7616NXI-K2/16P(D) |
|---|
| IP camera channels | 16 |
|---|
| Incoming bandwidth | 160 Mbps (outgoing 160 Mbps) |
|---|
| Max recording resolution | 12 MP per camera |
|---|
| PoE ports | 16 x RJ-45, 10/100 Mbps, IEEE 802.3af/at |
|---|
| PoE power | Up to 200 W |
|---|
| Hard drive bays | 2 x SATA, up to 16 TB per drive |
|---|
| Video outputs | 1 x HDMI up to 4K (3840 x 2160) at 30 Hz, 1 x VGA up to 1920 x 1080 at 60 Hz |
|---|
| Network interface | 1 x RJ-45 10/100/1000 Mbps |
|---|
| Analytics | AcuSense human and vehicle recognition (2 channels); motion detection 2.0 on all channels |
|---|
| Operating temperature | -10 °C to 55 °C |
|---|
| Power supply | 100 to 240 VAC, 50 to 60 Hz; 15 W or less without HDD and PoE off |
|---|
| Dimensions | 385 x 315 x 52 mm |
|---|
Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.
What you need to know
- The recorder has two SATA bays, each listed for a drive of up to 16 TB. No drives are listed as supplied, so hard drives need to be bought separately.
- The 16 PoE ports follow IEEE 802.3af/at at 10/100 Mbps, with PoE power listed as up to 200 W. Add up the draw of all connected cameras against that figure.
- Incoming bandwidth is 160 Mbps and recording is up to 12 MP per camera. AcuSense human and vehicle recognition is listed for 2 channels, not all 16.
Frequently asked questions
How many hard drives can the DS-7616NXI-K2/16P(D) take?
It has 2 SATA interfaces, each listed for a hard drive of up to 16 TB. No drives are listed as supplied, so you need to buy at least one drive before the recorder can store video.
Can it power all 16 cameras over PoE?
It has 16 PoE ports following IEEE 802.3af/at, with PoE power listed as up to 200 W. If the combined draw of your cameras exceeds 200 W, some will need a separate PoE source.
Does AcuSense work on every channel?
Motion detection 2.0 is listed for all channels. The AcuSense human and vehicle recognition that reduces false alarms is listed for 2 channels, so it is not available on all 16 cameras at once.
