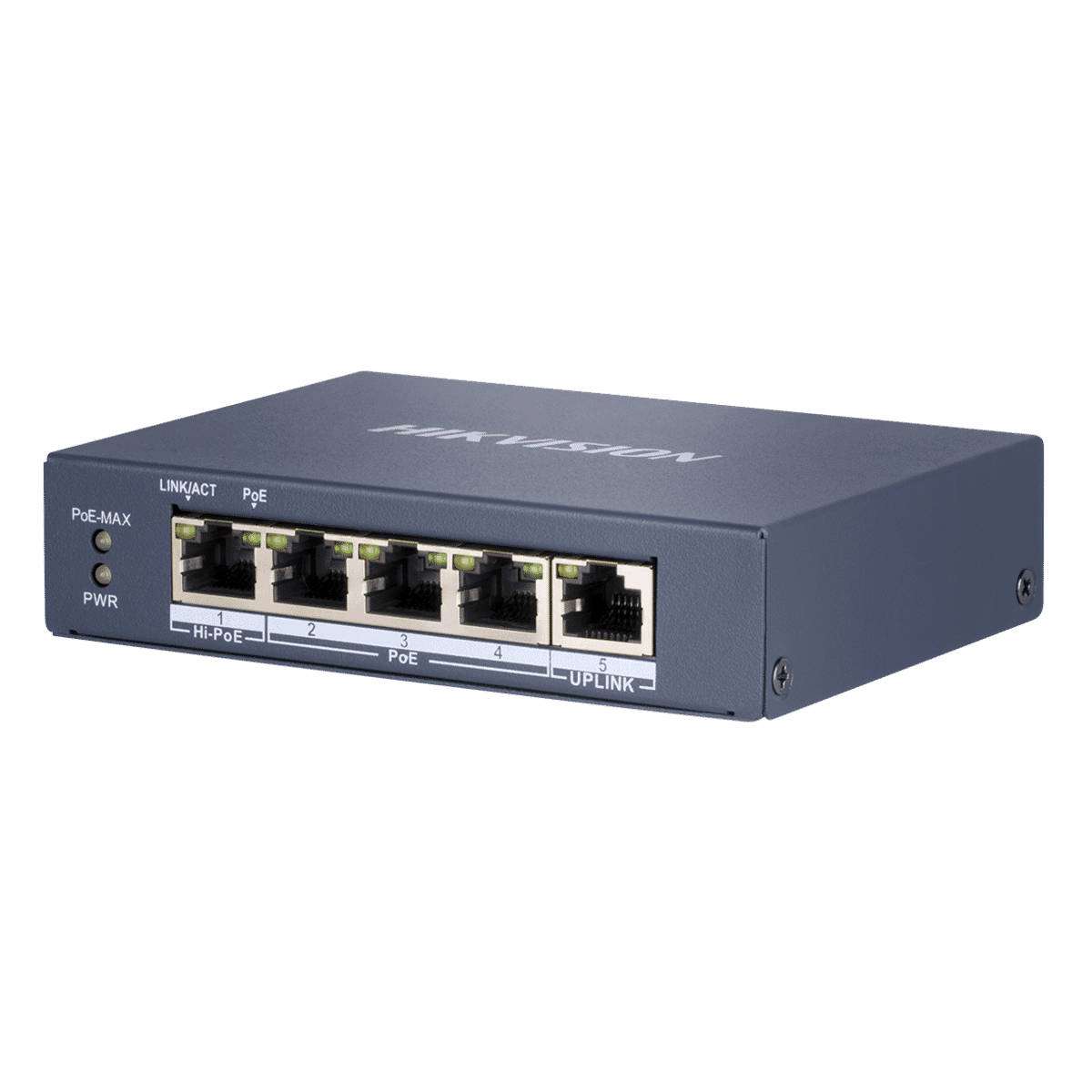

Hikvision DS-3E0505HP-E 5 Port Gigabit PoE Switch
POArequest a quote
Key features
- Four PoE ports: Powers cameras over the network cable, one of the ports is Hi-PoE.
- Gigabit throughout: 10 Gbps switching capacity and a gigabit uplink.
- 60 W PoE budget: Enough for a small group of cameras.
- Fan-free metal case: Silent, compact desktop unit.
A compact unmanaged gigabit switch with four PoE ports, one of them Hi-PoE for higher power devices, and a gigabit uplink. A simple way to power and connect a handful of cameras where there is no PoE recorder.
Fast UK deliveryMost in-stock items ship within a few working days.
Survey & installationAvailable on request, we'll quote it alongside the product.
Staff trainingHands-on training available on projects that include it.
Ongoing supportMaintenance and care plans available, see Support & Maintenance.
Pricing for this item hasn't been confirmed yet. Tell us what you need below and we'll come back to you with a quote.
Specifications
Hikvision DS-3E0505HP-E 5 Port Gigabit PoE Switch specifications| Brand | Hikvision |
|---|
| Manufacturer part number | DS-3E0505HP-E |
|---|
| Ports | 4 x Gigabit PoE RJ-45 plus 1 x Gigabit RJ-45 uplink |
|---|
| PoE standards | Port 1: IEEE 802.3af/at/bt (Hi-PoE); ports 2 to 4: IEEE 802.3af/at |
|---|
| Power per port | Port 1: up to 60 W; ports 2 to 4: up to 30 W |
|---|
| Total PoE budget | 60 W |
|---|
| Switching capacity | 10 Gbps |
|---|
| Packet forwarding rate | 7.44 Mpps |
|---|
| MAC address table | 2K |
|---|
| Surge protection | 6 kV on PoE ports |
|---|
| Long range transmission | Up to 300 m on ports 3 and 4 |
|---|
| Power supply | 48 VDC, 1.35 A; 65 W maximum consumption |
|---|
| Operating temperature | 0 °C to 40 °C |
|---|
| Housing and size | Metal, fan-free, desktop; 121 x 88.1 x 27.6 mm |
|---|
Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.
What you need to know
- The total PoE budget is 60 W shared across the four PoE ports. Port 1 can supply up to 60 W (Hi-PoE), and ports 2 to 4 up to 30 W each, so all four cannot run at full power at the same time.
- It is an unmanaged switch with four PoE ports and one Gigabit uplink port, intended for desktop mounting. The datasheet lists a 48 VDC, 1.35 A power input.
- Long range transmission of up to 300 m is listed on ports 3 and 4 only. The datasheet says performance depends on the camera model and cable condition.
Frequently asked questions
How many PoE cameras can the DS-3E0505HP-E power?
It has four PoE ports plus one uplink. The total PoE budget is 60 W, with up to 30 W on ports 2 to 4 and up to 60 W on port 1, so the cameras' combined draw must stay within 60 W.
What does Hi-PoE mean on this switch?
Port 1 supports IEEE 802.3af, at and bt, with power of up to 60 W, for cameras that need more than standard PoE. Ports 2 to 4 support IEEE 802.3af/at at up to 30 W each.
Can it send PoE further than 100 metres?
The datasheet lists long range transmission of up to 300 m on ports 3 and 4. It states that actual performance depends on the camera model and cable condition, so test with your own equipment before relying on that distance.
