Extron NAV E121 AV-over-IP Encoder/Decoder Pair
From £1,650.00 — request a quote
4K60 AV-over-IP encoder and decoder pair for distributing video over standard network infrastructure.
Fast UK deliveryMost in-stock items ship within a few working days.
Survey & installationAvailable on request, we'll quote it alongside the product.
Staff trainingHands-on training available on projects that include it.
Ongoing supportMaintenance and care plans available, see Support & Maintenance.
Online ordering is not open yet. Tell us what you need below and we'll confirm availability, delivery and installation.
Specifications
Extron NAV E121 AV-over-IP Encoder/Decoder Pair specifications| Brand | Extron |
|---|

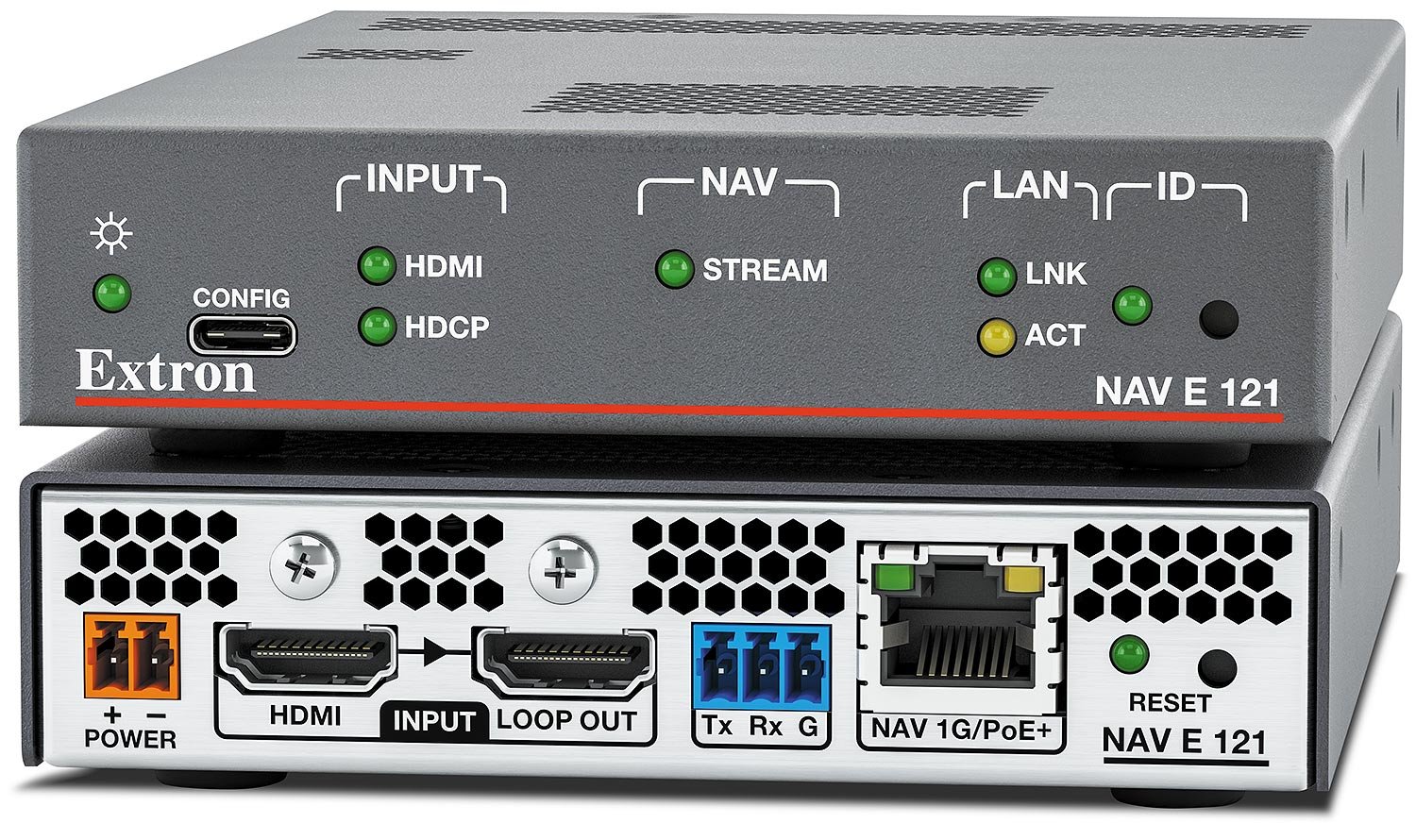

| Encoder model | NAV E 121, 1G Pro AV over IP compact encoder (HDMI), part number 60-2040-01 |
|---|
| Video | Up to 4K at 60 Hz with 4:4:4 chroma sampling |
|---|
| Compression | Extron PURE3 codec |
|---|
| Latency | Less than one frame |
|---|
| Network | 1 Gbps copper Ethernet, multicast UDP |
|---|
| Cable run | Up to 100 m over Cat 5e, 6, 6a or 7 |
|---|
| Power | PoE+ (IEEE 802.3at Type 2, Class 4) |
|---|
| Audio | Embedded HDMI audio, one LPCM stream and one AES67 stream over IP |
|---|
| Dimensions | 25 x 109 x 152 mm (H x W x D), quarter rack width |
|---|
| Warranty | 3 years parts and labour |
|---|
Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.
What you need to know
- The encoder is powered by PoE+ (IEEE 802.3at Type 2, Class 4), so the network switch port needs to supply it. Extron states that power priority between PoE and line power is configurable.
- The encoder needs a decoder on the same network. Extron lists NAV 1 Gbps copper scaling decoders such as the NAV SD 101 as pairing options.
- AV over IP depends on the network. Extron specifies multicast UDP transport and a 1 Gbps copper link, with a maximum cable run of 100 m.
- Extron states that the NAV E 121 is configured through the endpoint or the NAVigator browser interface.
Frequently asked questions
What video can the NAV E 121 encoder carry?
Extron states up to 4K at 60 Hz with 4:4:4 chroma sampling, using HDMI 2.0 input with 8 or 10 bit colour.
How is the encoder powered?
By PoE+ (IEEE 802.3at Type 2, Class 4) over its Ethernet connection. Line power is also supported, with configurable power priority.
How far can it be from the decoder?
Extron specifies a maximum cable run of 100 m over Cat 5e, 6, 6a or 7 copper.
Can the encoder be rack mounted?
It is quarter rack width. Extron states that four units fit a single 1U RSB 126 shelf mount.
