Extron AV-over-IP NAV Series Enterprise Rollout

Extron AV-over-IP NAV Series Enterprise Rollout, view 2

Extron AV-over-IP NAV Series Enterprise Rollout, view 3

Extron AV-over-IP NAV Series Enterprise Rollout

From £15,000.00 — request a quote

Key features

Distributes HDMI (and USB, on supported models) over standard network infrastructure
1G models: NAV E 121/SD 121 and fibre NAV E 511/SD 511 for Gigabit Ethernet deployments
10G models: NAV 10E 201 D/10E 401 D for higher-bandwidth requirements

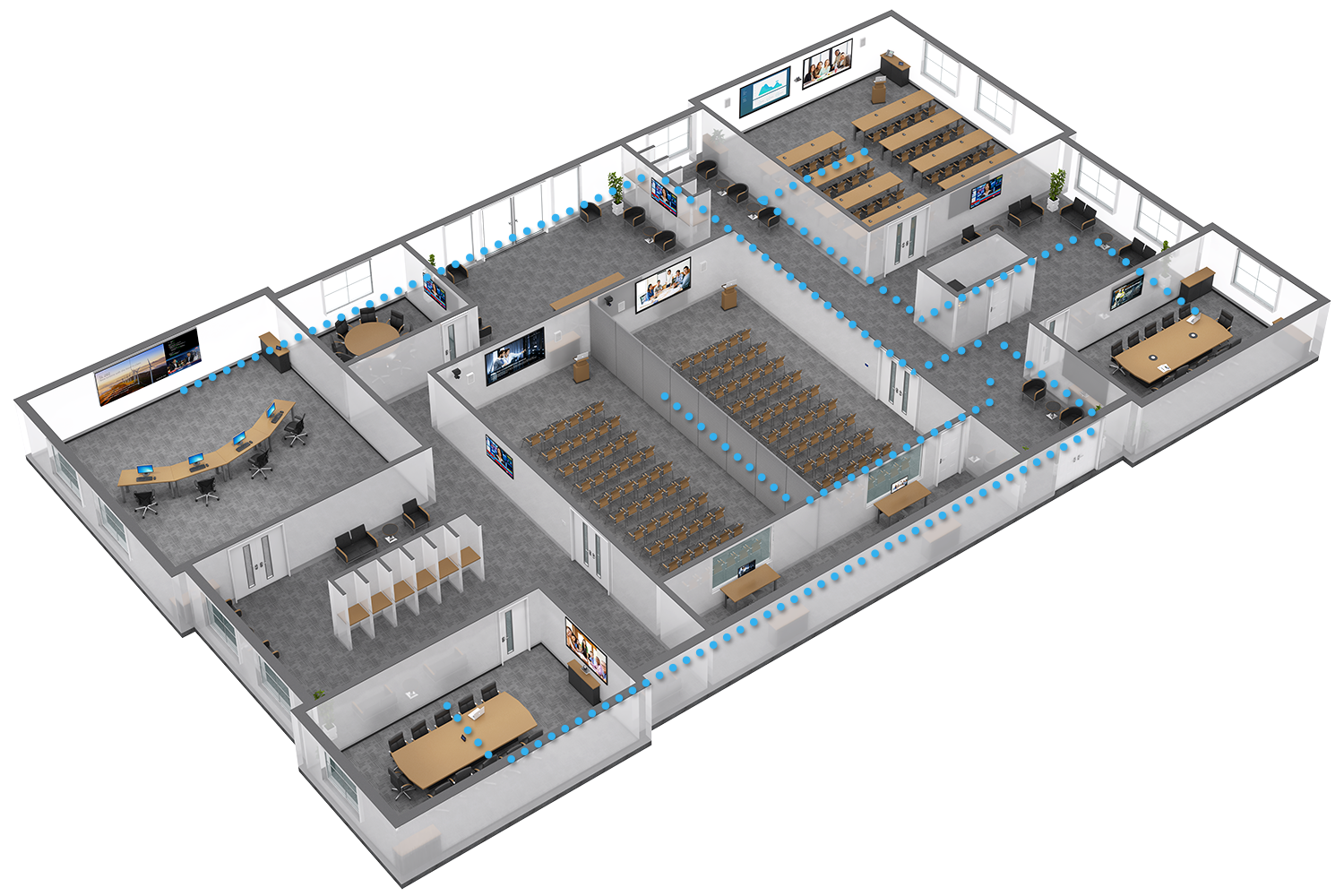

Delivers 4K video across large campuses via existing IT network infrastructure rather than dedicated AV cabling

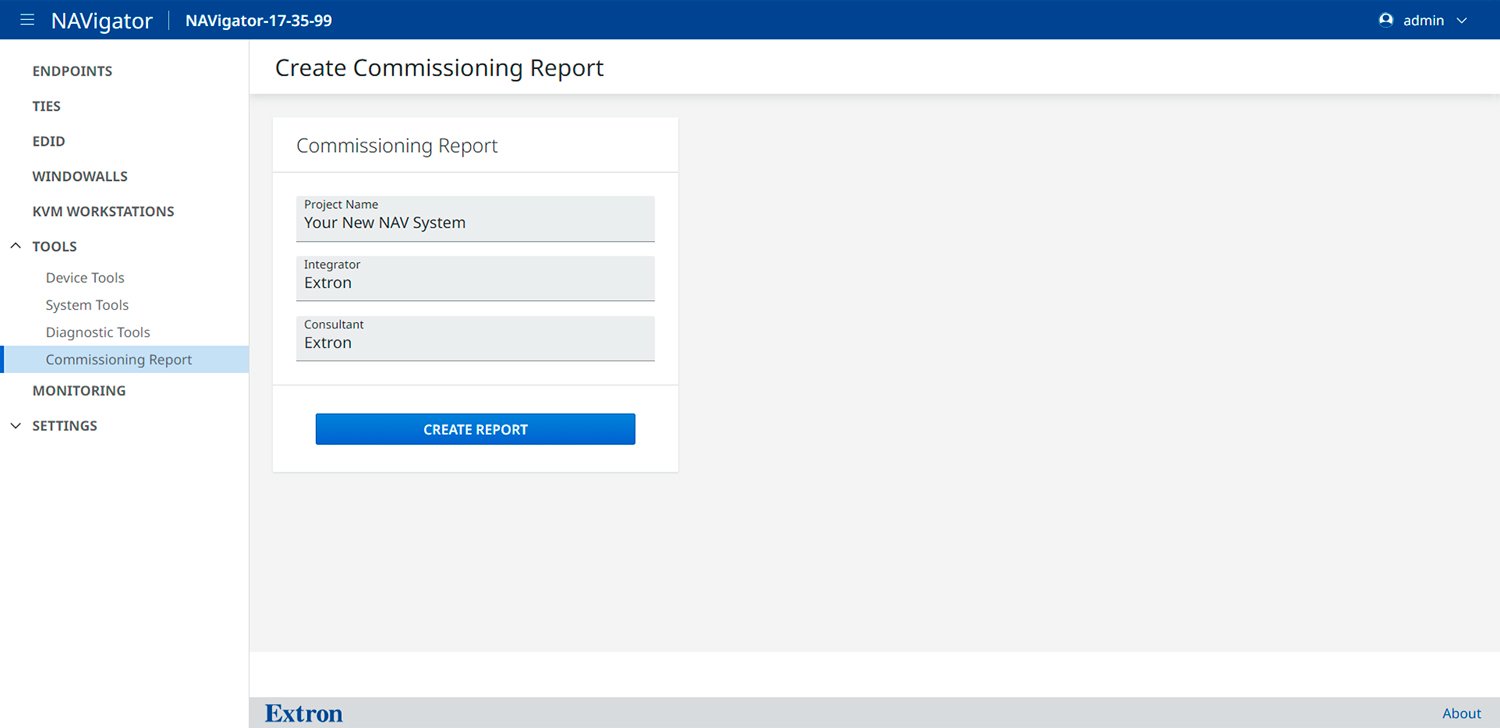

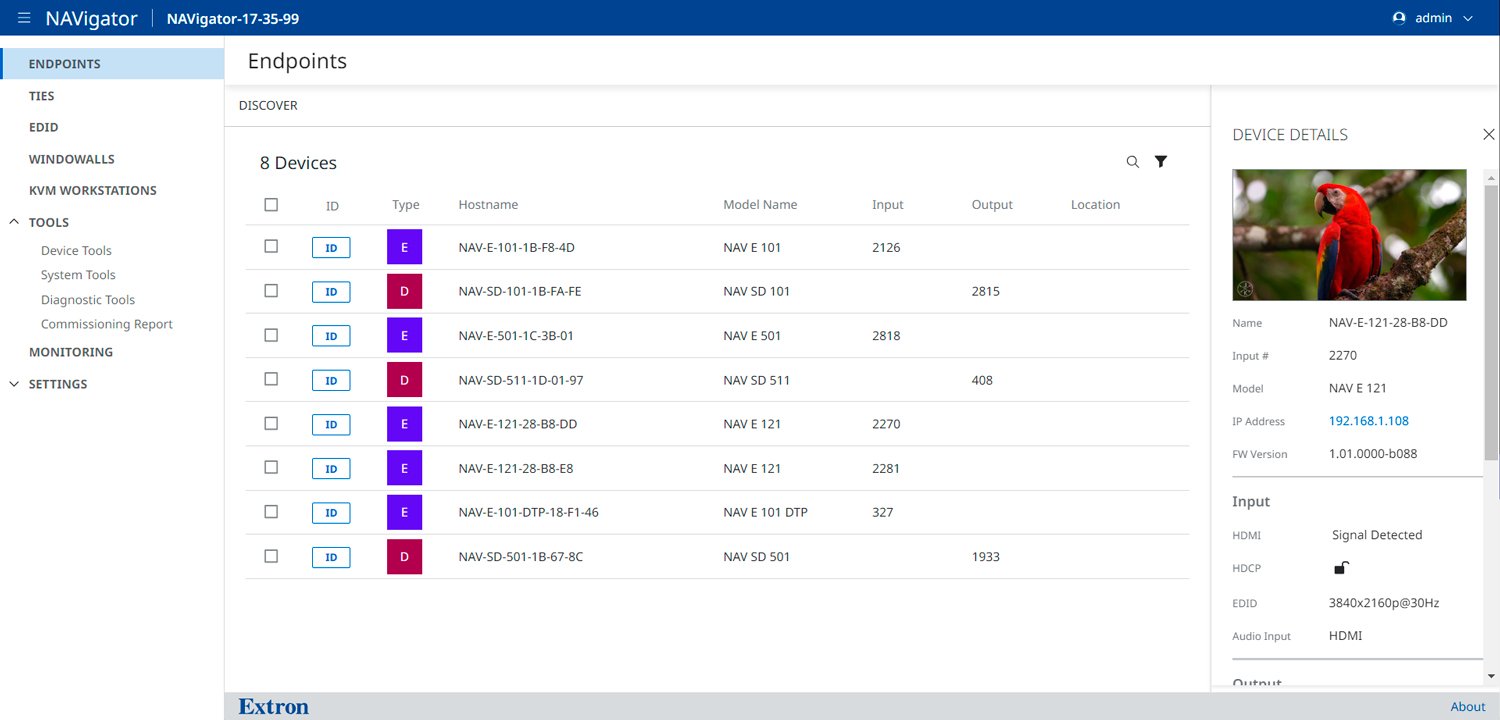

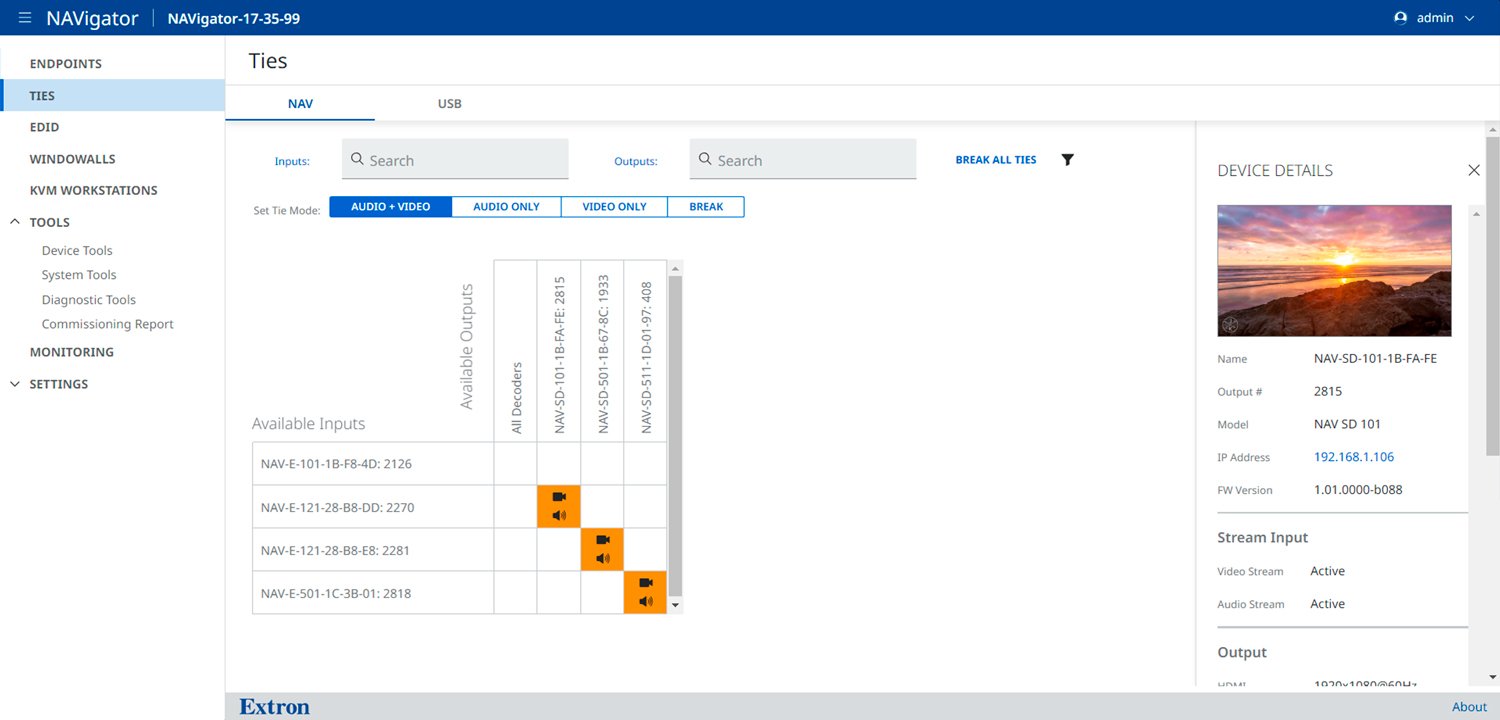

Centrally managed through Extron's NAVigator software for configuration, scheduling and monitoring
Built for large corporate estates, education campuses and digital signage networks at scale

Scalable enterprise AV-over-IP deployment for distributing content across many rooms and floors. Guide price shown is a starting point only, final quotation follows a free site survey.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Indicative pricing, final cost confirmed as part of your quote, based on quantity, site survey and exact specification.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

SKU: EIS-PRJ-OFFICE-EXTRON-AV-OVER-IP-NAV-ENTERPRISE Categories: AV-over-IP, AV-over-IP Systems Tags: enterprise AV over IP, Extron NAV, office refit, video distribution Brand: Extron

Specifications

Extron AV-over-IP NAV Series Enterprise Rollout specifications
Brand	Extron
Product family	Extron NAV Series AV over IP
Distribution	HDMI, and USB on supported models, over standard network infrastructure
1G models	NAV E 121 / SD 121 encoders and decoders
1G fibre models	NAV E 511 / SD 511
10G models	NAV 10E 201 D / 10E 401 D
Management	Extron NAVigator software
NAV SD 121 output	Up to 4K/60 with 4:4:4 chroma, HDMI
NAV SD 121 power	PoE+ (IEEE 802.3at Type 2, Class 4), 15.2 W

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

The range covers 1G, 1G fibre and 10G NAV models. The quantities and combination for a given site are confirmed in the quote after survey.
The NAV SD 121 uses multicast UDP transport and lists IGMPv2/v3, so the network switches need to support the required features. Check this against the Extron documentation for the models chosen.
The NAV SD 121 is described by Extron as fully compatible with NAV 10 Gbps endpoints, which allows 1G and 10G NAV devices to be mixed on a network.

Frequently asked questions

What does the NAV Series do?

It distributes HDMI video, and USB on supported models, over standard network infrastructure, so 4K video can be sent across large campuses and buildings without dedicated AV matrix cabling.

Which NAV models are covered?

NAV E 121 / SD 121 (1G), NAV E 511 / SD 511 (1G fibre) and NAV 10E 201 D / 10E 401 D (10G), managed through NAVigator software.

Do I need to check the network?

Yes. Extron lists multicast and IGMP support for the NAV SD 121, so the switches and configuration should be reviewed before installation.

Can the system be surveyed and installed?

Yes. Delivery, survey and installation are available on request, along with staff training and maintenance.

Description

Efficient IS supplies the Extron AV-over-IP NAV Series Enterprise Rollout to UK organisations, with delivery, survey and installation available on request.

Extron’s NAV Series distributes HDMI, and USB on supported models, over standard network infrastructure, built for distributing 4K video across large campuses and buildings via existing IT network infrastructure rather than dedicated AV matrix cabling.Specifications:

Brand: Extron
Product: NAV Series, AV-over-IP system
1G models: NAV E 121 / SD 121 encoders and decoders, NAV E 511 / SD 511 fibre variants, for standard Gigabit Ethernet deployments
10G models: NAV 10E 201 D / 10E 401 D, for higher-bandwidth requirements
Typical use: Large corporate estates, education campuses and digital signage networks at scale
Management: Extron’s NAVigator software, for configuration, scheduling and monitoring across every encoder/decoder on the network

Buying the Extron AV-over-IP NAV Series Enterprise Rollout from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
