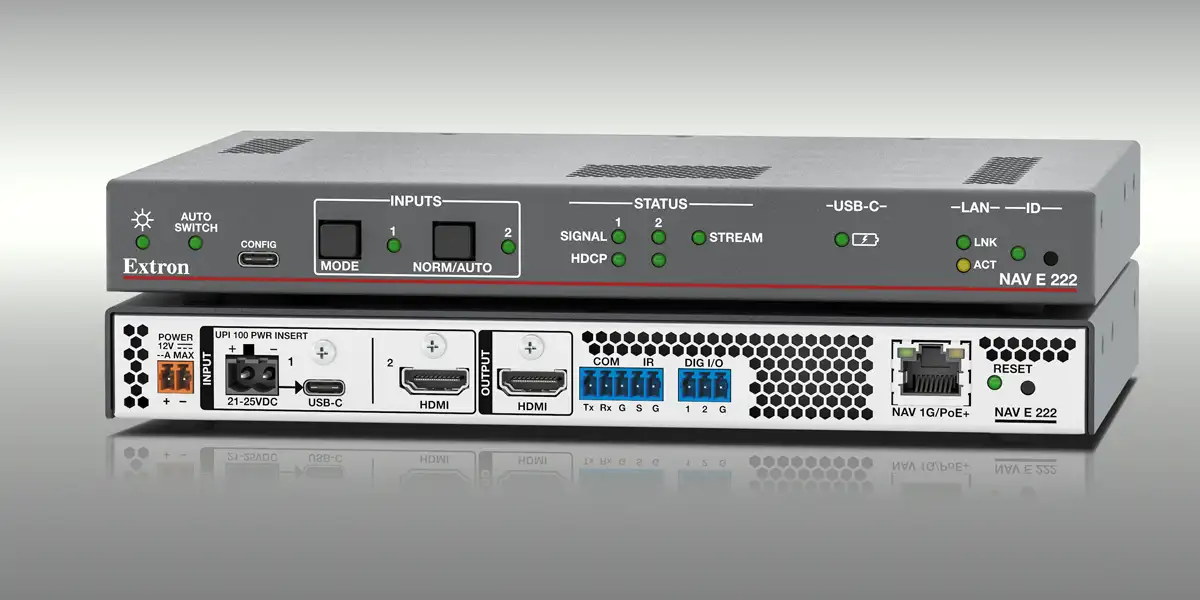

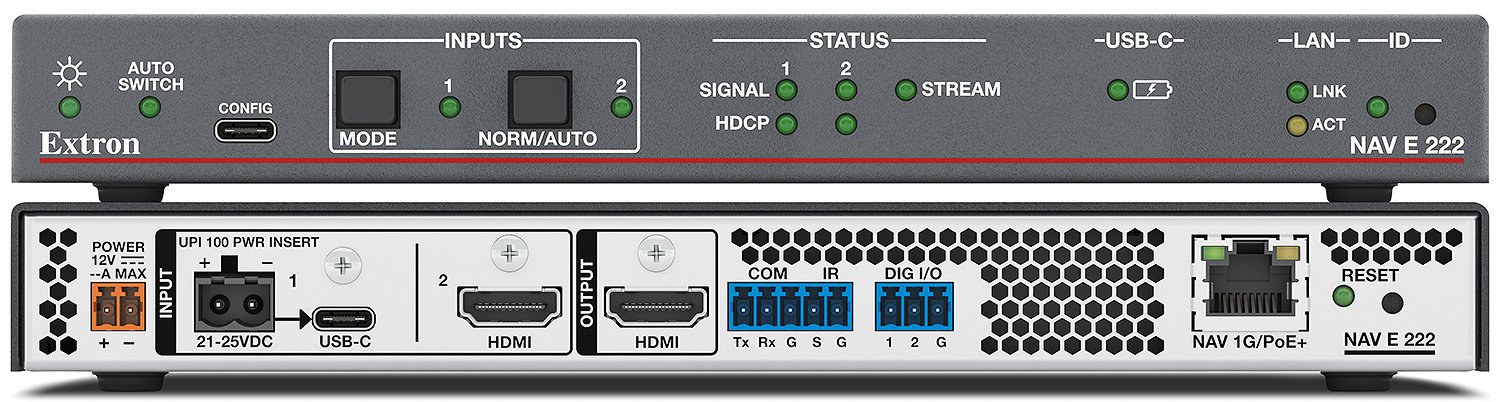

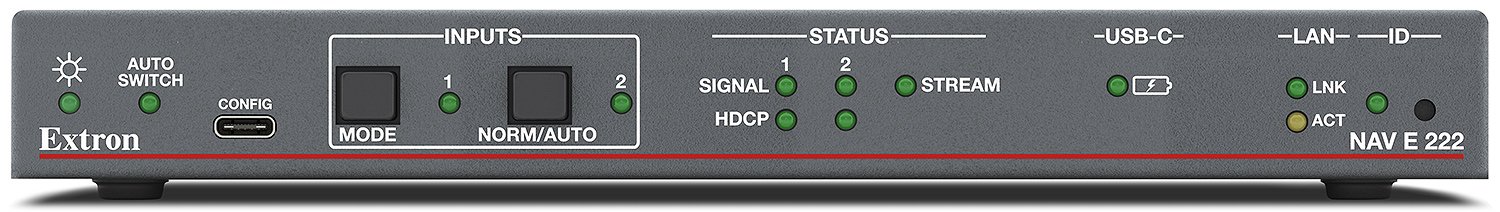

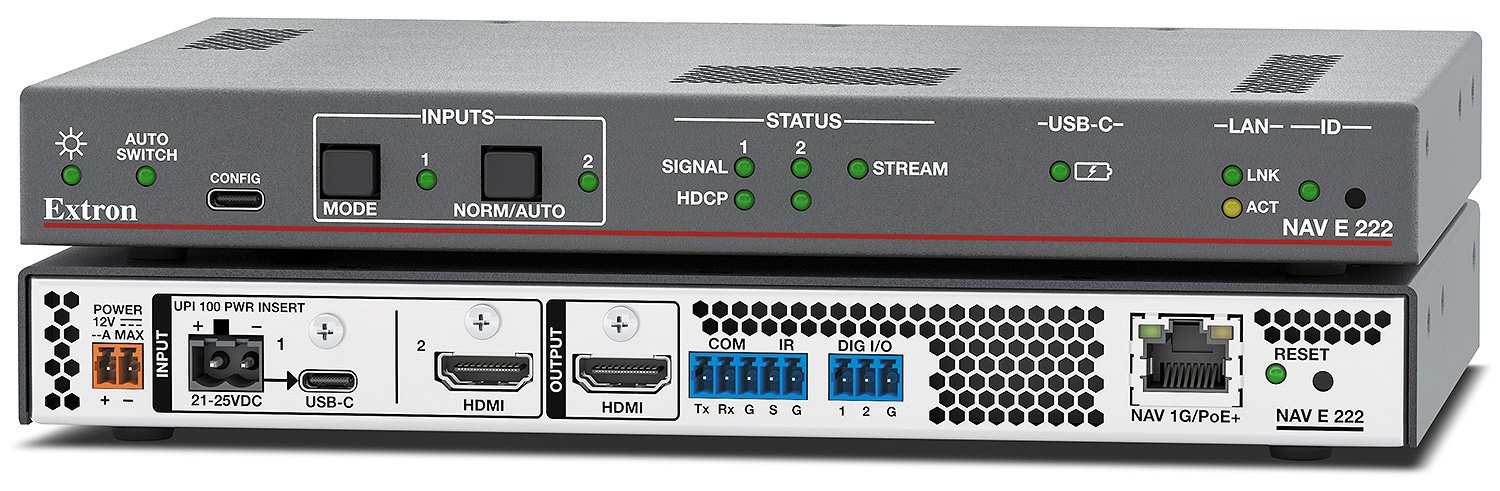

Extron NAV E222 AV-over-IP Switching Encoder (USB-C & HDMI)
POArequest a quote
Key features
- Two-input switching encoder: HDMI and USB-C (DisplayPort Alt Mode), with HDMI loop-out
- Streams up to 4K60 4:4:4 video, audio, USB and control over a standard 1Gbps network, PoE+ powered
- Adjustable bitrate (250-900 Mbps) with HDCP and SRTP stream encryption
- Up to 100m reach over Cat 5e/6/6a/7
Two-input Pro AV over IP switching encoder for USB-C and HDMI sources, streaming visually lossless video, audio and control over 1Gbps IP.
Fast UK deliveryMost in-stock items ship within a few working days.
Survey & installationAvailable on request, we'll quote it alongside the product.
Staff trainingHands-on training available on projects that include it.
Ongoing supportMaintenance and care plans available, see Support & Maintenance.
Indicative pricing, final cost confirmed as part of your quote, based on quantity, site survey and exact specification.
Specifications
Extron NAV E222 AV-over-IP Switching Encoder (USB-C & HDMI) specifications| Brand | Extron |
|---|
| Manufacturer part number | 60-2069-01 |
|---|

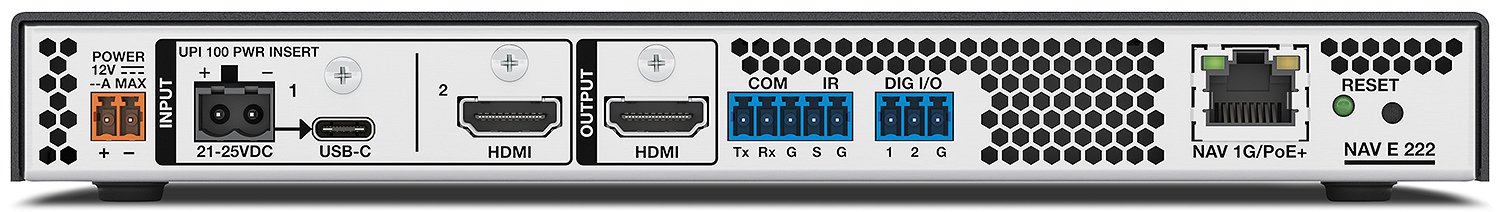

| Inputs | One USB-C (DisplayPort Alt Mode, video and audio only) and one HDMI |
|---|
| Outputs | HDMI loop-through output |
|---|
| Video | Up to 4K/60, 4:4:4 chroma, visually lossless (PURE3 codec) |
|---|
| Bit rate | Adjustable, 250 to 900 Mbps |
|---|
| Audio | LPCM and AES67 over IP |
|---|
| Network | 1GbE (1000BASE-T), up to 100 m over CAT 5e, 6, 6a or 7 |
|---|
| Encryption | SRTP (AES-128) for video and audio, HDCP 1.4 and 2.3 |
|---|
| Power | PoE+ or 12 V DC local power |
|---|
| Dimensions | 25 x 222 x 152 mm (H x W x D), half rack width |
|---|
| Warranty | 3 years parts and labour |
|---|
Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.
What you need to know
- This is an encoder only. A compatible NAV decoder is needed to receive the stream, and Extron shows the NAV SD 121 Pro as an example.
- A 1 Gbps network is needed, shown with a 1G PoE+ switch. Power can be PoE+ or 12 V DC.
- The USB-C input carries video and audio only. An optional Extron UPI 100 power inserter can supply up to 100 W to a connected USB-C device.
- Streams are managed through the Web UI, SIS commands or the NAVigator Pro AV over IP system manager.
Frequently asked questions
What inputs does the Extron NAV E 222 have?
One USB-C input using DisplayPort Alt Mode and one HDMI input, with an HDMI loop-through output. Switching between inputs can be automatic or manual.
What resolution does it support?
Extron lists visually lossless video up to 4K/60 with 4:4:4 chroma sampling, using an adjustable bit rate of 250 to 900 Mbps.
How far can it be run from the network switch?
Extron lists a maximum distance of 100 m over CAT 5e, 6, 6a or 7 cable.
Can it charge a laptop over USB-C?
Not by itself. Extron lists the optional UPI 100 power inserter, which can supply up to 100 W to a connected USB-C device.
