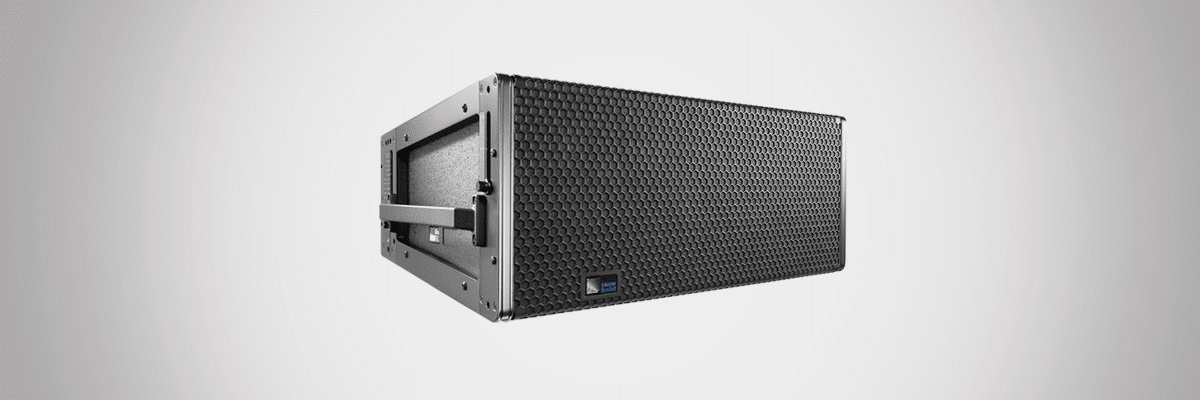

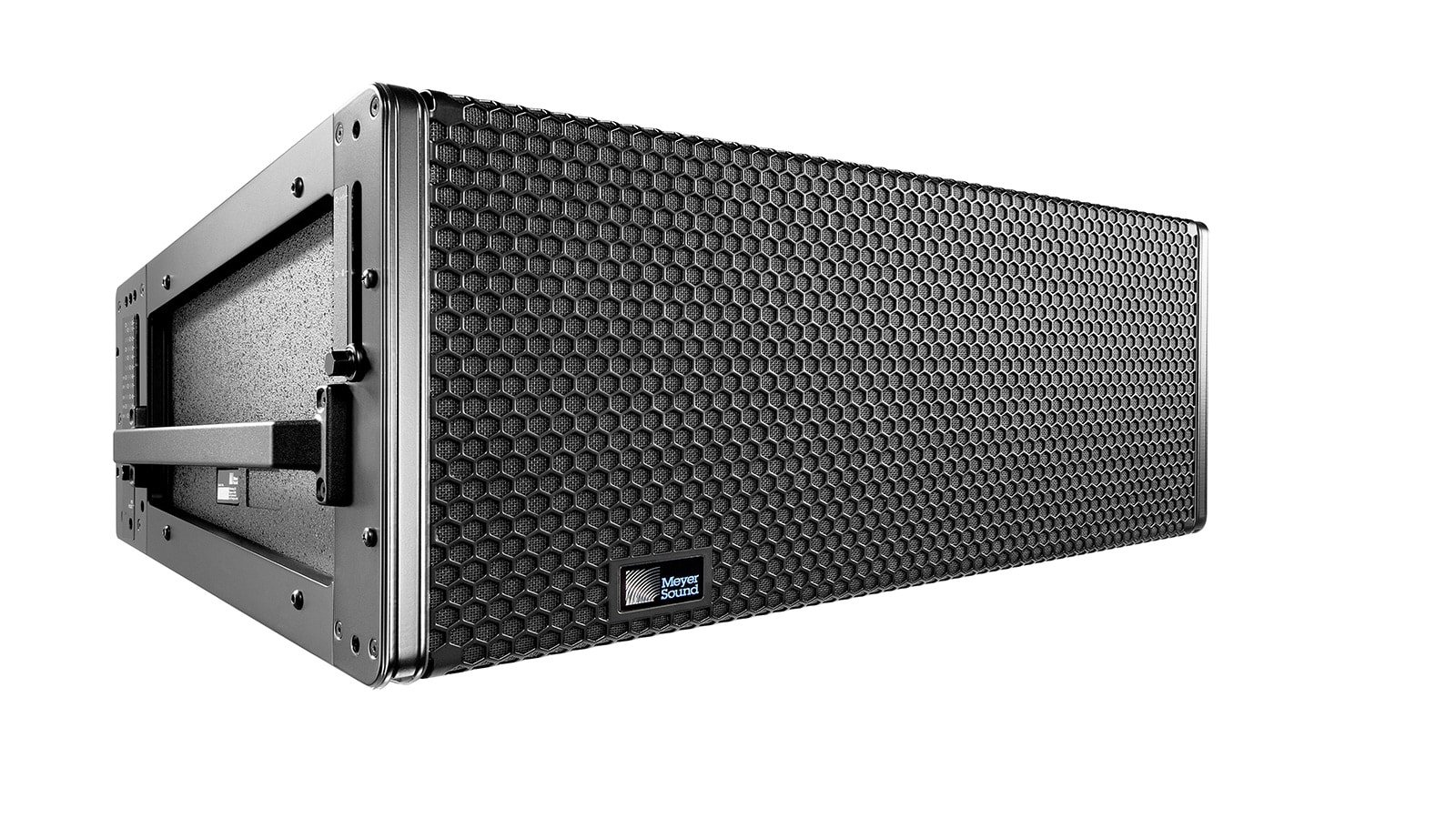

Meyer Sound LEOPARD Line Array System

From £50,000.00 — request a quote

Key features

Self-powered with integrated Class D amplification and onboard DSP, no separate amp rack to specify
Compact member of Meyer Sound's LEO Family line arrays
Sized for churches, music halls and mid-size theatres
Meyer's LYON sits above LEOPARD in the same family for larger halls/concert-scale requirements
Shares the LFC subwoofer range (1100-LFC, 900-LFC, 750-LFC, VLFC) across the family
Used across classical, Broadway and corporate AV applications where low distortion matters more than raw touring-scale output

Flagship line array system for large theatres, concert halls and performing arts centres. Guide price shown is a starting point only, final quotation follows a free site survey.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Indicative pricing, final cost confirmed as part of your quote, based on quantity, site survey and exact specification.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

SKU: EIS-PRJ-THEATRE-MEYER-SOUN-LEO-FAMILY-LINE-ARRAY Category: Line Array PA Systems Tags: add: LEOPARD, LFC, self-powered Brand: Meyer Sound

Specifications

Meyer Sound LEOPARD Line Array System specifications
Brand	Meyer Sound
Type	Self-powered line array loudspeaker
Amplification	3-channel, open-loop, Class D, 3900 W total peak output
Frequency range	55 Hz to 18 kHz
Maximum SPL	142 dB
Coverage	110 degrees horizontal (LEOPARD); 80 degrees horizontal (LEOPARD-M80)
Input	XLR 5-pin female with male loop output
Mains power	100 V to 240 V AC, 50 to 60 Hz
Dimensions	684 x 282 x 550 mm
Weight	34.0 kg
Compatible subwoofers	900-LFC and 1100-LFC

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

LEOPARD is self-powered, so each loudspeaker needs a mains supply and a balanced audio feed. A separate amplifier rack is not required.
Meyer Sound recommends the Galileo GALAXY processor for larger systems. LEOPARD can also be used in Native Mode without an external processor.
Flown or ground-stacked systems use Meyer Sound rigging and grid accessories, which are sold separately.
LEOPARD is available in two coverage versions, LEOPARD at 110 degrees and LEOPARD-M80 at 80 degrees horizontal, so the version needs to be confirmed when you request a quote.

Frequently asked questions

Does LEOPARD need external amplifiers?

No. It has a built-in 3-channel Class D amplifier, so it only needs a mains supply and an audio feed.

Which subwoofers can be used with LEOPARD?

Meyer Sound lists the 900-LFC for use with LEOPARD, including in the same flown array, and the 1100-LFC as compatible.

What mains power does a LEOPARD cabinet need?

It uses a powerCON 20 input with automatic voltage selection from 90 V to 265 V AC, with a safety-rated range of 100 V to 240 V AC, 50 to 60 Hz.

Description

Efficient IS supplies the Meyer Sound LEOPARD Line Array System to UK organisations, with delivery, survey and installation available on request.

Meyer Sound’s LEOPARD is the compact member of their LEO Family line arrays, self-powered with integrated Class D amplification and onboard DSP, so there is no separate amp rack to spec.Specifications:

Brand: Meyer Sound
Family: LEO Family line arrays, compact member
Power: Self-powered, integrated Class D amplification, onboard DSP
Sibling: LYON (larger halls and concert-scale requirements), same family
Subwoofer range: LFC (1100-LFC, 900-LFC, 750-LFC, VLFC)
Suited to: Churches, music halls, mid-size theatres
Applications: Classical, Broadway and corporate AV, where self-powered simplicity and low distortion matter more than raw touring-scale output

Buying the Meyer Sound LEOPARD Line Array System from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
