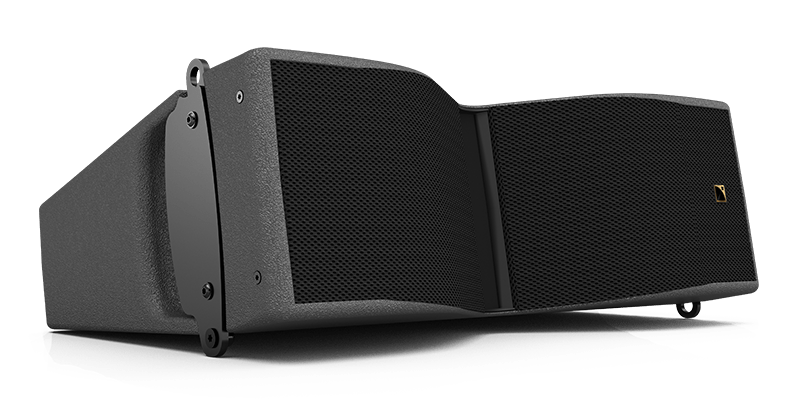

L-Acoustics Kiva II Line Array System
From £35,000.00 — request a quote
Key features
- Compact long-throw line array from L-Acoustics' K Series, below Kara II/K2 in scale
- Around 138dB max SPL with 100° horizontal coverage
- Runs on LA2Xi, LA4X, LA8 or LA12X amplified controllers
- Pairs with an SB15m (often flown inline) or KS21 (typically under-stage) subwoofer
- Under roughly 250kg rigging weight with variable curvature for flexible throw
- Built for full-range clarity at both low and high SPL in mid-size venues, not concert-level output
Compact-format line array system for theatres and mid-size performance venues. Guide price shown is a starting point only, final quotation follows a free site survey.
Fast UK deliveryMost in-stock items ship within a few working days.
Survey & installationAvailable on request, we'll quote it alongside the product.
Staff trainingHands-on training available on projects that include it.
Ongoing supportMaintenance and care plans available, see Support & Maintenance.
Indicative pricing, final cost confirmed as part of your quote, based on quantity, site survey and exact specification.
Specifications
L-Acoustics Kiva II Line Array System specifications| Brand | L-Acoustics |
|---|
| Type | 2-way passive line source, dual 6.5 inch |
|---|
| Transducers | 2 x 6.5 inch neodymium LF, 1 x 1.75 inch neodymium HF compression driver |
|---|
| Usable bandwidth (minus 10 dB) | 70 Hz to 20 kHz |
|---|
| Maximum SPL | 138 dB with LA2Xi (bridge mode), LA4X, LA8 or LA12X; 133 dB with LA2Xi |
|---|
| Horizontal coverage | 100° symmetrical |
|---|
| Vertical coverage | 15° for a single element, varies with array size and curvature |
|---|
| Nominal impedance | 16 ohm |
|---|
| Connectors | 2 x 4-point speakON |
|---|
| Rigging | Flush-fitting 3-point system, inter-enclosure angles 0° to 15° |
|---|
| Dimensions | 525 x 202 x 357 mm |
|---|
| Weight | 14 kg |
|---|
| IP rating | IP55 |
|---|
Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.
What you need to know
- Kiva II enclosures are passive and are driven by L-Acoustics amplified controllers: LA2Xi, LA4X, LA8 or LA12X.

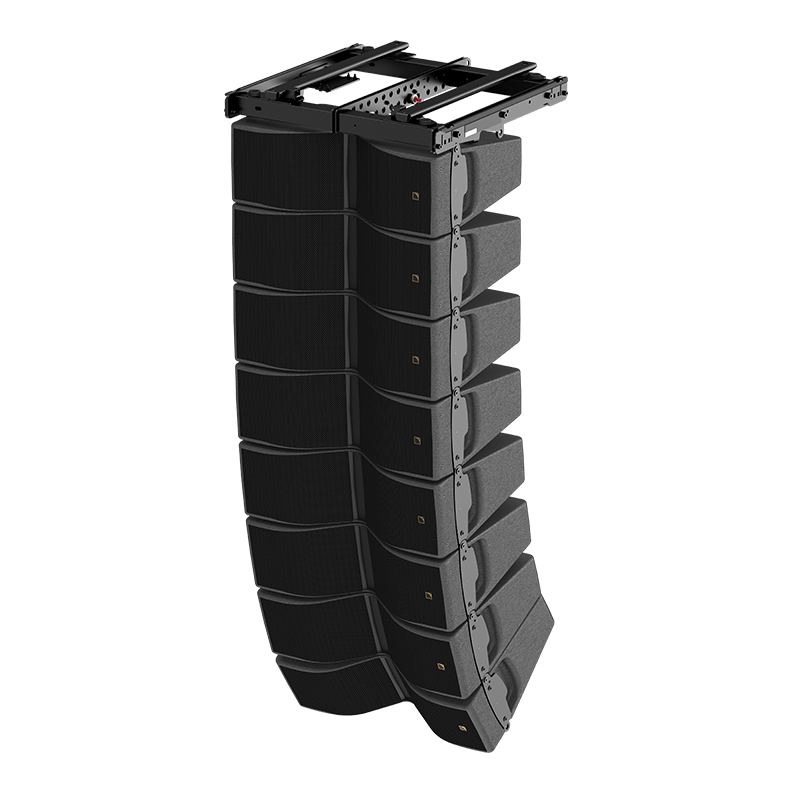

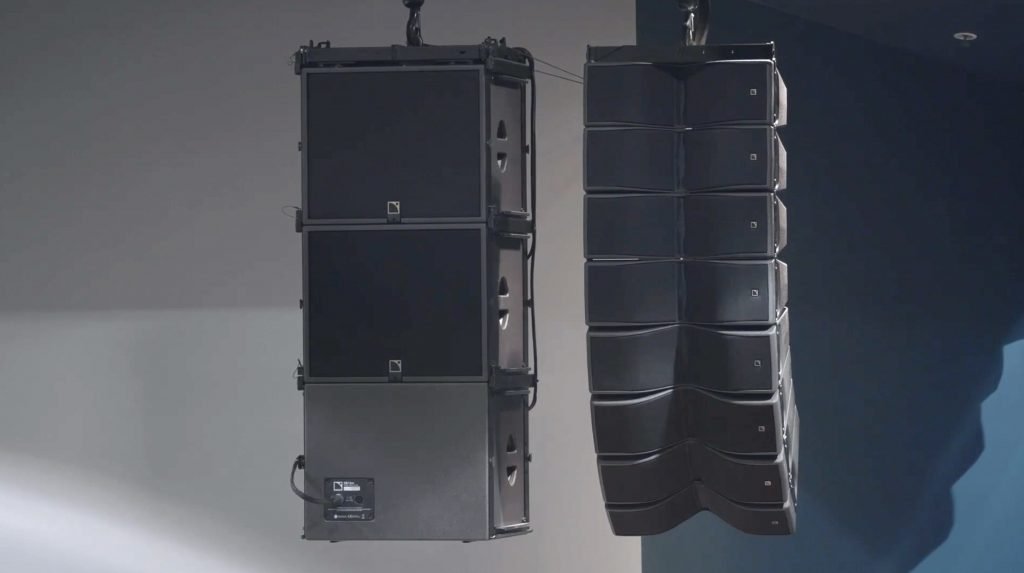

- The SB15m subwoofer can be flown or stacked with Kiva II using the KIBU-SB rigging frame. Subwoofers, controllers and rigging are separate items.
- Vertical coverage depends on the number of enclosures and the array curvature, so the array layout is set during system design.
Frequently asked questions
Which controllers drive the Kiva II?
L-Acoustics lists the LA2Xi, LA4X, LA8 and LA12X. Maximum SPL is 138 dB with the LA2Xi in bridge mode, LA4X, LA8 or LA12X, and 133 dB with the LA2Xi.
What coverage does a Kiva II array give?
Each enclosure has 100° symmetrical horizontal coverage. Vertical coverage is 15° for a single element and changes with the number of elements and the curvature, using inter-enclosure angles up to 15°.
Can a site survey and installation be arranged?
Yes. A site survey and installation can be arranged, and the array size, controllers and subwoofers are specified after the survey.
