d&b audiotechnik Y-Series Line Array System

d&b audiotechnik Y-Series Line Array System, view 2

d&b audiotechnik Y-Series Line Array System

From £30,000.00 — request a quote

Key features

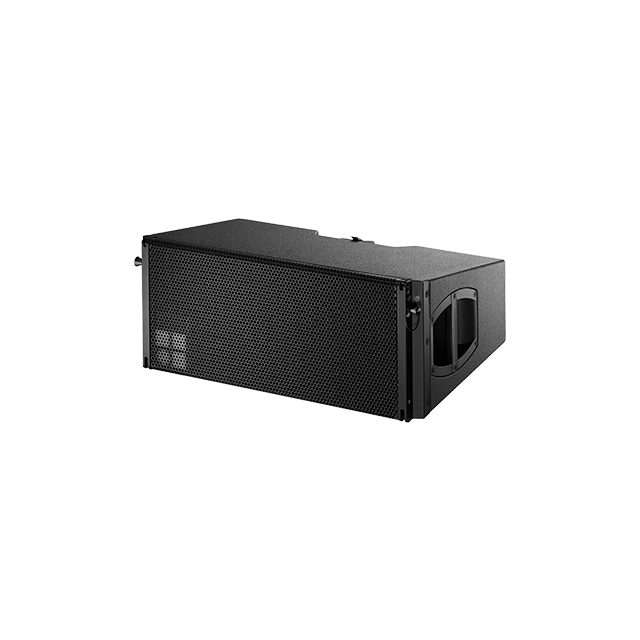

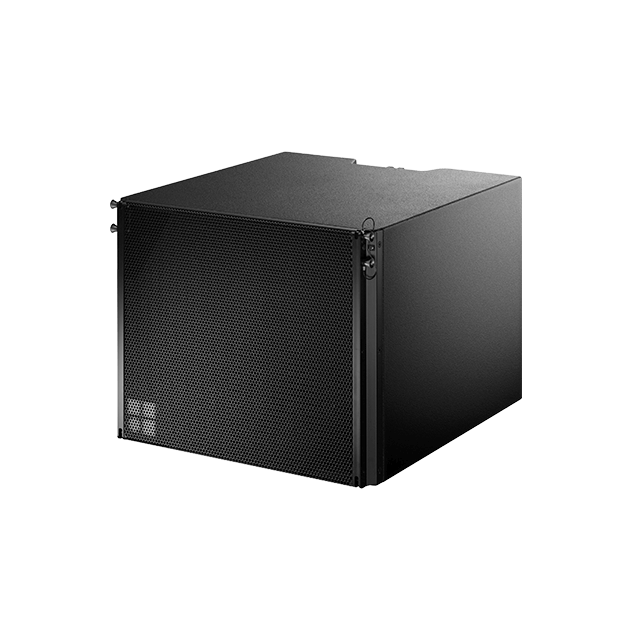

Y8 or Y10P line array elements paired with a Y-SUB cardioid subwoofer
Driven by d&b D-Series amplifiers (D80 typically, scaling to D40/D90 by system size), passive, amp-rack-driven rather than self-powered
Y8 reaches 139dB max SPL at 80° horizontal coverage
Vertical splay adjusts 0 to 14° per cabinet to curve the array to the room
d&b's mid-size "workhorse" line, between the compact V-Series and the larger arena-scale J-Series

Professional touring-grade line array system for permanent theatre installation. Guide price shown is a starting point only, final quotation follows a free site survey.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Indicative pricing, final cost confirmed as part of your quote, based on quantity, site survey and exact specification.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

SKU: EIS-PRJ-THEATRE-D-B-AUDIOT-LINE-ARRAY Category: Line Array PA Systems Tags: d&b audiotechnik, line array installation, theatre sound system Brand: d&b audiotechnik

Description

Efficient IS supplies the d&b audiotechnik Y-Series Line Array System to UK organisations, with delivery, survey and installation available on request.

d&b’s Y-Series pairs Y8 or Y10P line array elements with a Y-SUB cardioid subwoofer, driven by d&b’s D-Series amplifiers. It is passive and amp-rack-driven rather than self-powered, so the amp rack is part of the spec, not an optional extra.Specifications:

Brand: d&b audiotechnik
Line array elements: Y8 or Y10P
Subwoofer: Y-SUB cardioid
Amplifiers: D-Series (D80 typically, scaling to D40/D90 by system size)
SPL: Y8 reaches 139dB max, at 80° horizontal coverage
Vertical splay: Adjusts 0 to 14° per cabinet, to curve the array to the room
Positioning: d&b’s mid-size line, between the compact V-Series and the larger arena-scale J-Series
Suited to: Theatres, performing arts venues, halls

Buying the d&b audiotechnik Y-Series Line Array System from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
