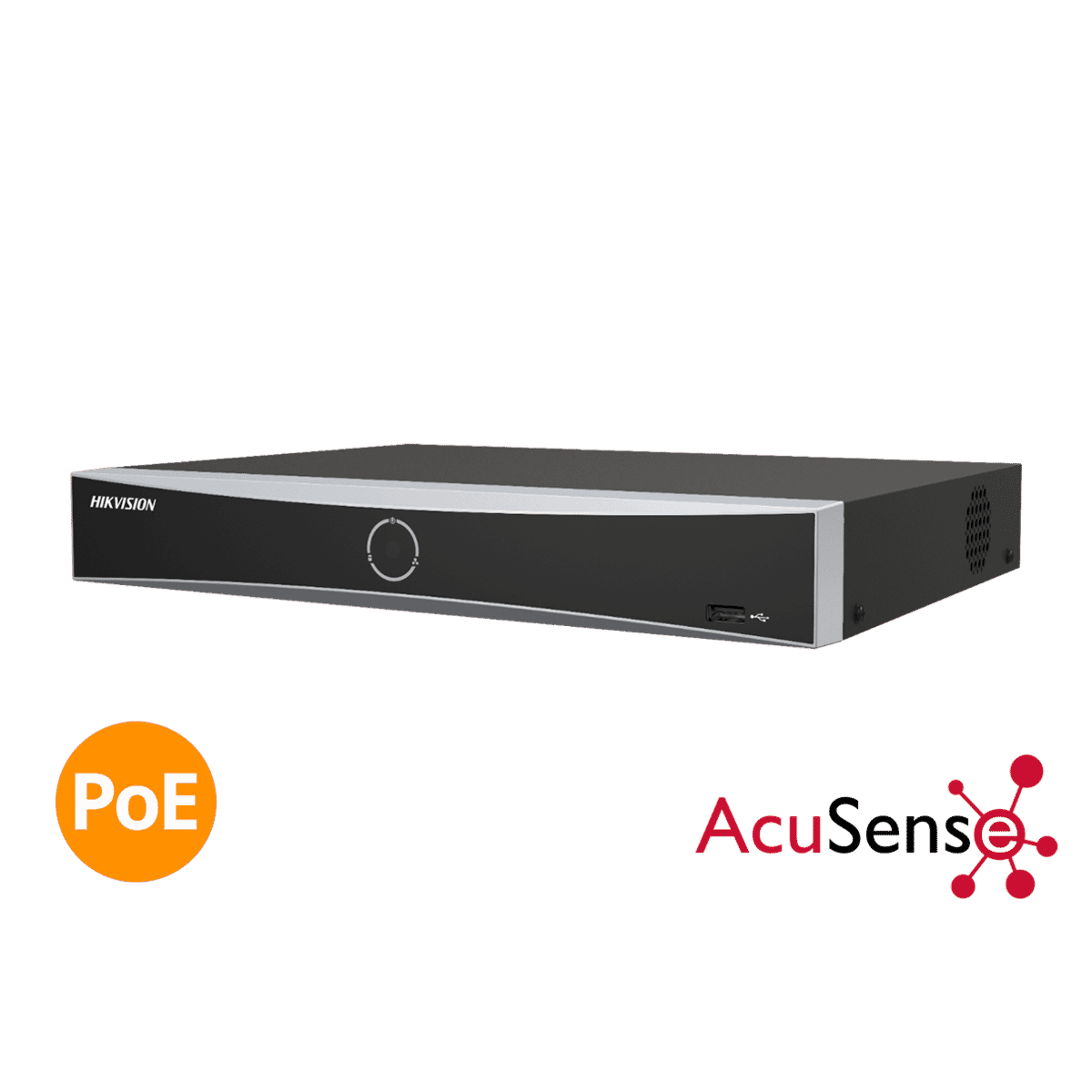

Hikvision DS-7604NXI-K1 4P 4 Channel 4K PoE NVR

Hikvision DS-7604NXI-K1/4P(D) 4 Channel 4K PoE NVR

Key features

4 channels: Records up to 4 IP cameras on one recorder.
4 built-in PoE ports: Cameras are powered and connected from the recorder itself.
4K recording: Supports high resolution cameras up to 4K.
K-series, 1U rack unit: A compact recorder that suits a comms cabinet.

A 4 channel K-series network video recorder with 4 built-in PoE ports, so up to four IP cameras connect and record from one compact 1U unit without a separate PoE switch.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Pricing for this item hasn't been confirmed yet. Tell us what you need below and we'll come back to you with a quote.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)

SKU: EIS-PRJ-CCTV-HIK-DS-7604NXI-K1-4P Category: CCTV Brand: Hikvision

Specifications

Hikvision DS-7604NXI-K1/4P(D) 4 Channel 4K PoE NVR specifications
Brand	Hikvision
Manufacturer part number	DS-7604NXI-K1/4P(D)
IP camera channels	4
Incoming bandwidth	40 Mbps (outgoing 80 Mbps)
Max recording resolution	12 MP per camera
PoE ports	4 x RJ-45, 10/100 Mbps, IEEE 802.3af/at
PoE power	Up to 50 W
Hard drive bays	1 x SATA, up to 16 TB per drive
Video outputs	1 x HDMI up to 4K (3840 x 2160) at 30 Hz, 1 x VGA up to 1920 x 1080 at 60 Hz
Network interface	1 x RJ-45 10/100/1000 Mbps
Analytics	AcuSense; facial recognition, perimeter protection, motion detection 2.0
Operating temperature	-10 °C to 55 °C
Power supply	48 VDC, 1.35 A; 10 W or less without HDD and PoE off
Dimensions and weight	320 x 240 x 48 mm; 1 kg or less without HDD

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

The datasheet lists one SATA bay supporting a drive of up to 16 TB. No drive is listed as supplied, so a hard drive needs to be bought separately.
The four PoE ports follow IEEE 802.3af/at at 10/100 Mbps, with PoE power listed as up to 50 W. Add up the draw of your cameras before connecting them.
Recording is up to 12 MP per camera with 40 Mbps incoming bandwidth, so total camera bitrate across the four channels should stay within that figure.

Frequently asked questions

Does the DS-7604NXI-K1/4P(D) come with a hard drive?

The datasheet lists one SATA interface that supports a hard drive of up to 16 TB. No drive is listed as supplied, so you need to buy and fit a suitable drive yourself before the recorder can store video.

How many cameras can it power and record?

It records up to 4 IP cameras. The 4 built-in PoE ports follow IEEE 802.3af/at and the datasheet lists PoE power of up to 50 W, so cameras with a higher combined draw need a separate PoE source.

What is the highest camera resolution it can record?

The datasheet lists recording of up to 12 MP per camera, with incoming bandwidth of 40 Mbps. The HDMI output reaches 4K (3840 x 2160) at 30 Hz, and the VGA output reaches 1920 x 1080 at 60 Hz.

Description

Efficient IS supplies the Hikvision DS-7604NXI-K1 4P 4 Channel 4K PoE NVR to UK organisations, with delivery, survey and installation available on request.

A 4 channel K-series network video recorder with 4 built-in PoE ports, so up to four IP cameras connect and record from one compact 1U unit without a separate PoE switch.Hard drives are sized to your camera count and retention period as part of the quote, and our team can supply, install and commission the recorder alongside the cameras. Indicative pricing is confirmed as part of your quote.Specifications:

Brand: Hikvision
Type: K-series network video recorder, AcuSense camera support
Channels: 4
Built-in PoE ports: 4
Resolution: 4K
Rack height: 1U
Storage: Surveillance hard drives sized to camera count and retention period, as part of the quote

Buying the Hikvision DS-7604NXI-K1 4P 4 Channel 4K PoE NVR from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
