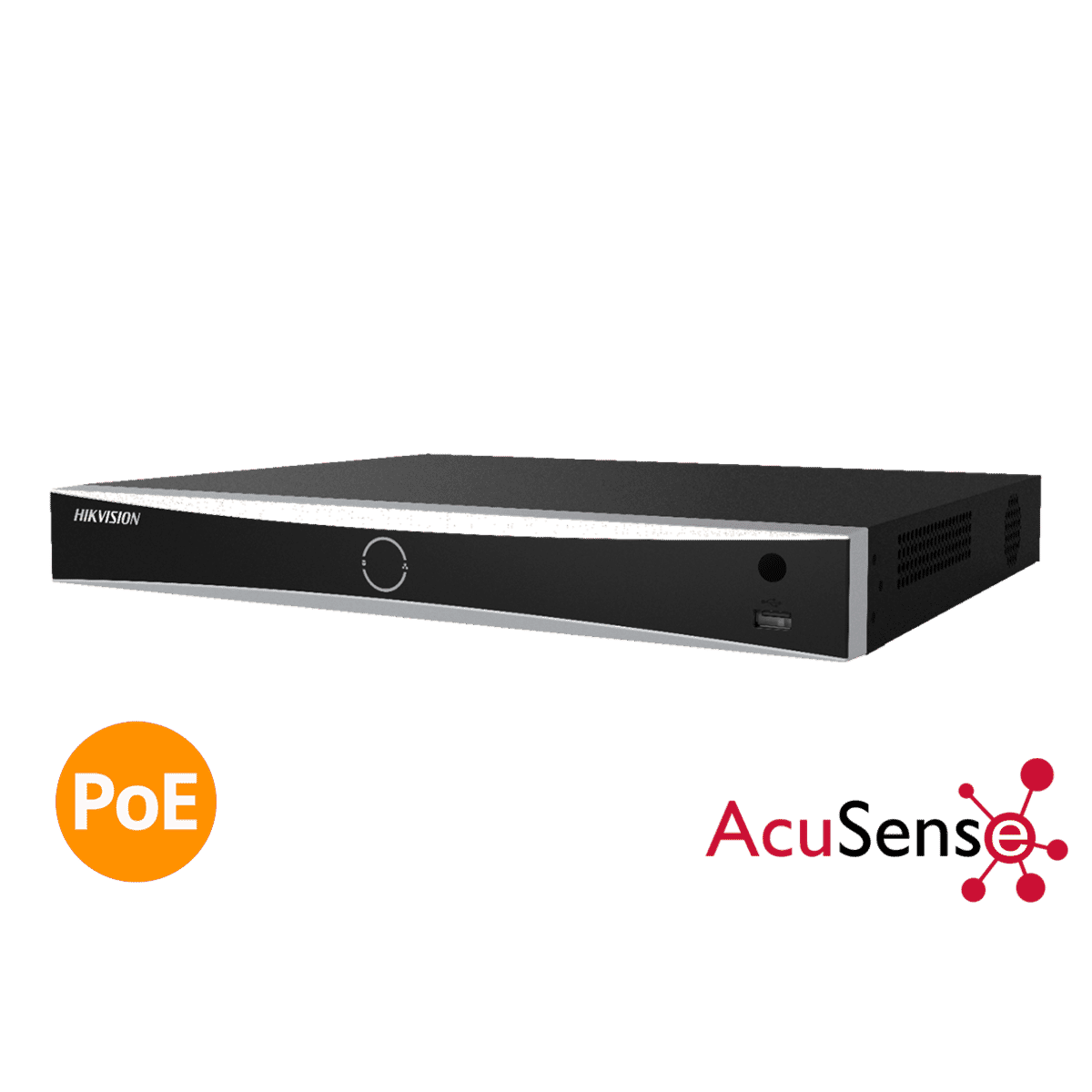

Hikvision DS-7608NXI-K1 8P 8 Channel 4K PoE NVR

Hikvision DS-7608NXI-K1/8P(D) 8 Channel 4K PoE NVR

Key features

8 channels: Records up to 8 IP cameras on one recorder.
8 built-in PoE ports: Cameras are powered and connected from the recorder itself.
4K recording: Supports high resolution cameras up to 4K.
K-series, 1U rack unit: A compact recorder that suits a comms cabinet.

An 8 channel K-series network video recorder with 8 built-in PoE ports, so up to eight IP cameras connect and record from one 1U unit without a separate PoE switch.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Pricing for this item hasn't been confirmed yet. Tell us what you need below and we'll come back to you with a quote.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)

SKU: EIS-PRJ-CCTV-HIK-DS-7608NXI-K1-8P Category: CCTV Brand: Hikvision

Specifications

Hikvision DS-7608NXI-K1/8P(D) 8 Channel 4K PoE NVR specifications
Brand	Hikvision
Manufacturer part number	DS-7608NXI-K1/8P(D)
IP camera channels	8
Incoming bandwidth	80 Mbps (outgoing 80 Mbps)
Max recording resolution	12 MP per camera
PoE ports	8 x RJ-45, 10/100 Mbps, IEEE 802.3af/at
PoE power	Up to 75 W
Hard drive bays	1 x SATA bay
Video outputs	1 x HDMI up to 4K (3840 x 2160) at 30 Hz, 1 x VGA up to 1920 x 1080
Network interface	1 x RJ-45 10/100/1000 Mbps
Analytics	AcuSense human and vehicle filtering; motion detection 2.0; facial recognition
Operating temperature	-10 °C to 55 °C
Power supply	48 VDC, 1.875 A; 10 W or less without HDD
Dimensions and weight	320 x 240 x 48 mm; 1 kg or less without HDD

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

The recorder has one SATA bay and no drive is supplied, so a hard drive needs to be bought separately. Check the maximum drive size against the current Hikvision datasheet for your exact variant.
The eight PoE ports follow IEEE 802.3af/at at 10/100 Mbps, with PoE power listed as up to 75 W. Check the combined draw of your cameras against that figure.
Incoming bandwidth is 80 Mbps and recording is up to 12 MP per camera, so total camera bitrate across all eight channels should stay within that limit.

Frequently asked questions

How much PoE power is available for cameras?

There are 8 PoE ports following IEEE 802.3af/at, with PoE power listed as up to 75 W. If your cameras draw more than that combined, they will need a separate PoE source such as a PoE switch.

What is the maximum bandwidth and recording resolution?

Incoming bandwidth is 80 Mbps across all channels, and each camera can be recorded at up to 12 MP. Video can be shown on the HDMI output at up to 4K (3840 x 2160) or on the VGA output.

Description

Efficient IS supplies the Hikvision DS-7608NXI-K1 8P 8 Channel 4K PoE NVR to UK organisations, with delivery, survey and installation available on request.

An 8 channel K-series network video recorder with 8 built-in PoE ports, so up to eight IP cameras connect and record from one 1U unit without a separate PoE switch.Hard drives are sized to your camera count and retention period as part of the quote, and our team can supply, install and commission the recorder alongside the cameras. Indicative pricing is confirmed as part of your quote.Specifications:

Brand: Hikvision
Type: K-series network video recorder, AcuSense camera support
Channels: 8
Built-in PoE ports: 8
Resolution: 4K
Rack height: 1U
Storage: Surveillance hard drives sized to camera count and retention period, as part of the quote

Buying the Hikvision DS-7608NXI-K1 8P 8 Channel 4K PoE NVR from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
