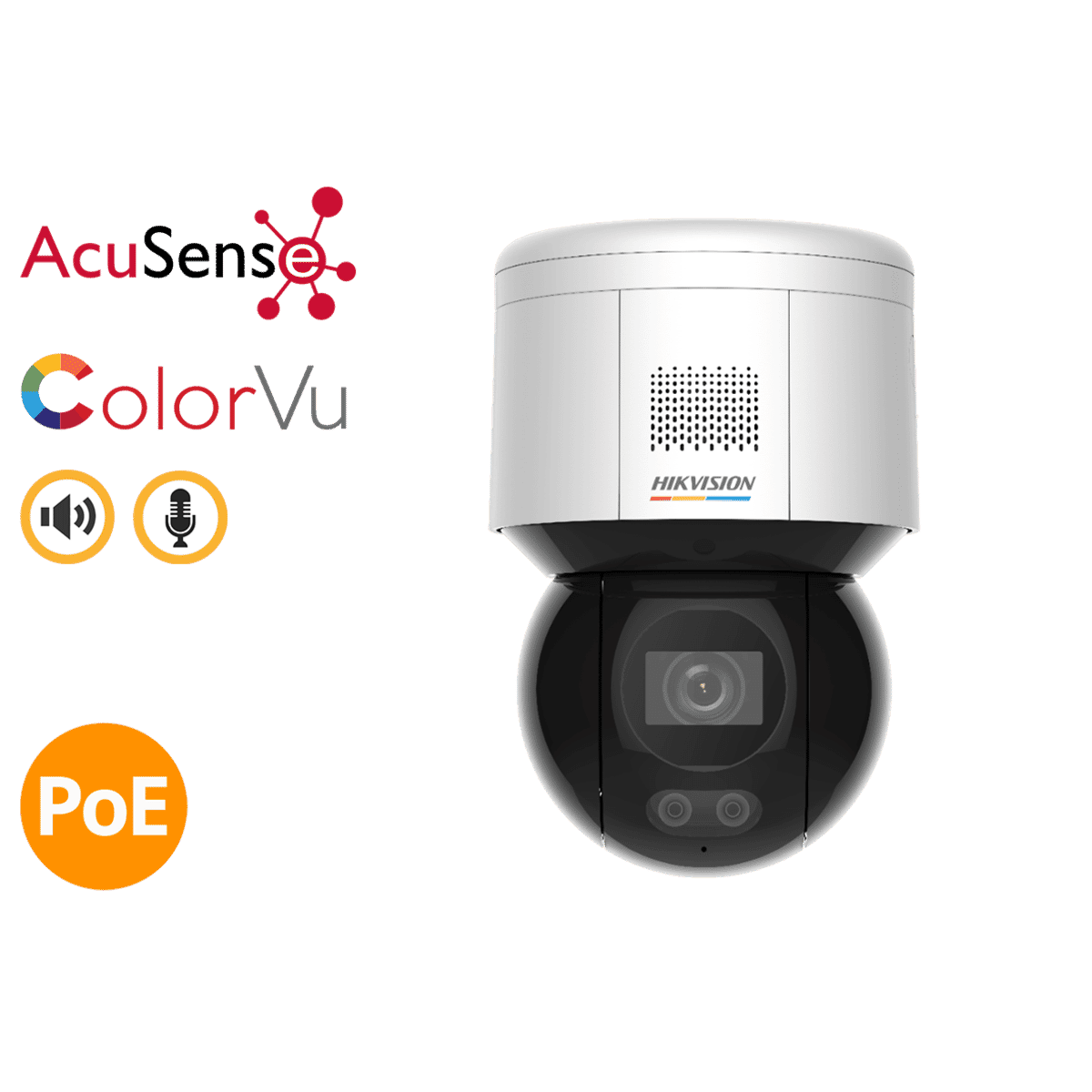

Hikvision DS-2DE3A400BW-DE 4MP ColorVu PT Dome Camera

Key features

Pan and tilt: Covers more of a small area than a fixed camera.
ColorVu night view: White light up to 30 m for full colour at night, with no infrared.
AcuSense detection: Classifies people and vehicles to reduce false alerts.
Wide fixed lens: 4 mm lens with an 88.7 degree horizontal view.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Pricing for this item hasn't been confirmed yet. Tell us what you need below and we'll come back to you with a quote.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)

SKU: EIS-PRJ-CCTV-HIK-DS-2DE3A400BW-DE Category: CCTV Brand: Hikvision

Specifications

Hikvision DS-2DE3A400BW-DE 4MP ColorVu PT Dome Camera specifications
Brand	Hikvision
Manufacturer part number	DS-2DE3A400BW-DE
Resolution	4 MP, 2560 x 1440
Lens	Fixed 4 mm, F1.0
Field of view (horizontal)	88.7°
White light range	Up to 30 m
Min. illumination	0.0005 Lux colour, 0 Lux with white light
WDR	120 dB
Pan / tilt	Pan 350°, tilt 0° to 90°
Ingress protection	IP66
Power	PoE 802.3at, or 12 VDC / 42.5 to 57 VDC
Operating temperature	-30 °C to 65 °C
Video compression	H.265+, H.265, H.264+, H.264
Audio	Built-in microphone and speaker, line in/out

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

Powers over PoE to IEEE 802.3at (PoE+), or 12 VDC at 3.33 A, or 42.5 to 57 VDC at 0.6 A. Maximum 14 W including 4 W for the white light.
Pan and tilt only (350° pan, 0° to 90° tilt) with 16x digital zoom and a fixed 4 mm lens. It does not have optical zoom.
Has 1 alarm input, 1 alarm output, RS-485 and audio line in/out. Mounting accessories are not listed in the datasheet.

Frequently asked questions

Is this a full PTZ camera?

No. It is a pan and tilt dome with a fixed 4 mm lens. Pan is 350°, tilt is 0° to 90°, and zoom is 16x digital only, so there is no optical zoom.

Does it have two-way audio?

The datasheet lists a built-in microphone and speaker, plus one audio line in and one line out. Supported compression includes G.711, G.722.1, G.726, MP2L2, AAC and PCM, with environment noise filtering.

What PoE does it need?

It lists PoE to IEEE 802.3at, with maximum power of 14 W including up to 4 W for the white light. It can alternatively run from a 12 VDC supply at 3.33 A.

Description

Efficient IS supplies the Hikvision DS-2DE3A400BW-DE 4MP ColorVu PT Dome Camera to UK organisations, with delivery, survey and installation available on request.

A compact 4MP pan and tilt dome camera with ColorVu white-light illumination for full colour night views, suited to small forecourts and entrances where one camera needs to cover more than a fixed view allows.Our team can survey the site, supply, install and commission the camera, and advise on mounting, power and how it sits alongside fixed cameras. Indicative pricing is confirmed as part of your quote.Specifications:

Brand: Hikvision
Type: Compact pan and tilt dome network camera
Resolution: 4MP (up to 2560 x 1440)
Lens: 4 mm fixed, F1.0, 88.7 degree horizontal field of view
Pan and tilt: Pan 350 degrees, tilt 0 to 90 degrees
Night view: ColorVu white light up to 30 m, no infrared
Low light: 0.0005 lux in colour
Analytics: AcuSense
Version: Current stock may be the (F1)(T5) version, confirmed at quote

Buying the Hikvision DS-2DE3A400BW-DE 4MP ColorVu PT Dome Camera from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
