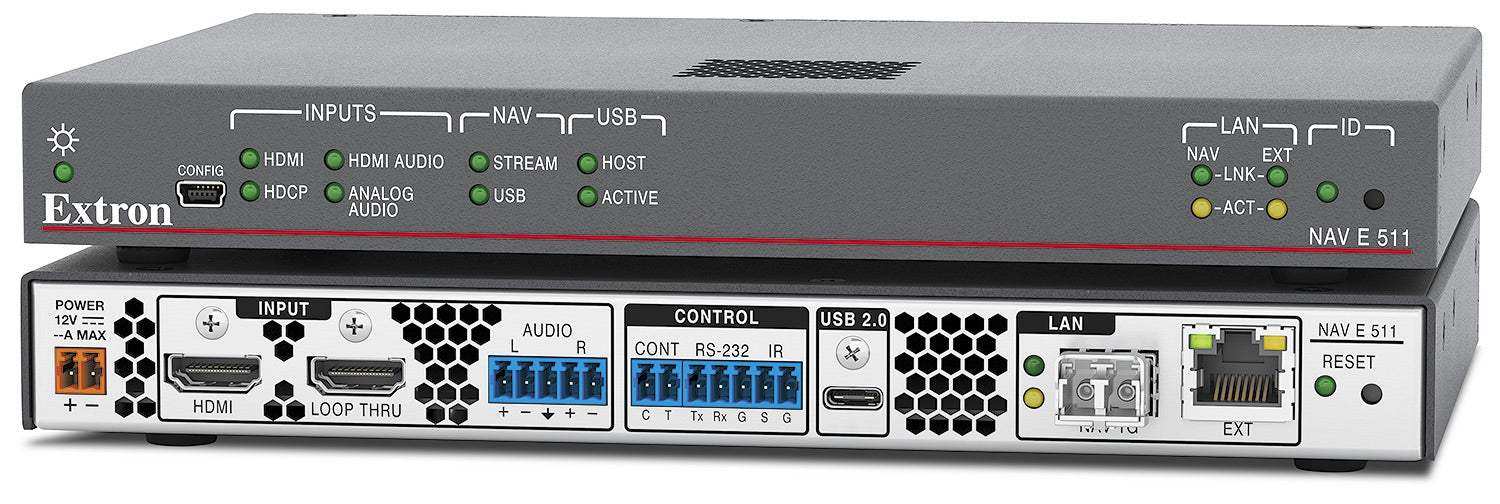

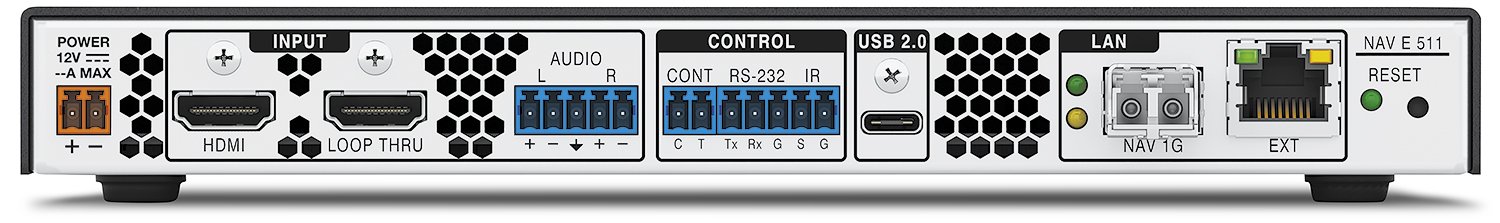

Extron NAV E511 1G Fiber AV-over-IP Encoder

Extron NAV E511 1G Fiber AV-over-IP Encoder, view 2

Extron NAV E511 1G Fiber AV-over-IP Encoder

Key features

1G fibre encoder: multimode (up to 550m) or singlemode (up to 10km) LC/LC fibre variants
Distributes HDMI (with loop-through), embedded audio, USB 2.0 and Ethernet expansion over the fibre link
Streams up to 4K60 4:4:4 with HDCP 2.3, adjustable bitrate 150-900 Mbps
Compatible with both 1Gbps and 10Gbps NAV decoders

1G fibre Pro AV over IP encoder distributing HDMI, Ethernet and USB over fibre network infrastructure.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Indicative pricing, final cost confirmed as part of your quote, based on quantity, site survey and exact specification.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

SKU: EIS-AVI-EXTRON-NAV-511-AV-OVER-IP Category: AV-over-IP Tags: AV over IP, Extron NAV, fibre, video distribution Brand: Extron

Specifications

Extron NAV E511 1G Fiber AV-over-IP Encoder specifications
Brand	Extron
Type	NAV 1G fibre Pro AV over IP encoder
Video input	1 x HDMI, HDCP 2.3
Video output	1 x HDMI loop-through
Maximum resolution	4K at 60 Hz, 4:4:4
Codec	PURE3
Fibre link	1 Gbps SFP, multimode up to 550 m or singlemode up to 10 km
Ethernet extension	1 x RJ-45, 1000Base-T, up to 100 m
USB	1 x USB 2.0 Type-C host or device, 1 x USB mini-B for configuration
Audio	HDMI embedded or analogue stereo input, AES67 and NAV Audio streaming
Power	External 12 V DC supply, 100 V to 240 V AC, included
Operating temperature	0 °C to 40 °C

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

It is a fibre encoder. The fibre type must match the link, as multimode runs to 550 m and singlemode to 10 km. Multimode and singlemode versions exist, so confirm the version when you request a quote.
It is compatible with both 1 Gbps and 10 Gbps NAV decoders.
HDMI cable length on the input and loop-through should not exceed 3.6 m according to the manufacturer.
The manufacturer lists the power supply, ZipClip 400, captive screw connectors and rubber feet in the box.

Frequently asked questions

How far can it send signals over fibre?

The manufacturer lists up to 550 m on multimode fibre and up to 10 km on singlemode fibre.

Does it carry USB and Ethernet as well as video?

Yes. It carries HDMI, embedded audio, USB 2.0 and Ethernet expansion over the fibre link.

Is it compatible with 10 Gbps NAV decoders?

Yes. It is compatible with both 1 Gbps and 10 Gbps NAV decoders.

Description

Efficient IS supplies the Extron NAV E511 1G Fiber AV-over-IP Encoder to UK organisations, with delivery, survey and installation available on request.

The Extron NAV E511 is a 1G fibre Pro AV over IP encoder that distributes HDMI, Ethernet and USB signals over fibre network infrastructure, extending the NAV platform to longer-distance and fibre-backbone AV-over-IP deployments.Specifications:

Brand: Extron
Network: 1G fibre
Signals: HDMI, Ethernet and USB
Platform: NAV Pro AV over IP
Suited to: Longer-distance, fibre-backbone deployments

Buying the Extron NAV E511 1G Fiber AV-over-IP Encoder from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
