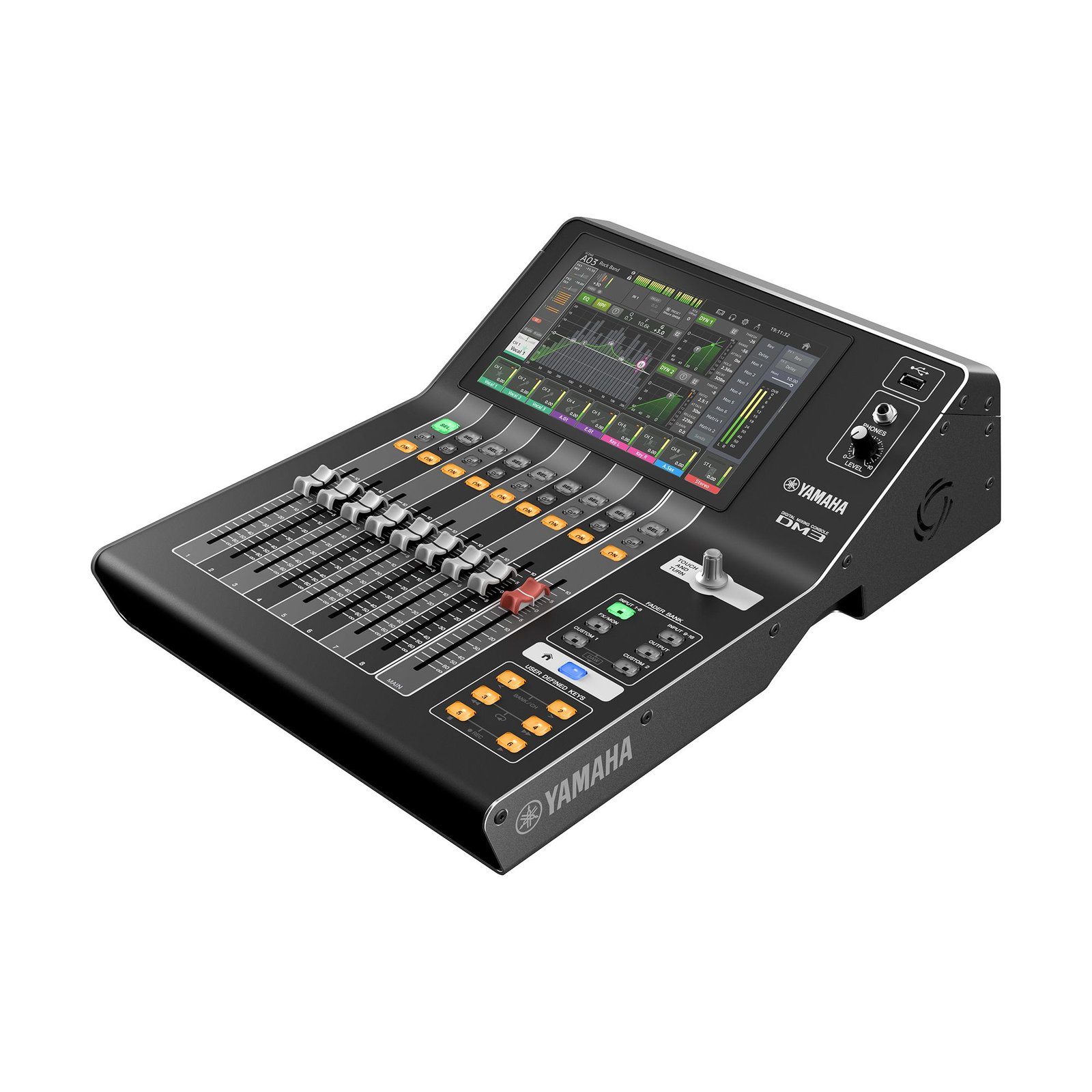

Yamaha DM3 Digital Mixing Console, view 2

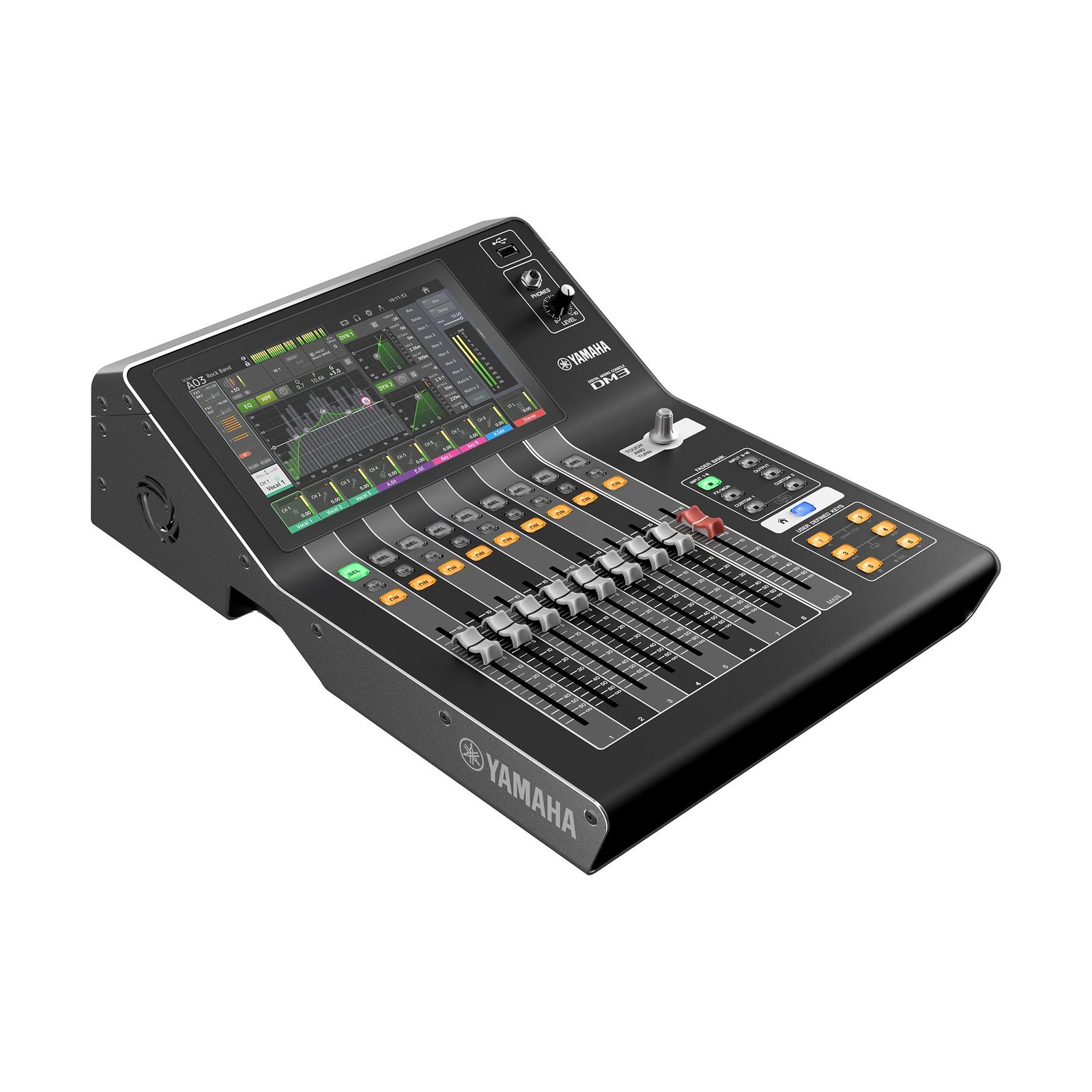

Yamaha DM3 Digital Mixing Console, view 3

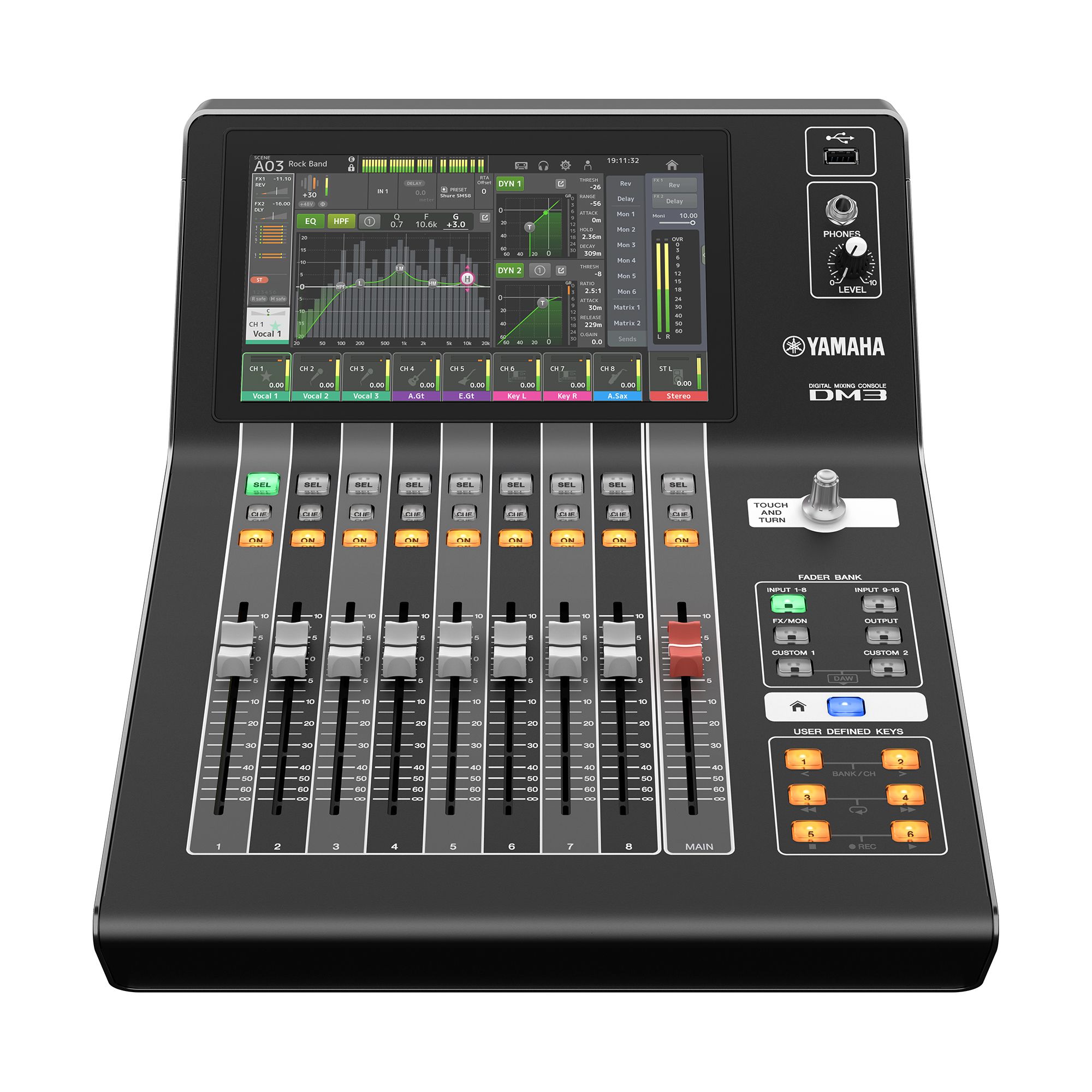

Yamaha DM3 Digital Mixing Console

From £2,900.00 — request a quote

Key features

22-channel input mixing (16 mono + 1 stereo + 2 FX returns) on an 8+1 fader control surface
Built-in Dante networking (DM3-D model): 16 inputs and 16 outputs over a single network cable
9-inch multi-touch screen for console control
18 built-in effects plus graphic EQ on Mix 1-6 and Stereo channels; 1 stereo, 6 mix, 2 FX and 2 matrix buses; up to 96kHz sample rate

Compact 22-channel Yamaha digital mixer with Dante networking and a 9-inch touchscreen.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Online ordering is not open yet. Tell us what you need below and we'll confirm availability, delivery and installation.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

SKU: EIS-AUD-YAMAHA-DM3-DIGITAL-MIXING Category: Mixing Consoles Tags: Dante audio, digital mixer, Yamaha DM3 Brand: Yamaha

Specifications

Yamaha DM3 Digital Mixing Console specifications
Brand	Yamaha
Input channels	16 mono, 1 stereo, 2 FX returns
Mic/line inputs	16 (12 XLR, 4 XLR/TRS combo)
Analogue outputs	8 XLR
Faders	8 plus 1
Screen	9 inch multi-touch
Dante	16 inputs, 16 outputs
USB audio	18 inputs, 18 outputs
Buses	1 stereo, 6 mix, 2 FX, 2 matrix
Sample rates	48 kHz and 96 kHz
Effects	18 effects
Dimensions	320 x 140 x 455 mm
Weight	6.5 kg

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

The DM3 is the Dante equipped model. The DM3 Standard has the same hardware without Dante.
The Dante Virtual Soundcard is not included.
Cubase AI and VST Rack Elements are bundled as downloads, using the access code supplied in the carton.
The RK-DM3 rack mount kit is an optional accessory.

Frequently asked questions

Can the DM3 record multitrack audio?

Yes. Yamaha states that both DM3 models support multitrack recording over USB to a host computer, and 2-track recording to a USB memory stick on the front panel.

Can it be set up or controlled remotely?

DM3 Editor lets you prepare settings on a PC in advance, and DM3 StageMix controls the console remotely from the stage.

What is the difference between the DM3 and the DM3 Standard?

The DM3 includes Dante, with 16 inputs and 16 outputs. The DM3 Standard has the same hardware and features without Dante.

Description

Efficient IS supplies the Yamaha DM3 Digital Mixing Console to UK organisations, with delivery, survey and installation available on request.

The Yamaha DM3 is a compact digital mixing console with built-in Dante audio networking, well suited to corporate AV installs, houses of worship and small venue live sound.Specifications:

Brand: Yamaha
Type: Compact digital mixing console
Networking: Built-in Dante audio networking (DM3-D model adds 16-in/16-out Dante over a single network cable)
Channels: 22-channel input mixing (16 mono, 1 stereo, 2 FX returns)
Control surface: 8+1 fader, 9 inch multi-touch screen
Effects: 18 built-in, plus graphic EQ on Mix 1 to 6 and Stereo channels
Buses: 1 stereo, 6 mix, 2 FX, 2 matrix
Sample rate: Up to 96kHz
Suited to: Corporate AV installs, houses of worship, small venue live sound

Buying the Yamaha DM3 Digital Mixing Console from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
