Sennheiser TeamConnect Ceiling 2 Multi-Room Rollout

Sennheiser TeamConnect Ceiling 2 Multi-Room Rollout, view 2

Sennheiser TeamConnect Ceiling 2 Multi-Room Rollout

From £8,000.00 — request a quote

Key features

Single ceiling unit covers up to 80m² of meeting space
Beamforming microphone array with onboard DSP
Networked over Dante for straightforward AV/IT integration
TruVoicelift in-room reinforcement processing built in
Zone exclusion and priority processing for cleaner pickup
Sennheiser's flagship TeamConnect model for large/extra-large rooms, Ceiling Medium and Ceiling M Plus cover mid-sized rooms in the same family

Beamforming ceiling microphone rollout for consistent meeting room audio across an office. Guide price shown is a starting point only, final quotation follows a free site survey.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Indicative pricing, final cost confirmed as part of your quote, based on quantity, site survey and exact specification.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

SKU: EIS-PRJ-OFFICE-SENNHEISER-TEAMCONNECT-CEILING Category: Ceiling Microphone Systems Tags: ceiling microphone, office AV refit, Sennheiser TeamConnect Brand: Sennheiser

Specifications

Sennheiser TeamConnect Ceiling 2 Multi-Room Rollout specifications
Brand	Sennheiser
Microphone	Sennheiser TeamConnect Ceiling 2 (TCC2) ceiling microphone array
Coverage	Up to 80 m² per unit
Pickup	Automatic dynamic beamforming, 28 electret condenser capsules

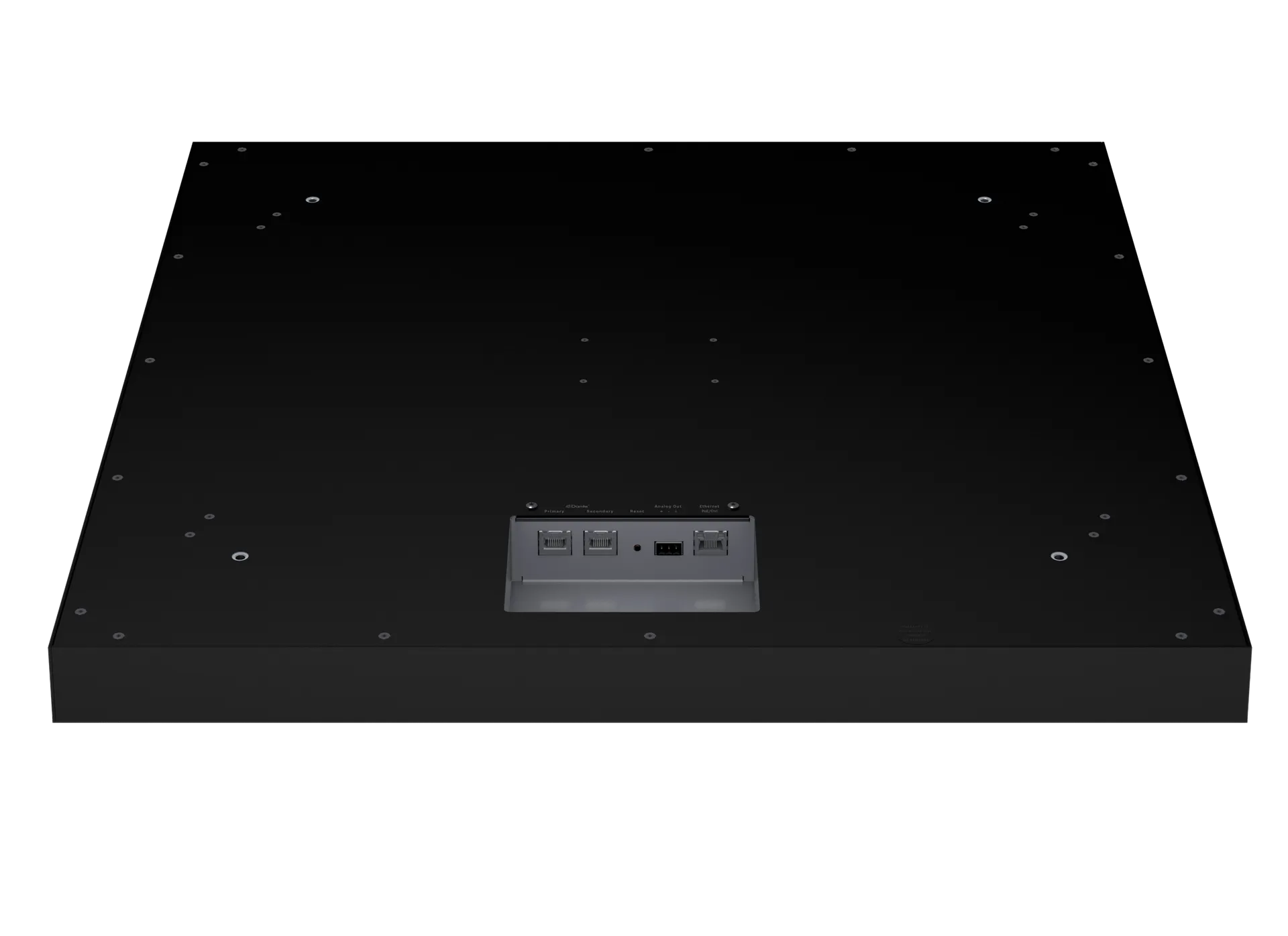

Connectivity	2 Dante RJ-45 ports, 1 RJ-45 for PoE and control, 1 analogue 3-pin output
Power	PoE IEEE 802.3af Class 3, or 44 V to 57 V DC, 8.8 W maximum
Dimensions	590 x 590 x 43 mm
Weight	5.67 kg
Operating temperature	0 °C to 40 °C

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

Sennheiser lists three mounting variants: flush in a 600 x 600 mm ceiling grid, directly below the ceiling, or suspended. Each uses a different accessory, and none is in the box.
The box contains the array, a 3-pin connector, self-adhesive rubber feet, two M4 eye bolts and the manual.
Power and control run over one network cable using PoE, and audio is available over Dante or the analogue output.

Frequently asked questions

How large a room does one TeamConnect Ceiling 2 cover?

Sennheiser lists coverage of up to 80 m² per unit. Larger or irregular rooms may need more than one.

How is it powered?

By PoE (IEEE 802.3af Class 3) or a 44 V to 57 V DC supply, with a maximum consumption of 8.8 W.

Do you survey rooms and install the units?

Survey, installation and commissioning are available on request, and are quoted with the equipment.

Description

Efficient IS supplies the Sennheiser TeamConnect Ceiling 2 Multi-Room Rollout to UK organisations, with delivery, survey and installation available on request.

The Sennheiser TeamConnect Ceiling 2 is a ceiling-mounted beamforming microphone array covering up to 80m² from a single unit, networked over Dante with onboard DSP.Specifications:

Brand: Sennheiser
Product: TeamConnect Ceiling 2, ceiling-mounted beamforming microphone array
Coverage: Up to 80m² from a single unit
Network: Dante, with onboard DSP including TruVoicelift and zone exclusion/priority processing
Positioning: Sennheiser’s flagship model for large and extra-large rooms
Family: Also includes Ceiling Medium and Ceiling M Plus, sized for mid-sized rooms, worth specifying alongside TCC2 rather than over-speccing every room to the large-room model

Buying the Sennheiser TeamConnect Ceiling 2 Multi-Room Rollout from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
