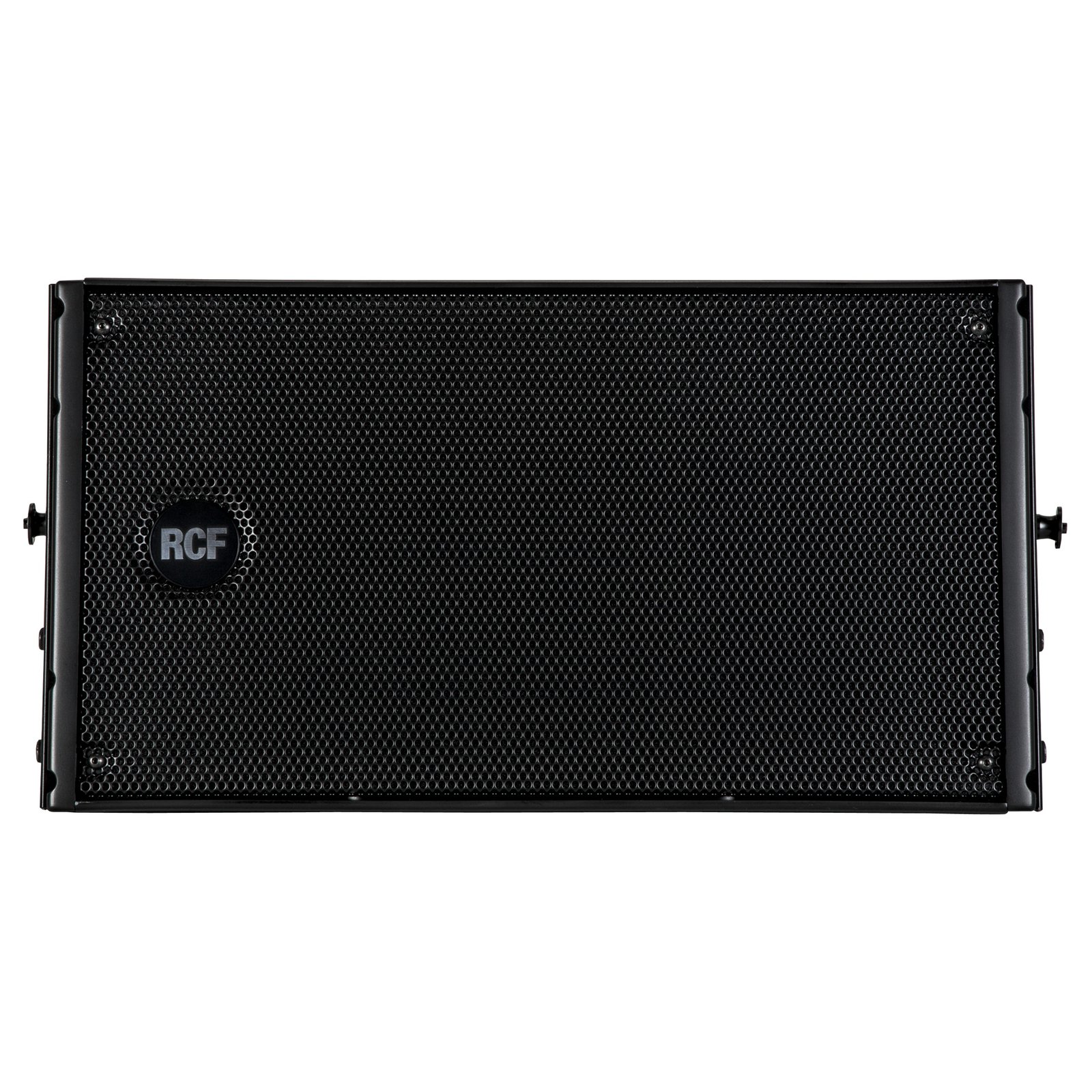

RCF HDL 10-A Line Array Hotel Ballroom System

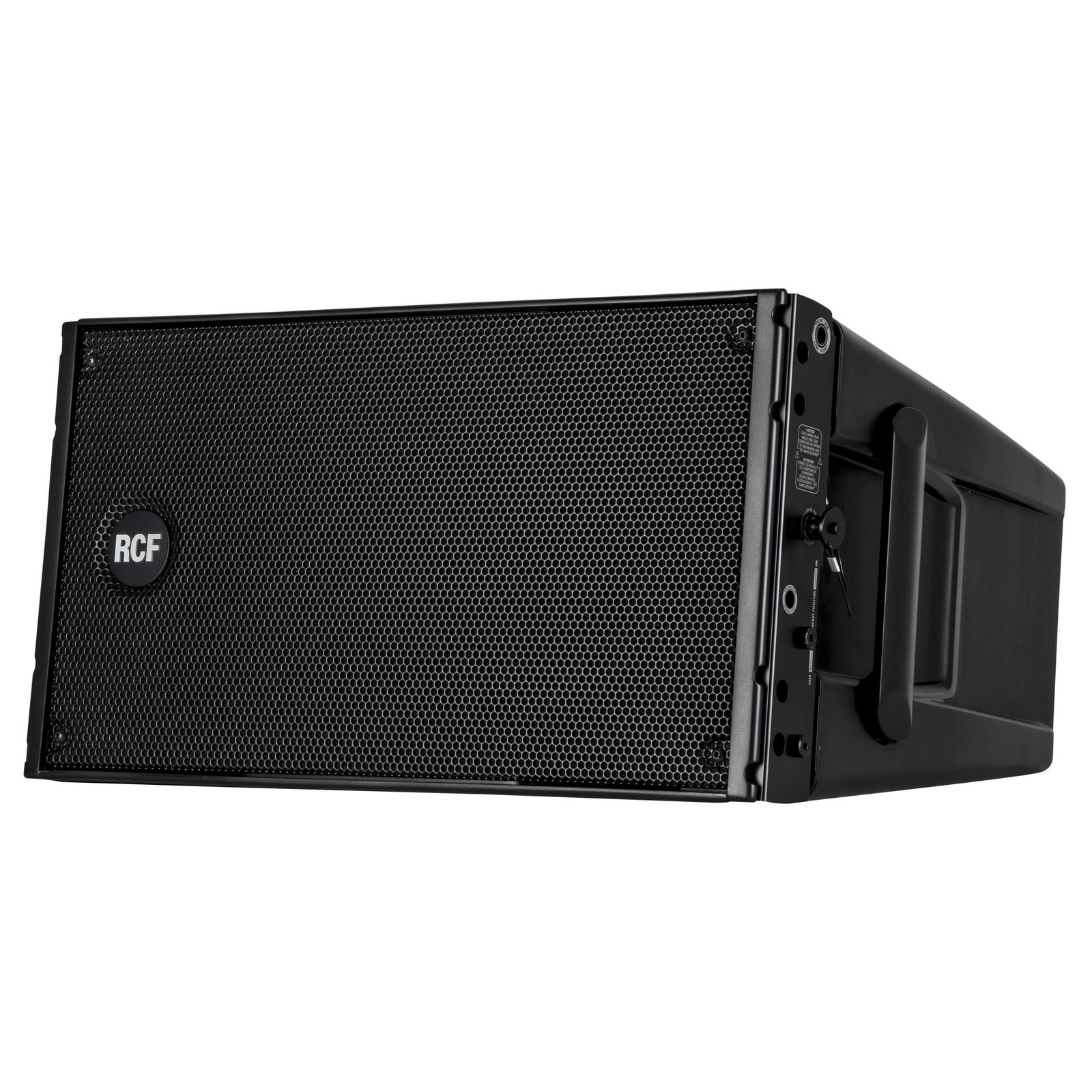

RCF HDL 10-A Line Array Hotel Ballroom System, view 2

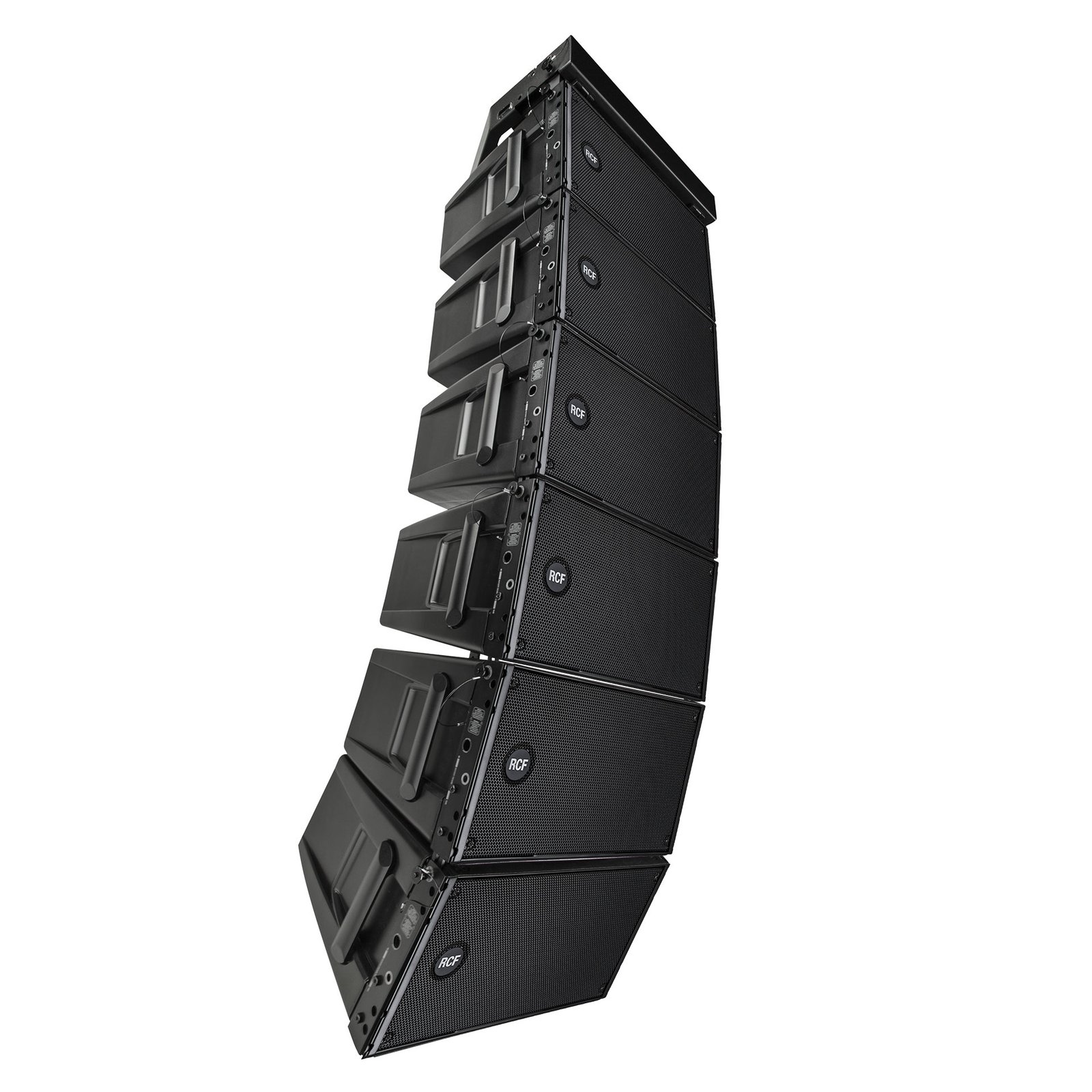

RCF HDL 10-A Line Array Hotel Ballroom System, view 3

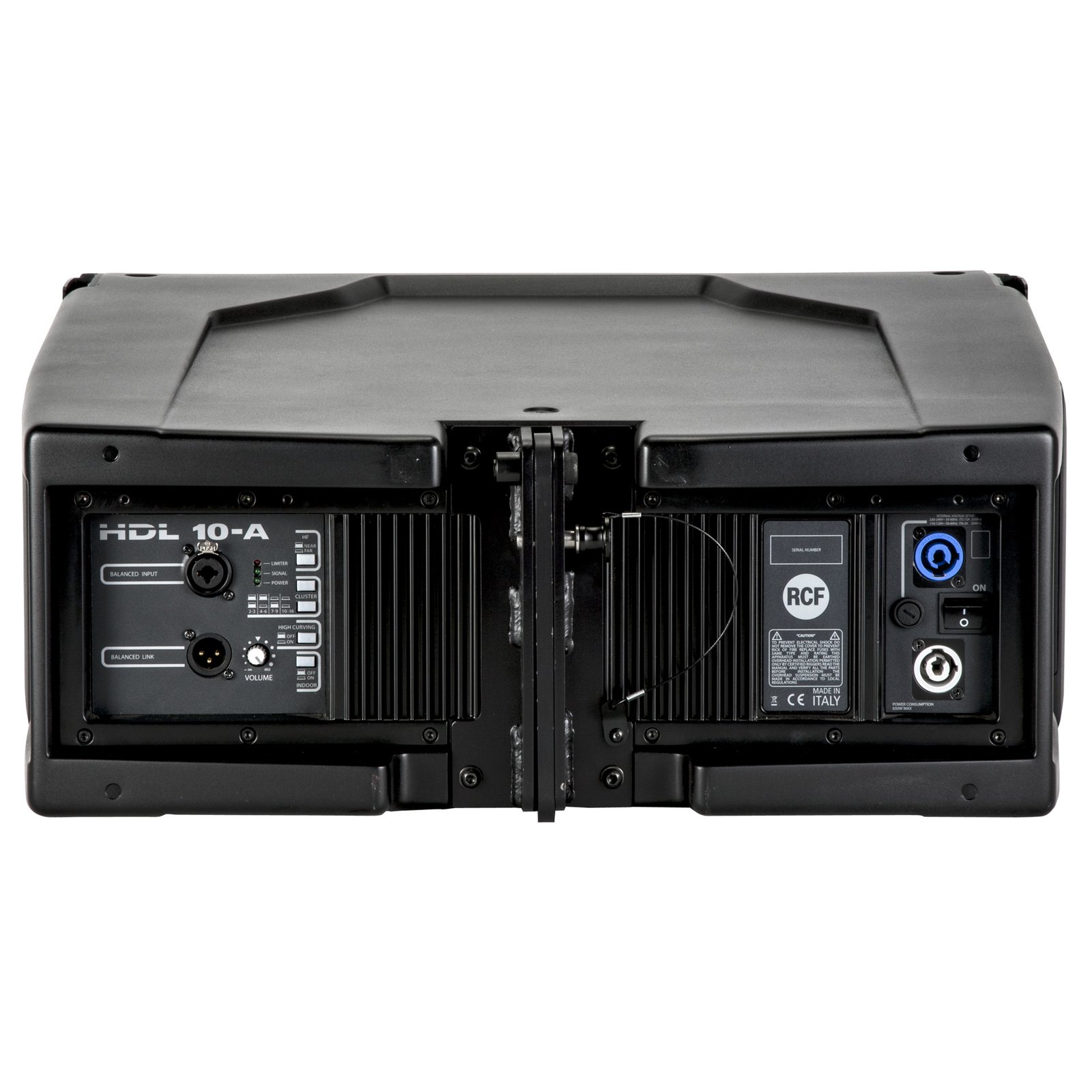

RCF HDL 10-A Line Array Hotel Ballroom System, view 4

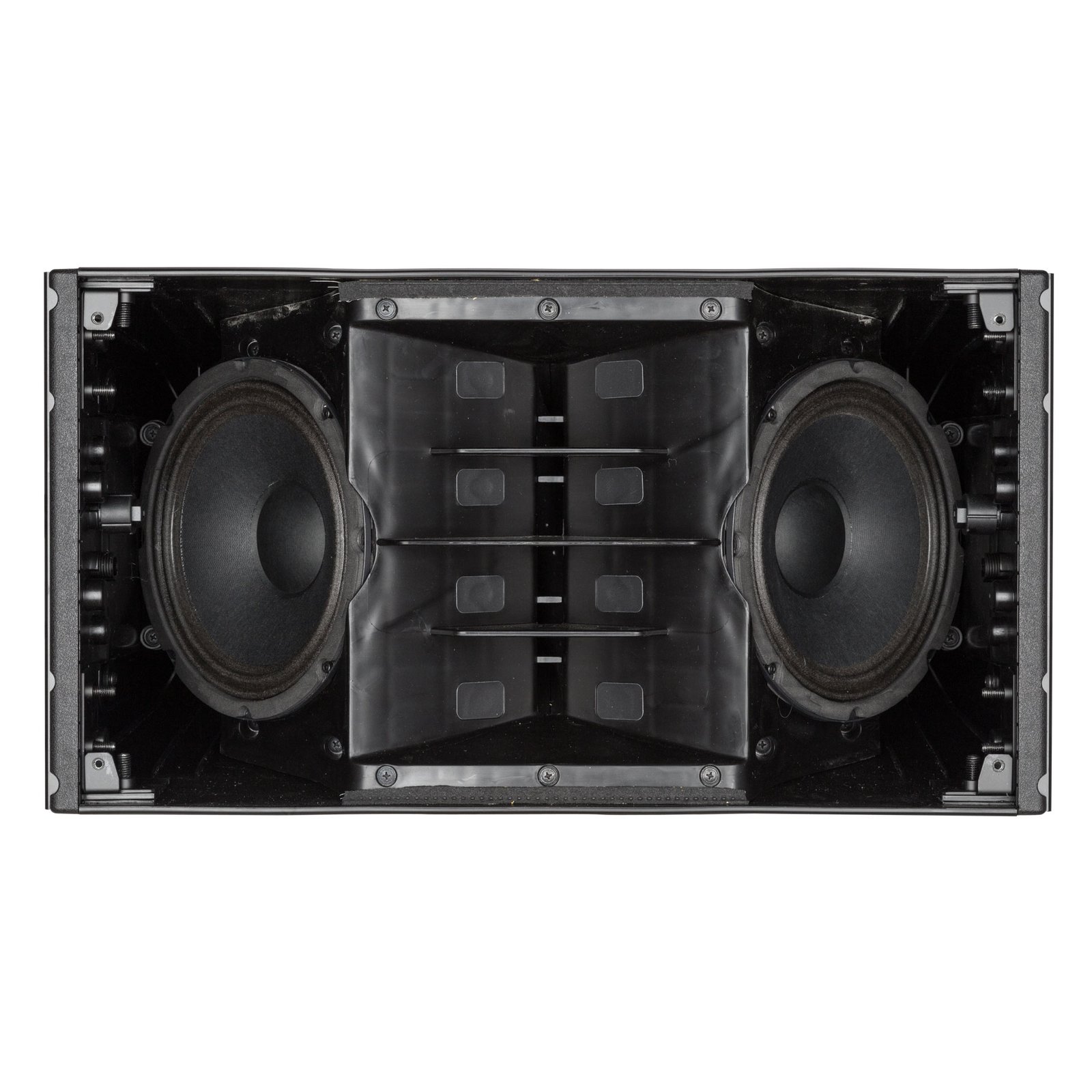

RCF HDL 10-A Line Array Hotel Ballroom System

From £15,000.00 — request a quote

Key features

133dB max SPL at 1m
100° horizontal / 15° vertical coverage
1400W peak / 700W RMS Class-D amplification, self-powered
Twin 8" neodymium woofers with a 2" compression driver
Sized for hotel ballrooms and function suites rather than a full concert PA
RCF HDL 6-A available as a lighter, lower-output alternative for smaller function suites

Installed line array system for hotel ballrooms and multi-purpose function rooms. Guide price shown is a starting point only, final quotation follows a free site survey.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Indicative pricing, final cost confirmed as part of your quote, based on quantity, site survey and exact specification.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

Specifications

RCF HDL 10-A Line Array Hotel Ballroom System specifications
Brand	RCF
Module	RCF HDL 10-A active line array module
Drivers	2 x 8 inch woofers, 1 x 2 inch compression driver
Amplifier	Class-D, 1400 W peak / 700 W RMS, convection cooled
Maximum SPL	133 dB at 1 m
Frequency response	65 Hz to 20 kHz
Coverage	100 degrees horizontal, 15 degrees vertical
Connectors	XLR input and output, Powercon IN/OUT
Dimensions	569 x 294 x 434 mm
Weight	20.4 kg
Mains	Versions for 115 V and 220 V to 240 V

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

The module is self-powered, with built-in Class-D amplification and DSP, so it needs a mains connection through Powercon and a balanced audio feed on XLR.
RCF recommends the HDL 15-AS as a flyable bass complement for the array.
The module has flyware rigging and two side handles. Confirm module quantity and rigging requirements for the room when you request a quote.

Frequently asked questions

Does the HDL 10-A need an external amplifier?

No. RCF lists it as an active module with a built-in Class-D amplifier and DSP.

How are the modules connected?

Each module has an XLR input and output for audio and Powercon IN/OUT connections for mains.

Can the system be surveyed and installed?

Yes. Survey and installation can be requested and quoted with the system.

Description

Efficient IS supplies the RCF HDL 10-A Line Array Hotel Ballroom System to UK organisations, with delivery, survey and installation available on request.

The RCF HDL 10-A is a self-powered active line array module, sized for a hotel ballroom or function suite rather than a full concert PA, proportionate for weddings, conferences and live entertainment in a single function space.Specifications:

Brand: RCF
Type: Self-powered active line array module
SPL: 133dB max at 1m
Coverage: 100° horizontal, 15° vertical
Amplification: 1400W peak, 700W RMS, Class D
Drivers: Twin 8 inch neodymium woofers, 2 inch compression driver
Suited to: Weddings, conferences and live entertainment in a single function space
Alternative: RCF’s HDL 6-A, a lighter, lower-output alternative for a smaller function suite

Buying the RCF HDL 10-A Line Array Hotel Ballroom System from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
