JBL Professional CBT Column Array Hotel Restaurant System

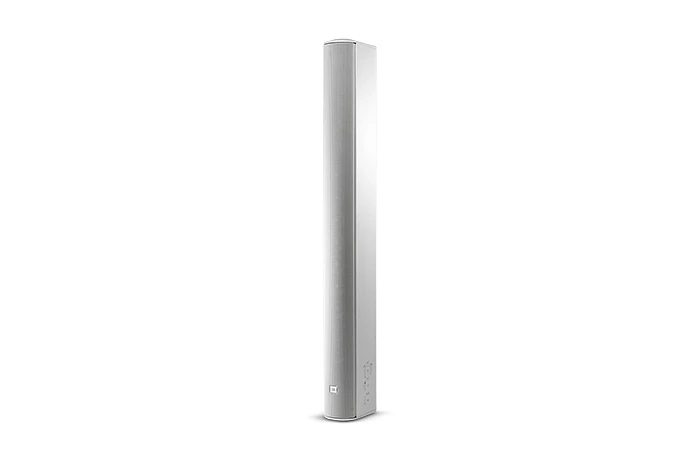

JBL Professional CBT Column Array Hotel Restaurant System, view 2

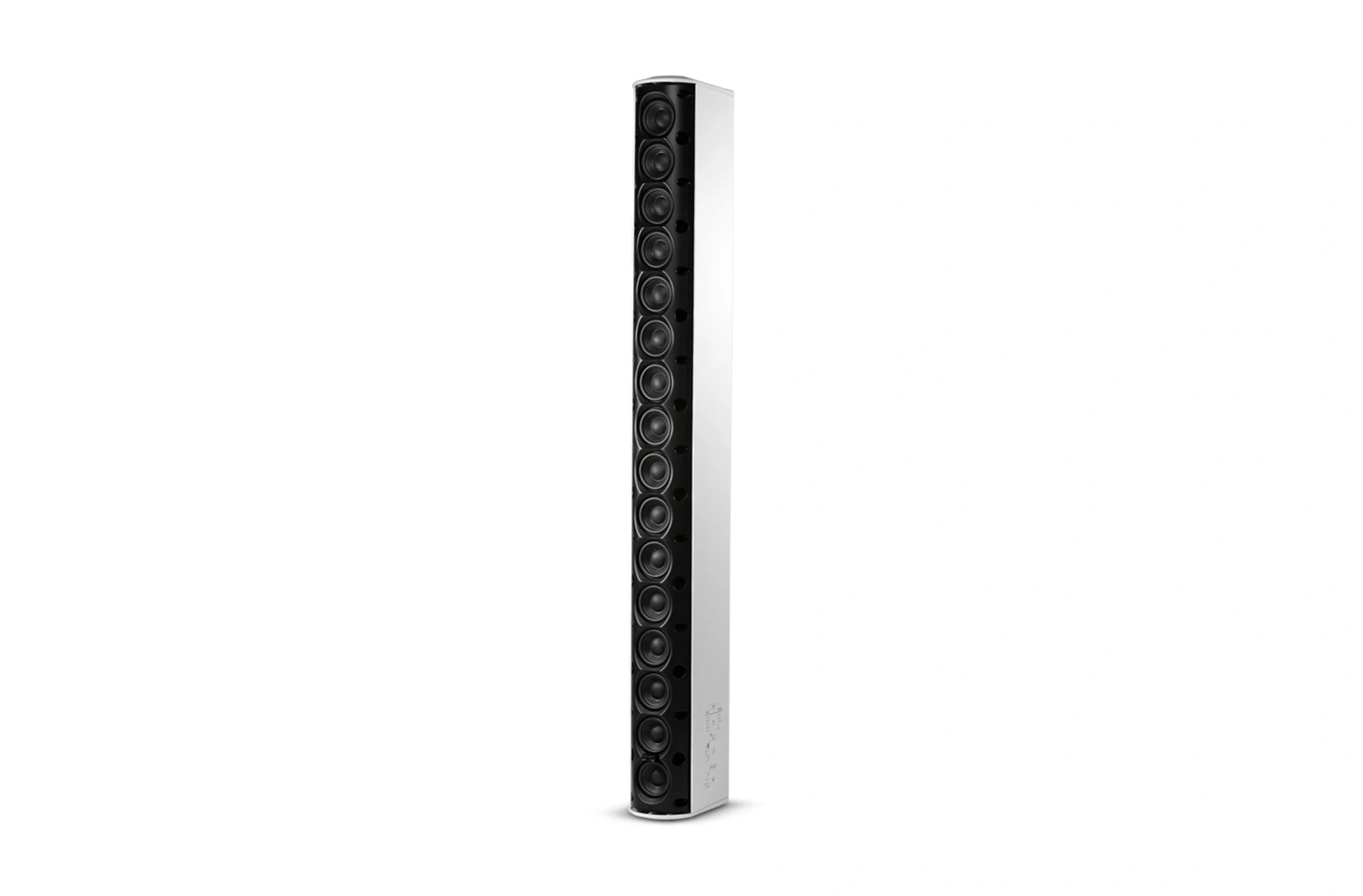

JBL Professional CBT Column Array Hotel Restaurant System, view 3

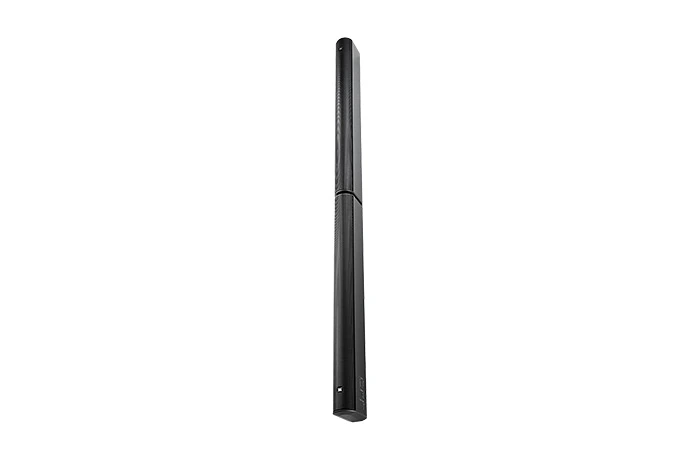

JBL Professional CBT Column Array Hotel Restaurant System, view 4

JBL Professional CBT Column Array Hotel/Restaurant System

From £10,000.00 — request a quote

Key features

Constant Beamwidth Technology: analog delay beam-forming with amplitude tapering across a slim vertical cabinet
Even, low-lobing sound coverage without a standard speaker's narrow, unpredictable directionality
CBT Series spans CBT 50LA-1, CBT 70J-1, CBT 100LA-1, CBT 200LA-1 and CBT 1000, plus matched subwoofer systems
Proven in JBL's own hospitality case studies, hotels, beach clubs, weddings, ballrooms
CBT 70J-1 fits restaurant/lobby scale; CBT 100LA-1 or CBT 200LA-1 for larger ballroom/function-room coverage

Column line array speaker system for even coverage in hotel and restaurant function spaces. Guide price shown is a starting point only, final quotation follows a free site survey.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Indicative pricing, final cost confirmed as part of your quote, based on quantity, site survey and exact specification.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

Specifications

JBL Professional CBT Column Array Hotel/Restaurant System specifications
Brand	JBL Professional
Series	CBT Series passive controlled coverage columns
Technology	Constant Beamwidth Technology, using analog delay beam-forming and amplitude tapering
Models for this system	CBT 70J-1 for restaurant or lobby scale; CBT 100LA-1 or CBT 200LA-1 for larger function rooms
CBT 70J-1 drivers	Four 130 mm LF drivers and sixteen 25 mm HF drivers
CBT 70J-1 coverage	150 degrees horizontal; vertical switchable between 25 and 45 degrees
CBT 70J-1 frequency range	60 Hz to 20 kHz (minus 10 dB)
CBT 70J-1 dimensions	694 x 170 x 237 mm
CBT 70J-1 weight	9.5 kg

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

CBT Series columns are passive loudspeakers, so they need external power amplification. The CBT 70J-1 is rated at 8 ohms nominal impedance.

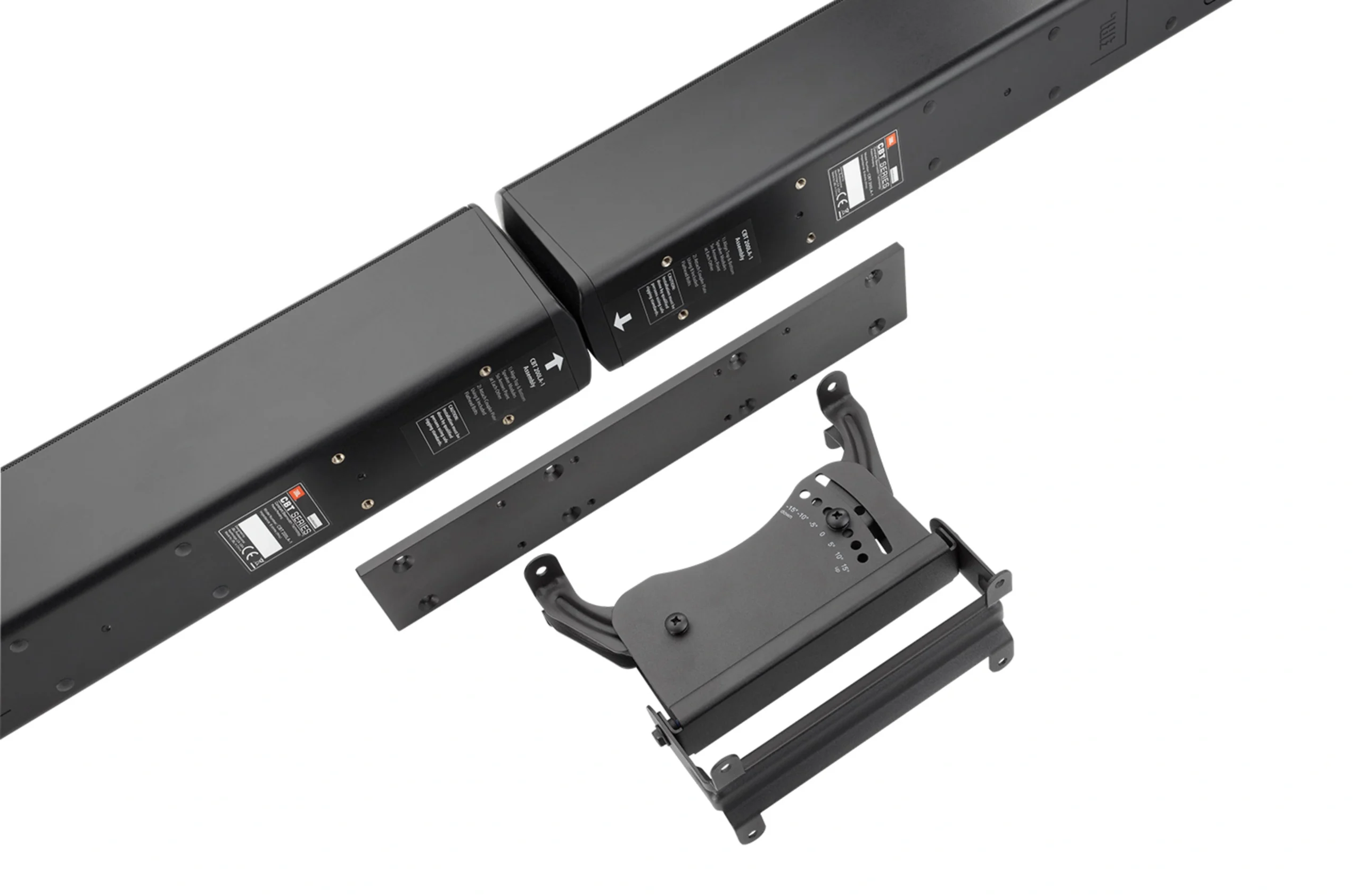

The CBT 70J-1 includes a swivel and tilt wall bracket. Outdoor IP-55 use requires the optional MTC-PC2 panel cover.
Column length and model are chosen to suit the room, with the CBT 70J-1 suggested for restaurant or lobby scale and the CBT 100LA-1 or CBT 200LA-1 for larger function rooms.

Frequently asked questions

What is Constant Beamwidth Technology?

JBL describes it as delivering consistent coverage in a slim vertical column, using analog delay beam-forming and amplitude tapering to reduce lobing outside the coverage area.

Are the CBT columns active or passive?

They are passive, so each column needs to be driven by a suitable external amplifier.

Do you survey and install hotel and restaurant sound systems?

Yes. Survey, delivery and installation can be arranged on request.

Description

Efficient IS supplies the JBL Professional CBT Column Array Hotel Restaurant System to UK organisations, with delivery, survey and installation available on request.

JBL’s CBT Series uses Constant Beamwidth Technology, analog delay beam-forming and amplitude tapering across a slim vertical cabinet, for even, low-lobing sound coverage without the narrow, unpredictable directionality of a standard speaker.Specifications:

Brand: JBL Professional
Series: CBT Series (CBT 50LA-1, CBT 70J-1, CBT 100LA-1, CBT 200LA-1, CBT 1000, plus matched subwoofer systems)
Technology: Constant Beamwidth Technology, analog delay beam-forming and amplitude tapering
Suited to: Hotel lobbies, restaurants and function rooms, per JBL’s own hospitality case studies (hotels, beach clubs, weddings, ballrooms)
Sizing: CBT 70J-1 fits restaurant or lobby scale; CBT 100LA-1 or CBT 200LA-1 for larger ballroom or function-room coverage

Buying the JBL Professional CBT Column Array Hotel Restaurant System from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
