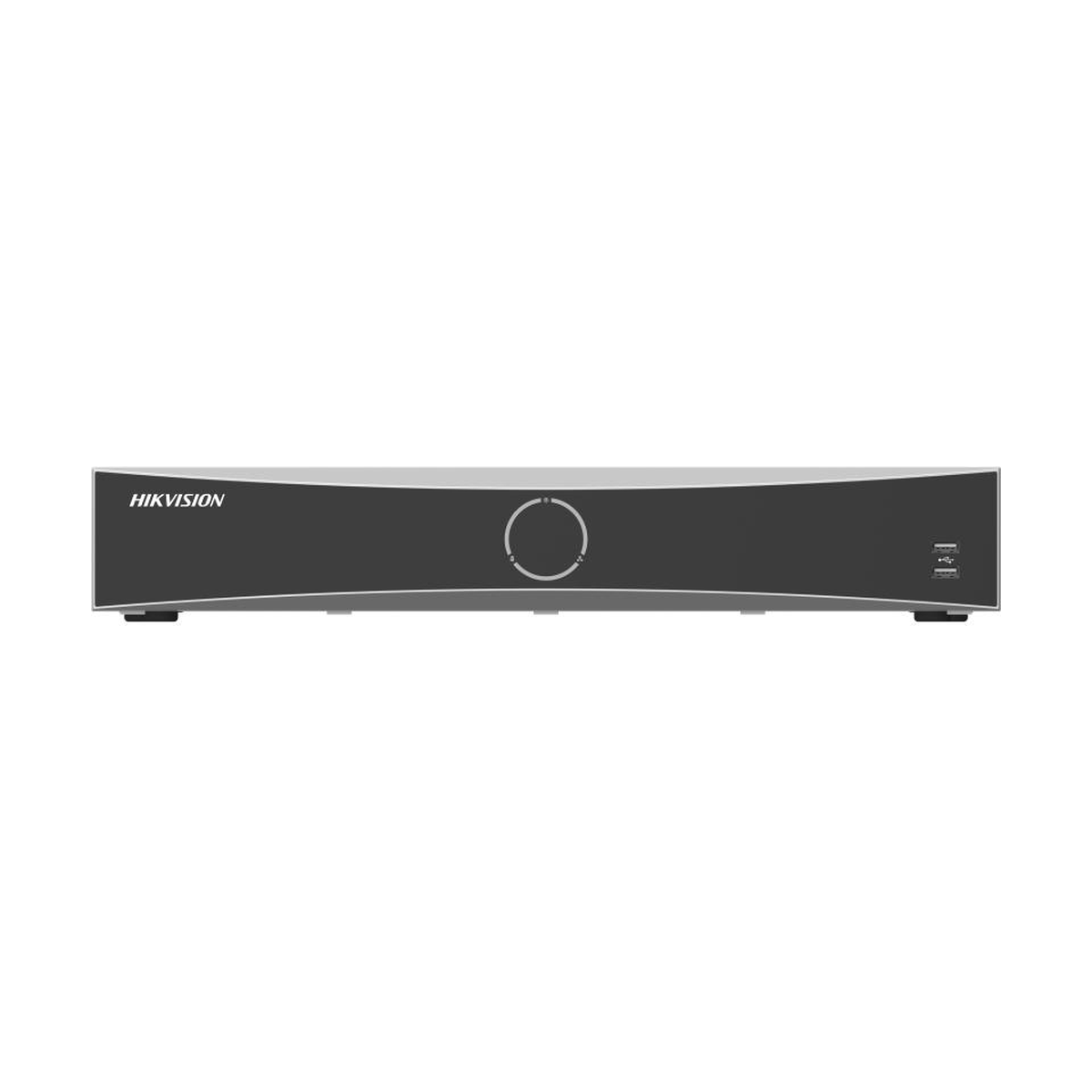

Hikvision DS-7732NXI-K4/16P(D) 32 Channel 4K PoE NVR
POArequest a quote
Key features
- 32 channels: Records up to 32 IP cameras on one recorder.
- 16 built-in PoE ports: Cameras are powered and connected from the recorder itself.
- 4K recording: Supports high resolution cameras up to 4K.
- K-series, 1.5U rack unit: A compact recorder that suits a comms cabinet.
A 32 channel K-series network video recorder with 16 built-in PoE ports, for larger sites. Sixteen cameras connect directly, with further cameras added through a PoE switch.
Fast UK deliveryMost in-stock items ship within a few working days.
Survey & installationAvailable on request, we'll quote it alongside the product.
Staff trainingHands-on training available on projects that include it.
Ongoing supportMaintenance and care plans available, see Support & Maintenance.
Pricing for this item hasn't been confirmed yet. Tell us what you need below and we'll come back to you with a quote.
Specifications
Hikvision DS-7732NXI-K4/16P(D) 32 Channel 4K PoE NVR specifications| Brand | Hikvision |
|---|
| Manufacturer part number | DS-7732NXI-K4/16P(D) |
|---|
| IP camera channels | Up to 32 (16 with PoE ports) |
|---|
| Incoming bandwidth | 256 Mbps (outgoing 160 Mbps) |
|---|
| Max recording resolution | 12 MP per camera |
|---|
| PoE ports | 16 x independent PoE, IEEE 802.3af/at |
|---|
| PoE power | Up to 200 W |
|---|
| Hard drive bays | 4 x SATA, up to 16 TB per drive |
|---|
| Video outputs | 1 x HDMI up to 4K (3840 x 2160) at 30 Hz, 1 x VGA up to 1920 x 1080 at 60 Hz |
|---|
| Network interface | 1 x RJ-45 10/100/1000 Mbps |
|---|
| Analytics | AcuSense; 2 channels human and vehicle recognition; motion detection 2.0 on all channels |
|---|
| Operating temperature | -10 °C to 55 °C |
|---|
| Power supply | 100 to 240 VAC, 50 to 60 Hz; 20 W or less without HDD and PoE off |
|---|
| Dimensions and weight | 445 x 400 x 75 mm; 5 kg or less without HDD |
|---|
Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.
What you need to know
- The recorder has four SATA bays, each listed for a drive of up to 16 TB. No drives are listed as supplied, so hard drives need to be bought separately.
- Only 16 of the 32 channels have built-in PoE ports. Cameras beyond those 16 connect over the network, for example through a separate PoE switch.
- PoE power is listed as up to 200 W across the 16 ports (IEEE 802.3af/at), so check the combined draw of the connected cameras against that figure.
Frequently asked questions
Can the DS-7732NXI-K4/16P(D) record 32 cameras?
It accepts up to 32 IP cameras. Only 16 have dedicated PoE ports on the recorder, so the other 16 must be powered separately, for example by a PoE switch on the same network.
How much storage can I fit?
It has 4 SATA interfaces, each listed for a hard drive of up to 16 TB. No drives are listed as supplied, so you need to buy and fit your own before the recorder can record.
What incoming bandwidth does it support?
The datasheet lists incoming bandwidth of 256 Mbps and outgoing bandwidth of 160 Mbps. Recording is supported up to 12 MP per camera, and the HDMI output reaches 4K (3840 x 2160) at 30 Hz.
