UniFi Switch Pro 24 PoE

From £650.00 — request a quote

Key features

24-port Layer 3 managed PoE switch
2x 10G SFP+ uplinks for fibre or high-capacity runs
Up to 400W total PoE budget, PoE++ on select ports
Inter-VLAN routing, static routing, DHCP server built in
DC power backup input for redundancy

24-port Layer 3 managed PoE switch with 10G SFP+ uplinks and up to 400W PoE budget.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Online ordering is not open yet. Tell us what you need below and we'll confirm availability, delivery and installation.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

SKU: EIS-NET-USW-PRO-24-POE Category: Switches Brand: Ubiquiti

Specifications

UniFi Switch Pro 24 PoE specifications
Brand	Ubiquiti
Manufacturer part number	USW-Pro-24-POE
Model	UniFi Switch Pro 24 PoE

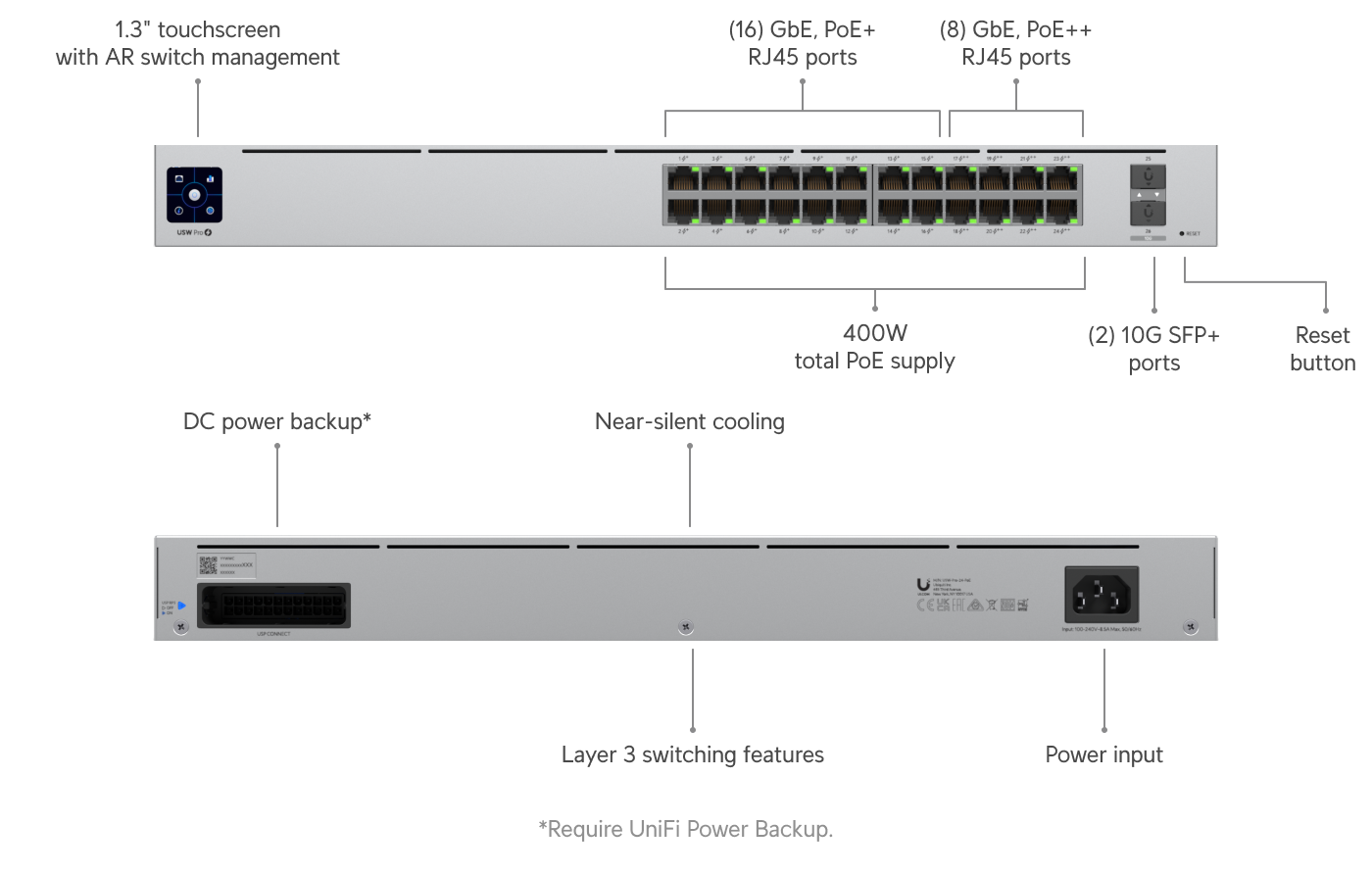

Ports	24 RJ45: 16 PoE+ and 8 PoE++
Uplinks	2 x 10G SFP+
PoE budget	400 W total
Switching capacity	88 Gbps
Layer 3	Yes

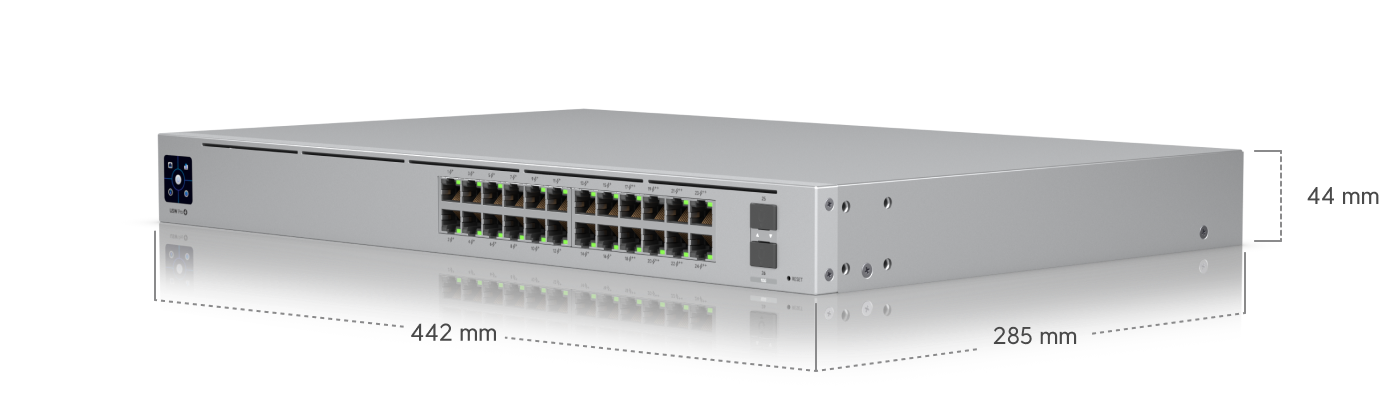

Dimensions	442 x 285 x 44 mm
Weight	4.3 kg, 4.4 kg with brackets
Power input	100 V to 240 V AC, 50/60 Hz, internal 450 W supply
Backup power	RPS DC input
Operating temperature	Minus 5 °C to 40 °C
Mounting	1U rack mount, rack depth 400 mm to 1200 mm

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

The 400 W PoE budget is shared across all PoE ports, so check the combined power draw of connected devices.
Eight of the 24 ports provide PoE++ for higher-power devices, and the other sixteen provide PoE+.

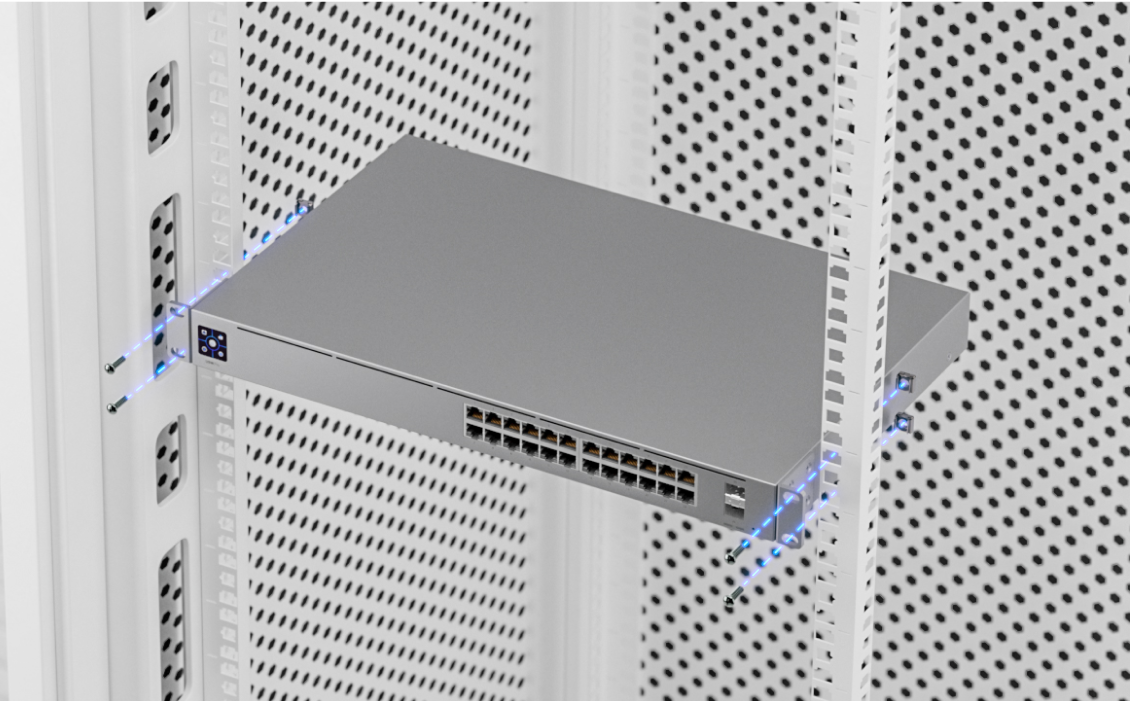

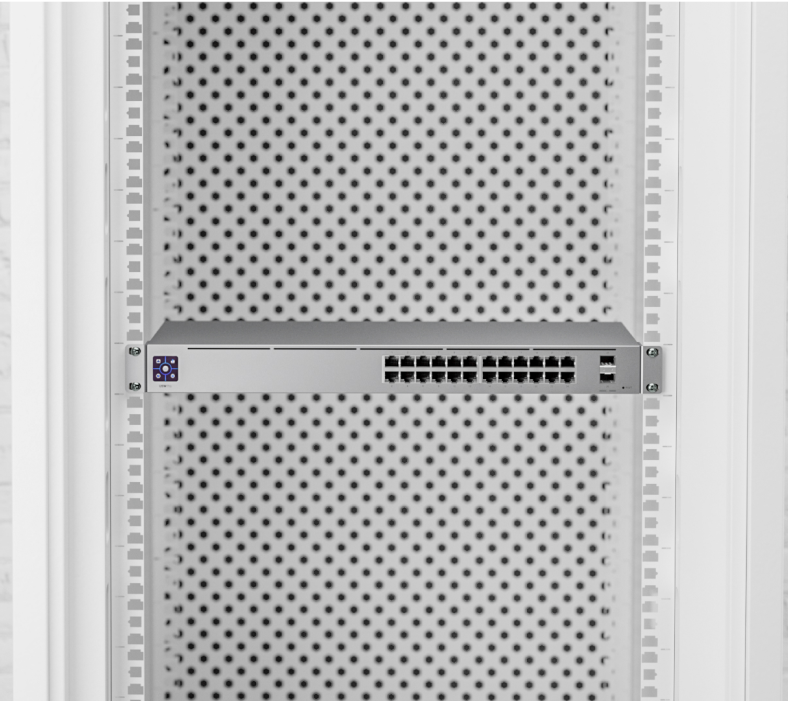

The switch is a 1U rack-mount unit, with a supported rack depth of 400 mm to 1200 mm.

Frequently asked questions

How many PoE ports does it have?

Ubiquiti lists 24 RJ45 ports, of which 16 are PoE+ and 8 are PoE++, with 400 W total PoE.

Is it a Layer 3 switch?

Yes. Ubiquiti lists it as a Layer 3 switch.

Does it have fibre uplinks?

Yes. It has two 10G SFP+ ports.

Description

Efficient IS supplies the UniFi Switch Pro 24 PoE to UK organisations, with delivery, survey and installation available on request.

A step up from the standard 24-port PoE switch for sites that need Layer 3 features plus SFP+ fibre uplinks for longer or higher-capacity runs.Specifications:

Brand: Ubiquiti
Ports: 24
Layer 3 features: Inter-VLAN routing, static routing, DHCP server
Uplinks: Two 10G SFP+
PoE budget: Up to 400W total, with PoE++ available on selected ports
Redundancy: DC power input
Suited to: A solid backbone switch for a growing office network

Buying the UniFi Switch Pro 24 PoE from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
