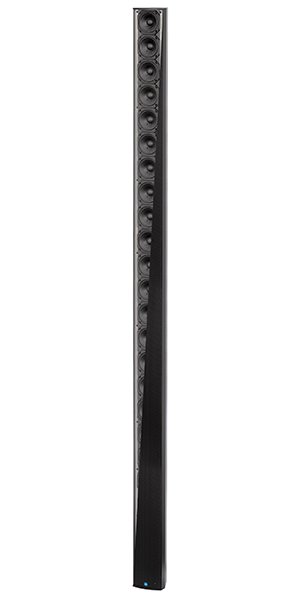

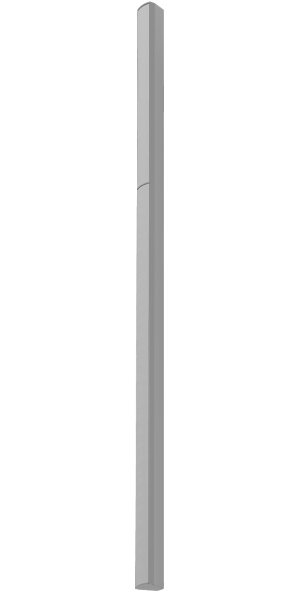

Renkus-Heinz Iconyx Compact Steerable Column PA

Renkus-Heinz Iconyx Compact Steerable Column PA

From £15,000.00 — request a quote

Key features

RHAON II beam-steering technology digitally shapes the sound beam to cover seated rows precisely
Array of 3" full-range drivers per column
Four sizes available (ICC12/3 through ICC48/3) to match room size and reverberation
Around 40% smaller footprint than Renkus-Heinz's full-size Iconyx range
Delivers over 105dB SPL
Directs sound at the audience while avoiding hard reflective surfaces that cause echo in halls with bare walls and high ceilings

Digitally steerable column loudspeakers that aim sound precisely at the audience rather than the ceiling and back wall, built for rooms with acoustic challenges like a typical school hall, where a conventional speaker often produces echo and poor speech clarity.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Indicative pricing, final cost confirmed as part of your quote, based on quantity, site survey and exact specification.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

SKU: EIS-PRJ-SCHOOL-VOID-ACOUS-SYMPHONY-HALL Category: Assembly Hall PA Systems Tags: beam steering, Iconyx Compact, replace Void Acoustics references with: Renkus-Heinz, steerable column Brand: Renkus-Heinz

Specifications

Renkus-Heinz Iconyx Compact Steerable Column PA specifications
Brand	Renkus-Heinz
Series	Iconyx Compact
Models	ICC12/3, ICC24/3, ICC36/3, ICC48/3
Beam steering	RHAON II
Drivers	3 inch (77 mm) full-range, 12 in the ICC12/3 and 48 in the ICC48/3, one amplifier and DSP channel per driver
Aiming angle	Adjustable from minus 30 degrees to plus 30 degrees
Horizontal coverage	120 degrees below 3 kHz, 90 degrees above 3 kHz
Peak SPL	129 dB (ICC12/3) and 138 dB (ICC48/3), calculated, whole-space
Dimensions	111 mm wide x 121 mm deep, 1003 mm high (ICC12/3) to 3997 mm high (ICC48/3)
Weight (ICC12/3)	12 kg
Versions	RN with analogue and AES inputs, RD1 adds Dante
Power	100 V to 240 V, 50/60 Hz, auto-switching
Mounting	W-WALL-IC3 wall mount bracket included

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

The Iconyx Compact range has four column lengths, ICC12/3 to ICC48/3. The length is chosen to suit room size and reverberation.
Each column has its own amplifier and DSP channel per driver, so it needs a mains supply and a network or audio feed rather than a separate power amplifier.
The RD1 version adds Dante network audio, and the RN version does not.

Frequently asked questions

What does beam steering do?

Renkus-Heinz uses RHAON II to shape and aim the sound beam, with the aiming angle adjustable from minus 30 degrees to plus 30 degrees.

Is a mounting bracket included?

Renkus-Heinz lists the W-WALL-IC3 wall mount bracket as included.

Can you survey the room and install it?

Delivery, survey and installation are available on request, and the final quote follows a site survey.

Description

Efficient IS supplies the Renkus-Heinz Iconyx Compact Steerable Column PA to UK organisations, with delivery, survey and installation available on request.

Renkus-Heinz’s Iconyx Compact uses RHAON II beam-steering technology to digitally shape the sound beam, covering seated rows precisely while avoiding the hard reflective surfaces that cause most echo and poor speech intelligibility in school halls with bare walls and high ceilings.Specifications:

Brand: Renkus-Heinz
Technology: RHAON II beam-steering
Drivers: Array of 3 inch full-range drivers
Sizes: Four, ICC12/3 through ICC48/3, to match room size and reverberation
Footprint: Around 40% smaller than Renkus-Heinz’s full-size Iconyx range
SPL: Over 105dB
Suited to: Spaces where directional control and a compact, unobtrusive install matter, such as a school assembly hall

Buying the Renkus-Heinz Iconyx Compact Steerable Column PA from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
