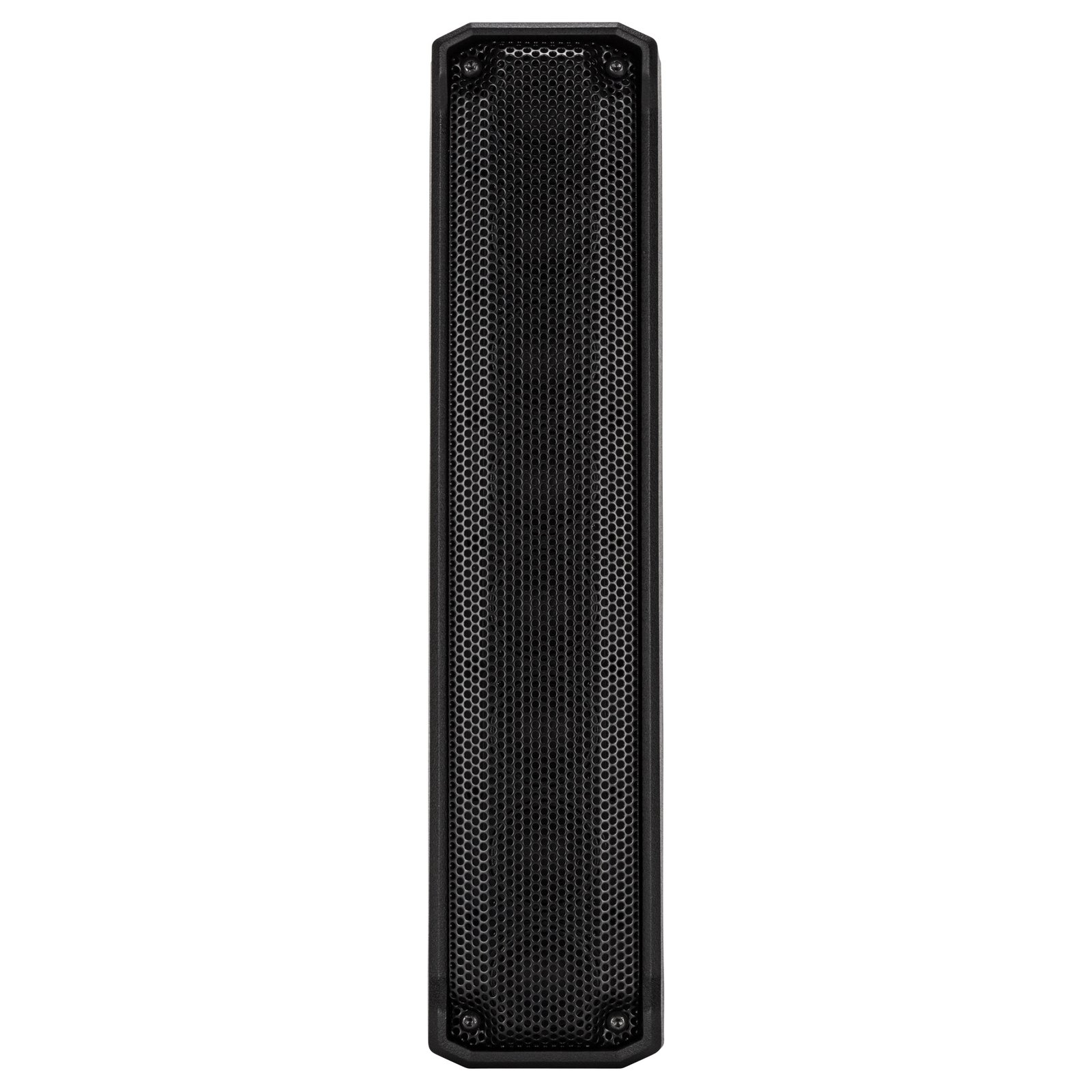

RCF EVOX J8 Compact Array PA System, view 2

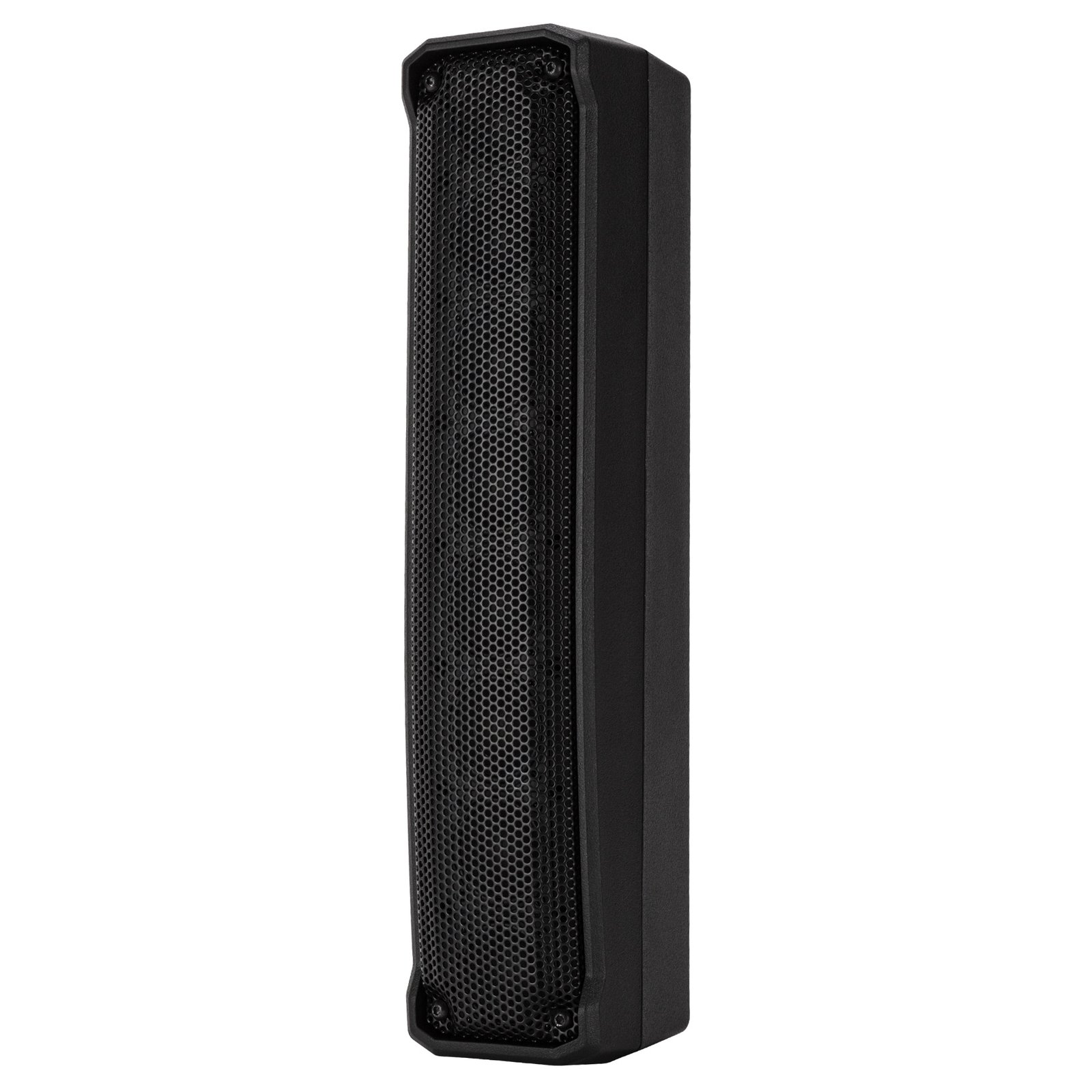

RCF EVOX J8 Compact Array PA System, view 3

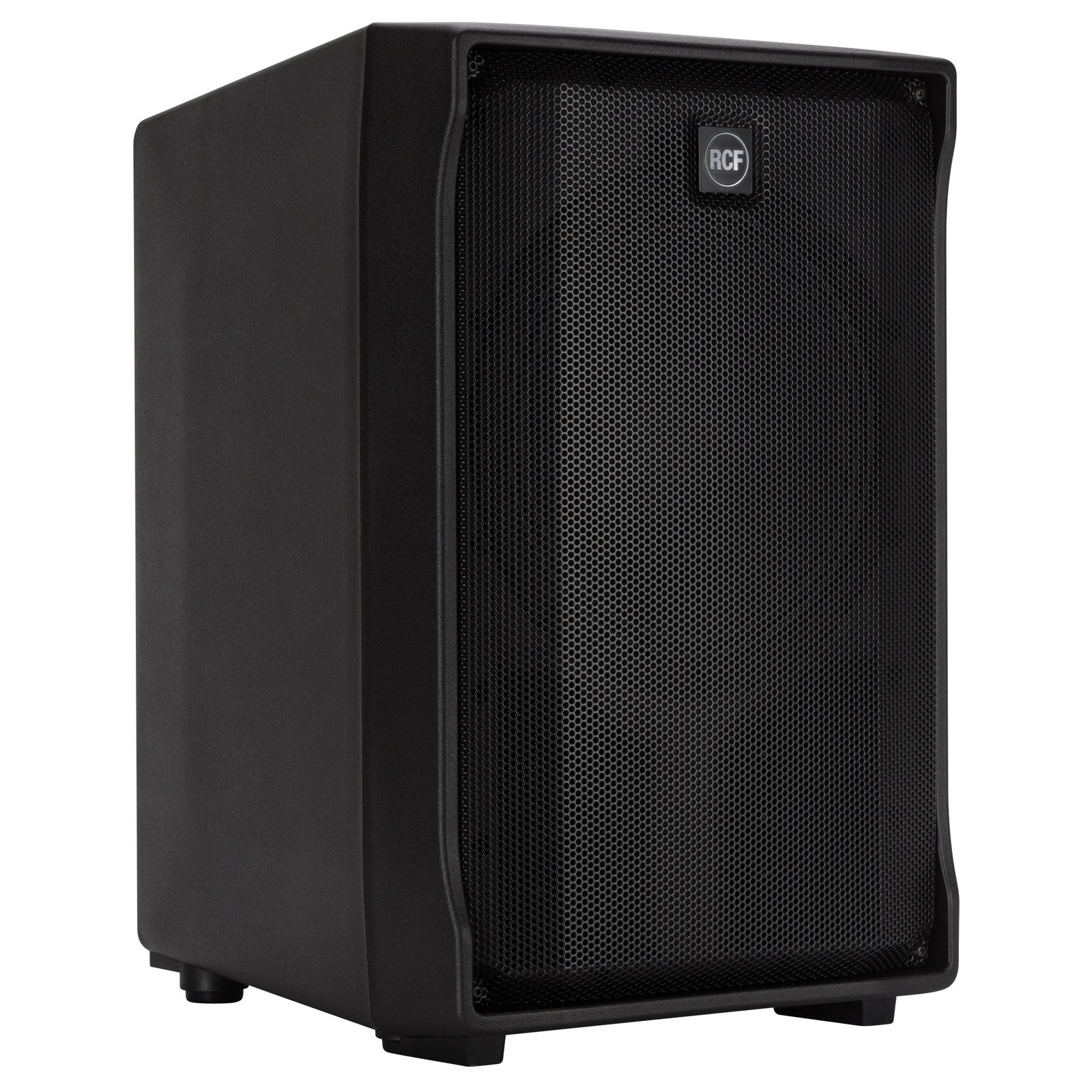

RCF EVOX J8 Compact Array PA System, view 4

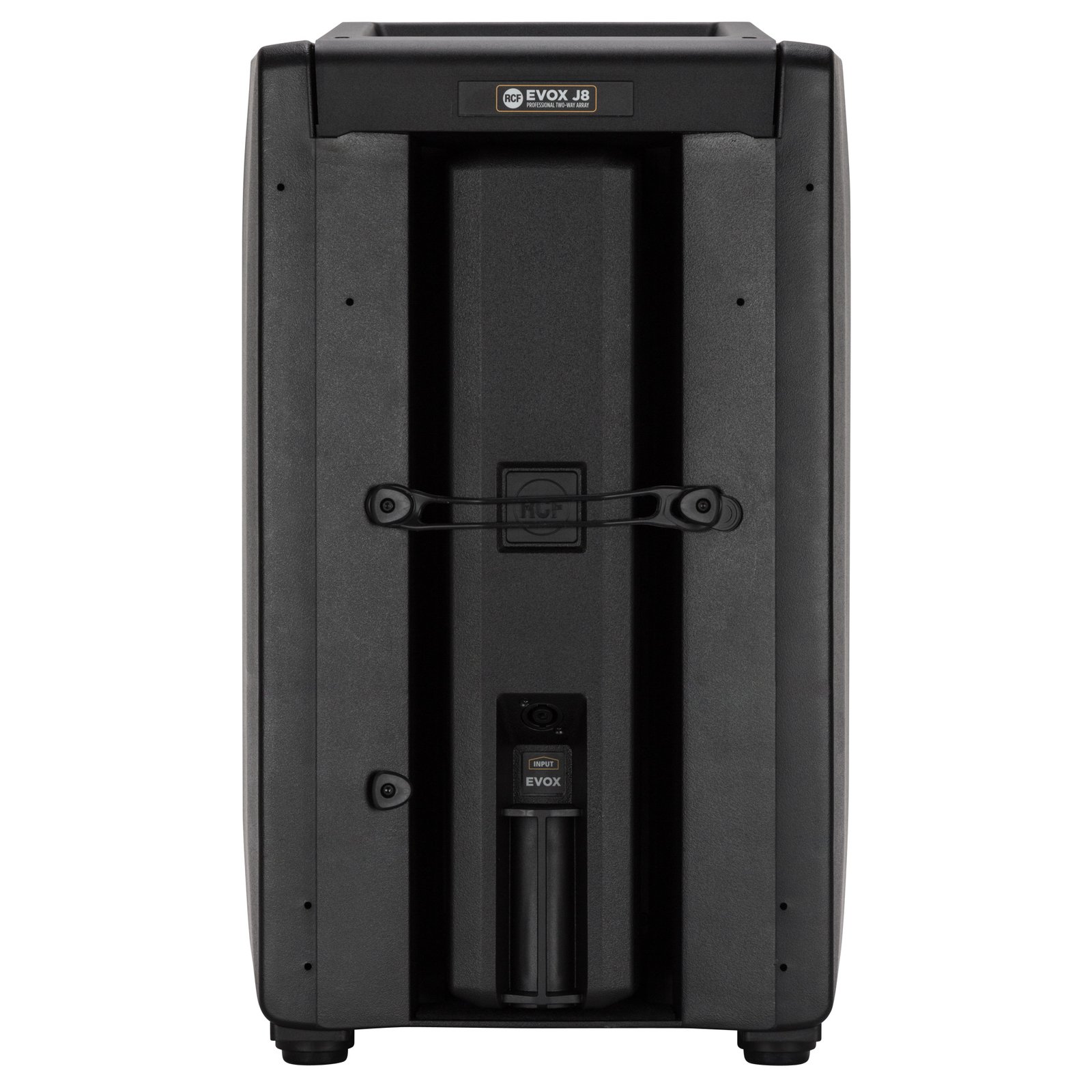

RCF EVOX J8 Compact Array PA System, view 5

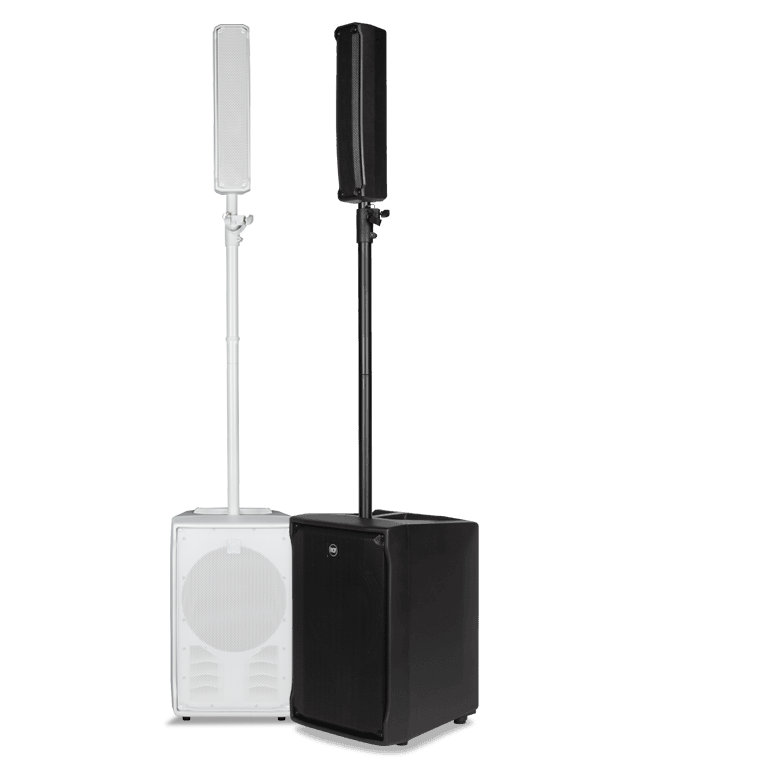

RCF EVOX J8 Compact Array PA System

From £2,100.00 — request a quote

Key features

1400W peak / 700W RMS total power (400W/200W highs, 1000W/500W lows)
Eight 2-inch full-range column drivers plus a 12-inch, 2.5in voice-coil woofer in bass-reflex design
40Hz-20kHz frequency response with max SPL of 128dB at 1m
120° horizontal x 30° vertical coverage pattern
DSP with FiRPHASE processing for 0° phase response across the coverage area
Compact footprint (2285 x 400 x 460mm, 20.2kg) with quick pole-mount assembly

Self-powered compact line array PA system with 1400W peak power and 120° coverage for events and hospitality use.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Online ordering is not open yet. Tell us what you need below and we'll confirm availability, delivery and installation.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

SKU: EIS-AUD-RCF-EVOX-J8-COMPACT-ARRAY Category: Portable & Compact PA Systems Tags: compact line array, portable PA, RCF EVOX Brand: RCF

Specifications

RCF EVOX J8 Compact Array PA System specifications
Brand	RCF
Type	Active two-way portable array
Power	1400 W peak, 700 W RMS (Class D)
Drivers	Eight 2 inch full-range drivers and one 12 inch woofer
Frequency response	40 Hz to 20 kHz
Maximum SPL	128 dB at 1 m
Coverage	120 degrees horizontal x 30 degrees vertical
Crossover	220 Hz
DSP	FiRPHASE processing with soft limiter and thermal and RMS protection
Inputs	XLR and jack, balanced or unbalanced
Output	XLR
Dimensions	2285 x 400 x 460 mm (H x W x D)
Weight	20.2 kg

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

The EVOX J8 is self-powered, with the amplifier built in, so it needs a mains supply and an audio source but no external amplifier.

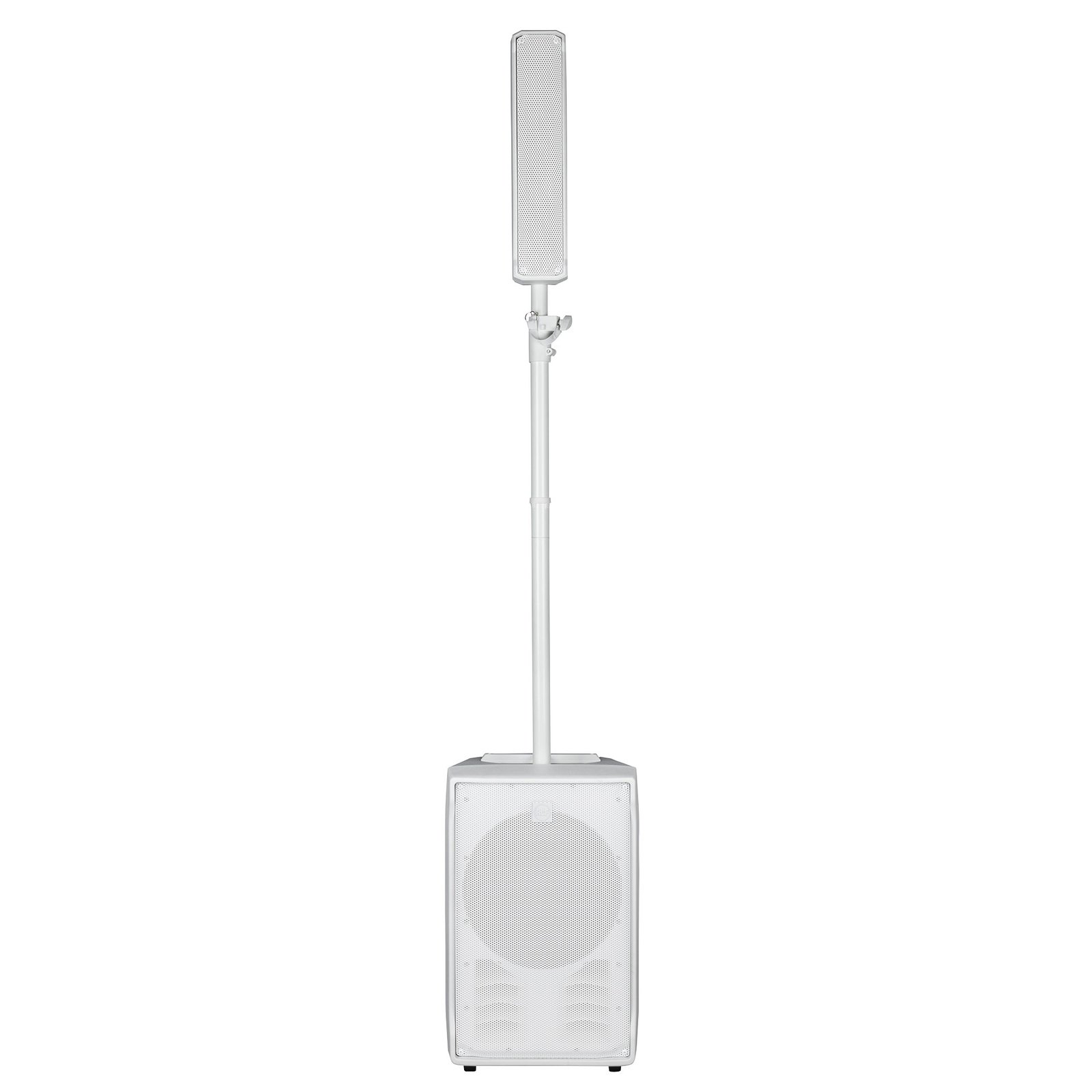

RCF supplies it in 220 to 240 V and 115 V versions and in black or white, so the correct mains version is chosen when you request a quote.
Controls on the unit are volume, boost and mic/line selection.

Frequently asked questions

Does the EVOX J8 need an external amplifier?

No. It is an active system with 1400 W peak (700 W RMS) of built-in Class D amplification.

How wide is the coverage?

RCF specifies 120 degrees horizontal by 30 degrees vertical.

What can I connect to it?

It has balanced or unbalanced XLR and jack inputs with a mic/line control, and an XLR output.

Description

Efficient IS supplies the RCF EVOX J8 Compact Array PA System to UK organisations, with delivery, survey and installation available on request.

The RCF EVOX J8 is a self-powered compact array PA system offering wide, even coverage for corporate events, presentations and hospitality functions, popular with venues and AV hire desks alike.Specifications:

Brand: RCF
Drivers: Eight 2 inch column drivers and a 12 inch woofer
Power: 1400W peak
Coverage: 120° x 30° pattern
DSP: RCF’s FiRPHASE, keeping phase response even throughout the room
Weight: 20.2kg, with quick pole-mount assembly
Suited to: Corporate events, presentations, hospitality functions, venues and AV hire desks

Buying the RCF EVOX J8 Compact Array PA System from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
