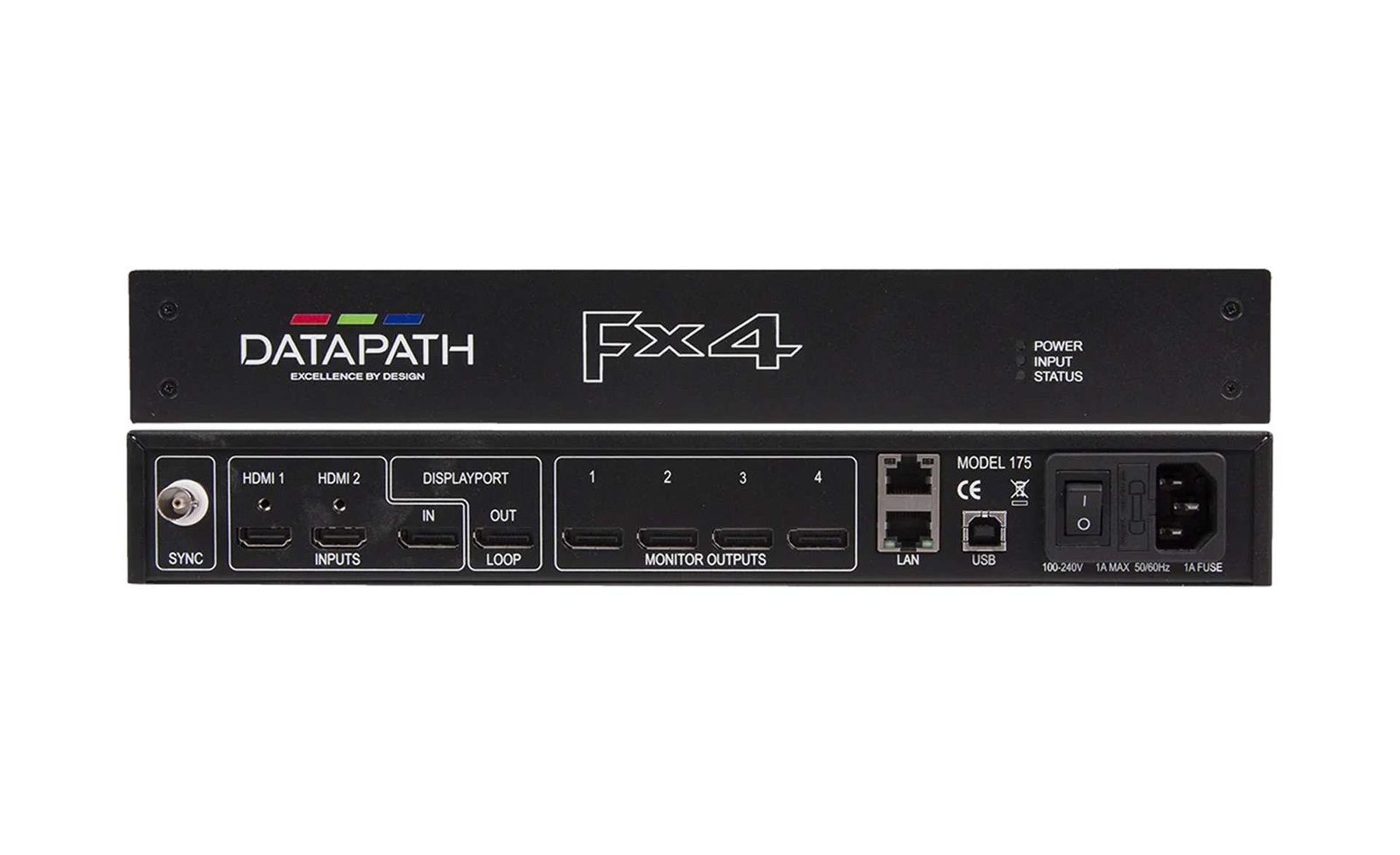

Datapath Fx4 Video Wall Controller, view 2

Datapath Fx4 Video Wall Controller, view 3

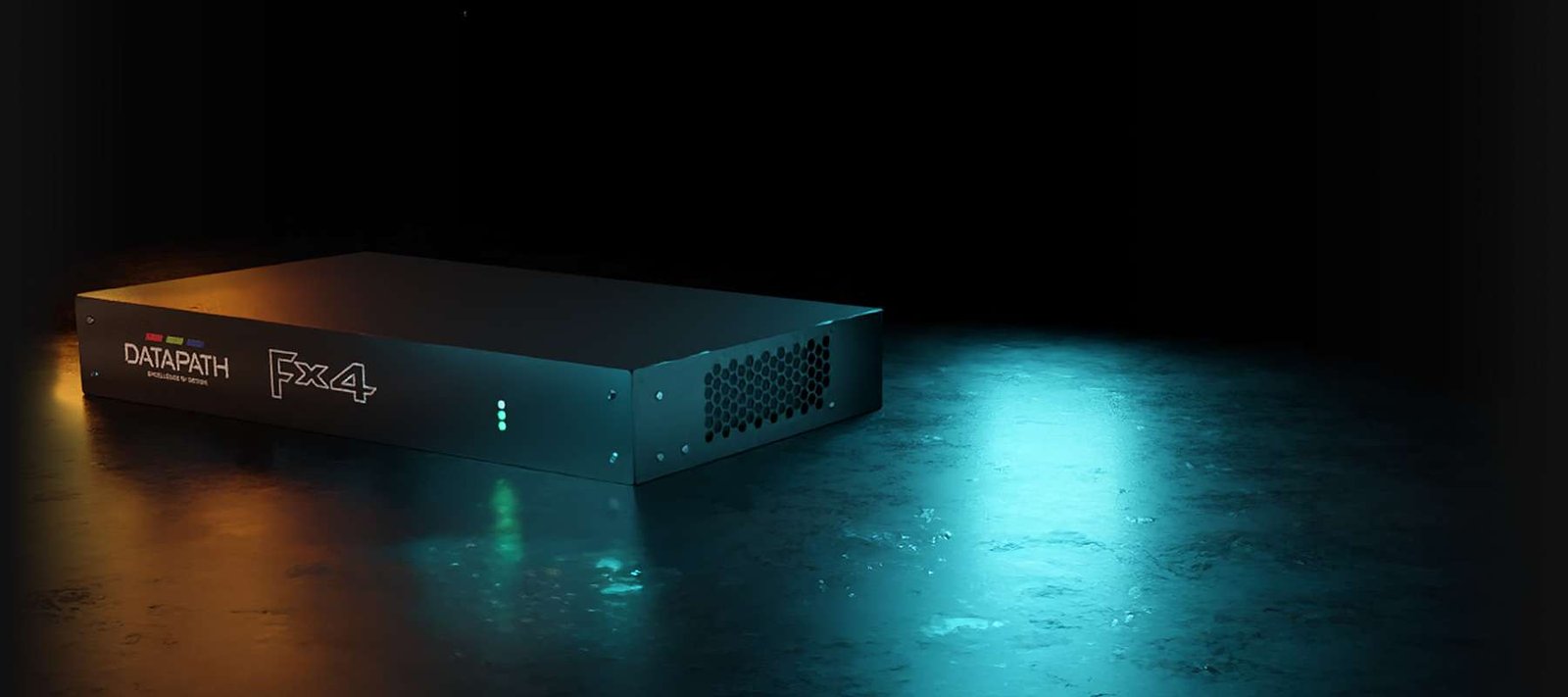

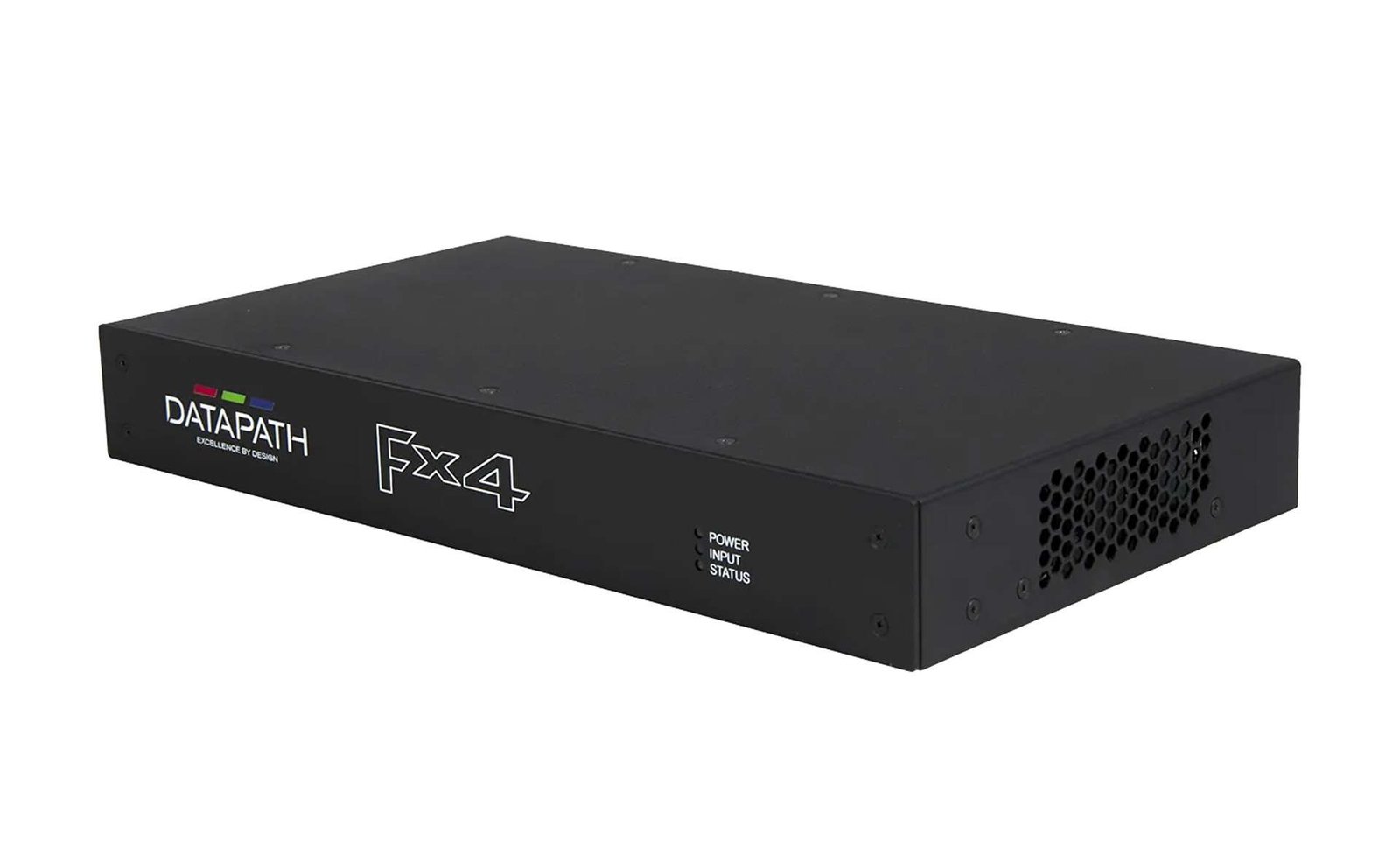

Datapath Fx4 Video Wall Controller

From £1,626.95 — request a quote

Key features

Choice of DisplayPort or HDMI inputs (1x DisplayPort 1.2 + 2x HDMI 1.4)
High-bandwidth loop-through for daisy-chaining via dual Ethernet ports
Four genlocked outputs, kept in sync
Standalone controller, no PC required

Standalone multi-input video wall controller from Datapath, four genlocked outputs.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Online ordering is not open yet. Tell us what you need below and we'll confirm availability, delivery and installation.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

SKU: EIS-VW-CTRL-DATAPATH-FX4 Category: Video Walls Brand: Datapath

Specifications

Datapath Fx4 Video Wall Controller specifications
Brand	Datapath
Model	Datapath Fx4

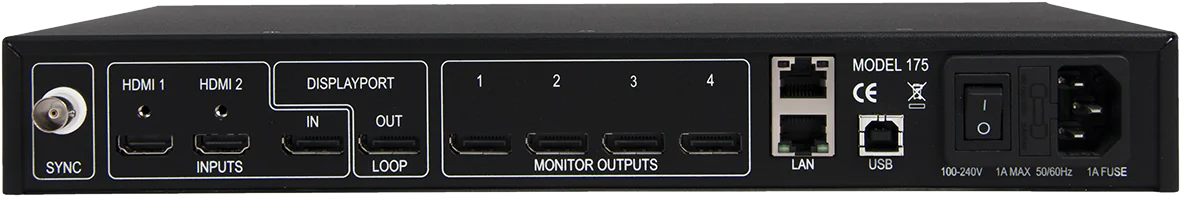

Inputs	1 x DisplayPort 1.2 and 2 x HDMI 1.4
Outputs	4 x HDMI 1.3 or 4 x DisplayPort 1.1
Output resolution	1080p60 or 1200p60 per output
Maximum input surface	8K x 8K
Genlock	Analogue HD tri-level sync via BNC, or embedded sync from any video input
Daisy-chaining	DisplayPort loop to link multiple units, Ethernet loop-through on the second LAN port
Network	Dual 100Base-T Ethernet, USB 2.0 Type B
Power	100 to 240 V, 50/60 Hz, 35 W
Dimensions	316 x 172 x 42 mm (L x W x H)
Weight	1.86 kg
Operating temperature	0 °C to 35 °C
Warranty	3 years standard

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

The outputs are either four HDMI 1.3 or four DisplayPort 1.1, depending on the variant. Confirm the output type when you request a quote.
Each output runs at up to 1080p60 or 1200p60, so the displays in the wall are driven at those resolutions.
Genlock uses progressive syncs only.
More than four outputs are possible by linking several Fx4 units over the DisplayPort loop.

Frequently asked questions

How many displays can one Fx4 drive?

It has four outputs. The manufacturer lists a DisplayPort loop to link multiple Fx4 units when more than four outputs are needed.

What inputs does the Fx4 have?

One DisplayPort 1.2 input and two HDMI 1.4 inputs.

Can the outputs be synchronised?

Yes. The manufacturer lists genlock using analogue HD tri-level sync on a BNC connector, or embedded sync from any video input, progressive syncs only.

What is the warranty?

The manufacturer lists a 3 year standard warranty.

Description

Efficient IS supplies the Datapath Fx4 Video Wall Controller to UK organisations, with delivery, survey and installation available on request.

Drives content across a tiled video wall from multiple inputs with layout presets. The Fx4 is Datapath’s standard controller for mid-sized wall configurations, and a standalone unit, no separate PC required.Specifications:

Brand: Datapath
Inputs: 1x DisplayPort 1.2 plus 2x HDMI 1.4
Outputs: 4 genlocked outputs, kept in sync
Daisy-chaining: High-bandwidth loop-through via dual Ethernet ports
Layout: Preset layouts included

Buying the Datapath Fx4 Video Wall Controller from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
