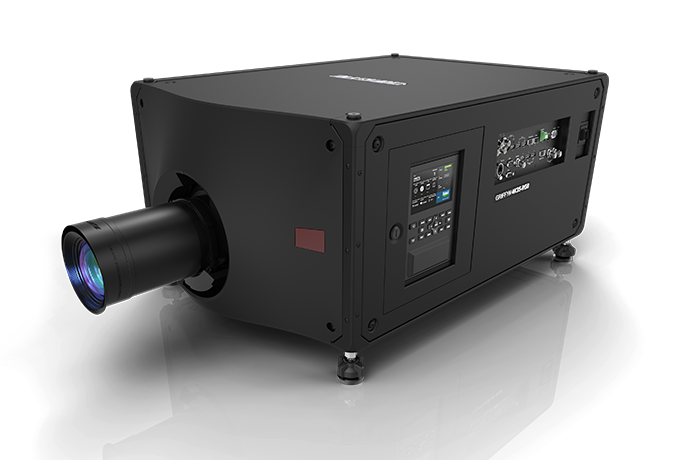

Christie Griffyn 4K35-RGB laser projector, front view

Christie Griffyn 4K35-RGB Laser Projector, view 2

Christie Griffyn 4K35-RGB Laser Projector, view 3

Christie Griffyn 4K35-RGB Laser Projector, view 4

Christie Griffyn 4K35-RGB Laser Projector

From £40,000.00 — request a quote

Key features

Solid-state pure RGB laser, no phosphor wheel
Native 4K (4096×2160) 3-chip DLP
Up to 36,500 ISO lumens, dimmable down to 14,600 ISO for smaller rooms
Approximately 98% Rec. 2020 colour coverage
Interchangeable lenses cover throw ratios from 0.38:1 to 4.98:1
Built for live theatre, performing arts, planetariums and projection mapping

Flagship 4K RGB pure laser projector for theatres, concert halls and immersive venues. Guide price shown is a starting point only, final quotation follows a free site survey.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Indicative pricing, final cost confirmed as part of your quote, based on quantity, site survey and exact specification.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

SKU: EIS-PRJ-THEATRE-CHRISTIE-GRIFFYN-4K35-RGB-LASER Category: Large Venue Projection Tags: 4K laser projection, Christie Griffyn, theatre projector Brand: Christie

Specifications

Christie Griffyn 4K35-RGB Laser Projector specifications
Brand	Christie
Manufacturer part number	163-049104
Brightness	36,500 ISO lumens (32,500 ANSI lumens)
Resolution	Native 4K, 4096 x 2160
Display	3DLP, 1.38 inch DMD
Light source	RGB pure laser, rated 25,000 hours to 50% output
Contrast	2000:1 on/off, 5000:1 with a high-contrast lens
Lenses	Interchangeable Christie ILS4 lenses

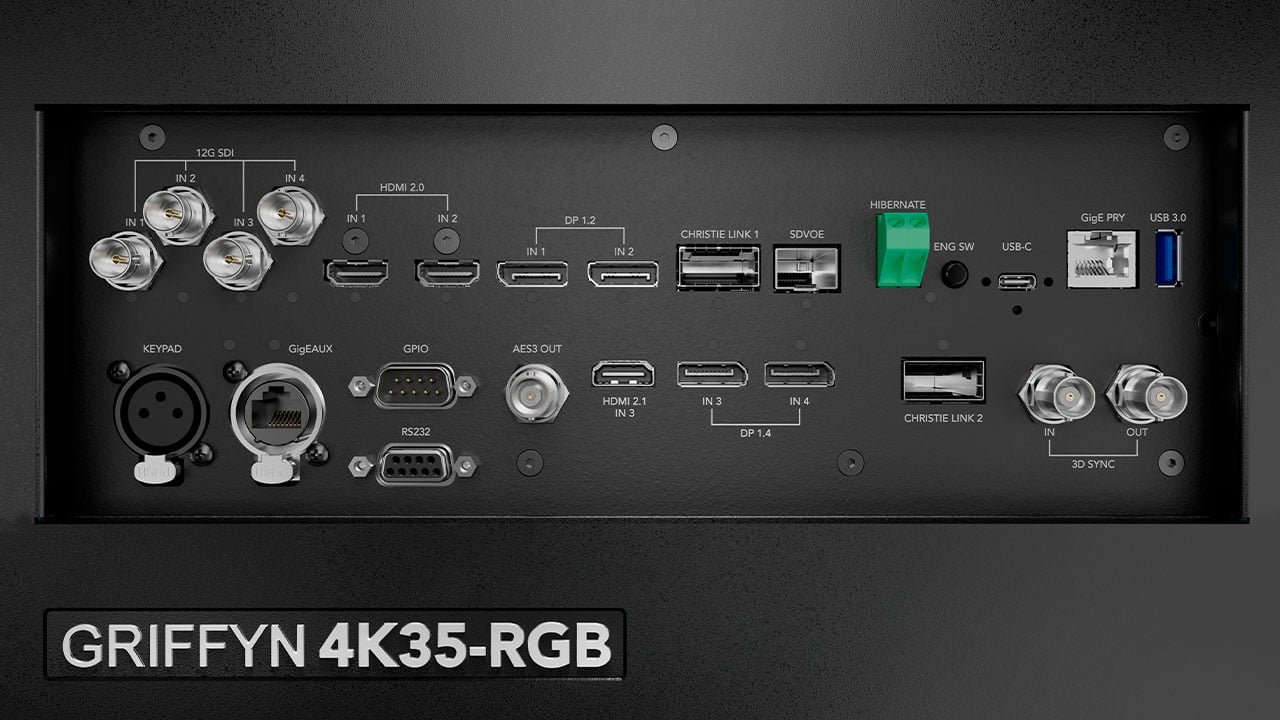

Inputs	HDMI 2.1, HDMI 2.0, DisplayPort 1.4 and 1.2, 4 x 12G-SDI, SDVoE
Control	Ethernet, RS232, GPIO, wired keypad
Power	Single-phase 200 to 240 V AC, 2600 W maximum
Noise	43 dBA in quiet fan mode
Operating temperature	5 °C to 40 °C
Dimensions	922 x 635 x 380 mm, excluding lens
Weight	81.2 kg

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

Christie lists a range of interchangeable ILS4 lenses with throw ratios from 0.38:1 to 7.69:1. The lens is chosen for the venue, so confirm the lens when you request a quote.
Brightness is reduced by up to 30% with high-contrast or ultra short throw lenses, according to the manufacturer.
Rated for 200 to 240 V AC single-phase supply. A low-line mode on 100 to 120 V AC is listed at reduced brightness.
It is a Class 1 laser product, risk group 3. The unit weighs 81.2 kg without lens, so rigging and handling need planning.

Frequently asked questions

What brightness does the Christie Griffyn 4K35-RGB produce?

The manufacturer rates it at 36,500 ISO lumens, equivalent to 32,500 ANSI lumens. Brightness is lower with high-contrast or ultra short throw lenses.

Does the Griffyn 4K35-RGB use a phosphor wheel?

No. It is a pure RGB laser projector, with a light source rated at 25,000 hours to 50% of original output.

Which lenses can be fitted?

It accepts Christie ILS4 interchangeable lenses. The correct lens depends on screen size and throw distance.

Description

Efficient IS supplies the Christie Griffyn 4K35-RGB Laser Projector to UK organisations, with delivery, survey and installation available on request.

The Christie Griffyn 4K35-RGB is a solid-state pure RGB laser projector with no phosphor wheel, built for large-venue use where pure RGB laser colour accuracy matters more than raw lumens alone.Specifications:

Brand: Christie
Product: Griffyn 4K35-RGB, solid-state pure RGB laser projector, no phosphor wheel
Resolution: Native 4K (4096×2160), 3-chip DLP
Brightness: Up to 36,500 ISO lumens, dimmable down to 14,600 ISO for smaller rooms
Colour: Roughly 98% Rec. 2020 colour coverage
Lenses: Interchangeable, throw ratios from 0.38:1 to 4.98:1, suiting both close-throw and long-throw theatre configurations
Suited to: Live theatre and performing arts, planetariums, projection mapping

Buying the Christie Griffyn 4K35-RGB Laser Projector from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
