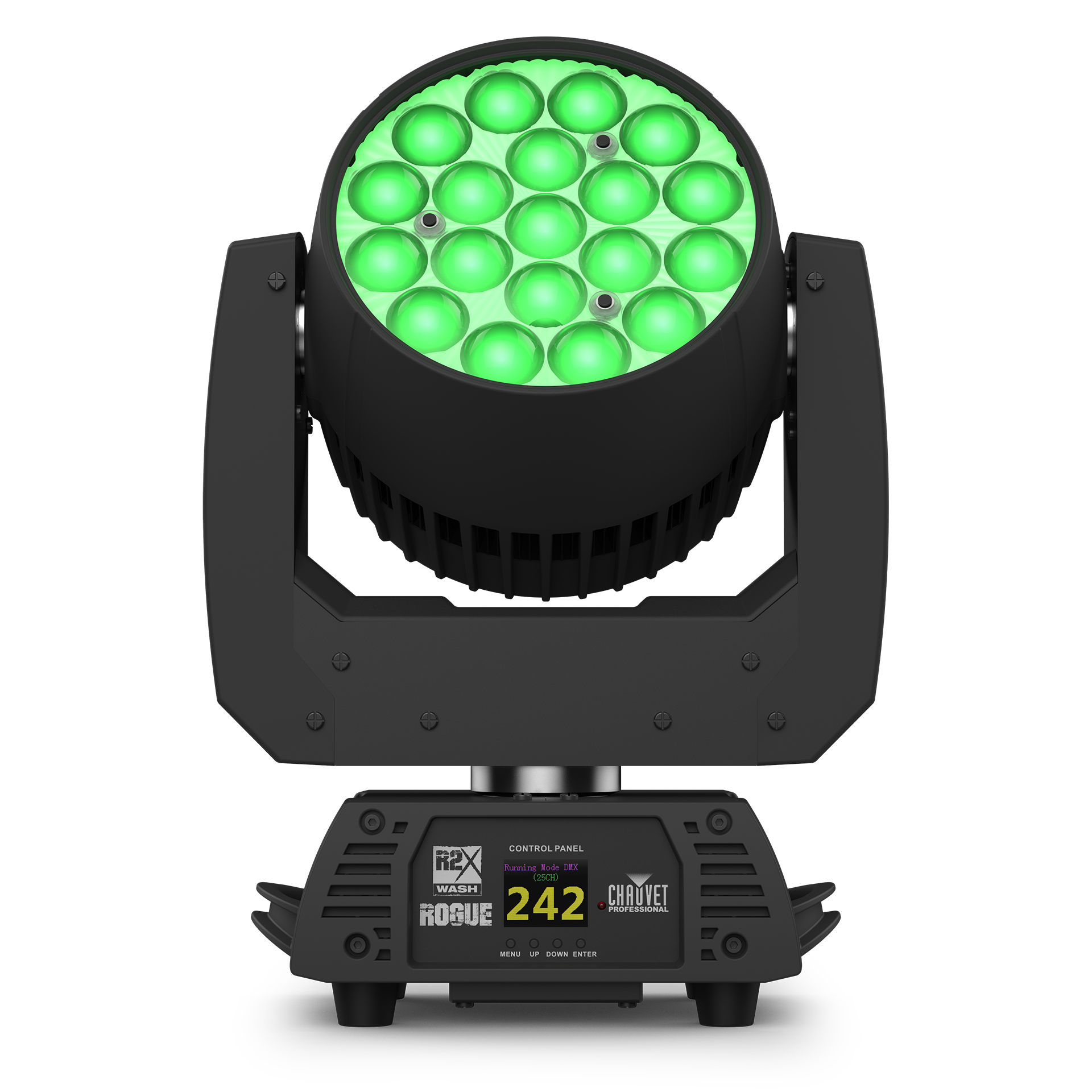

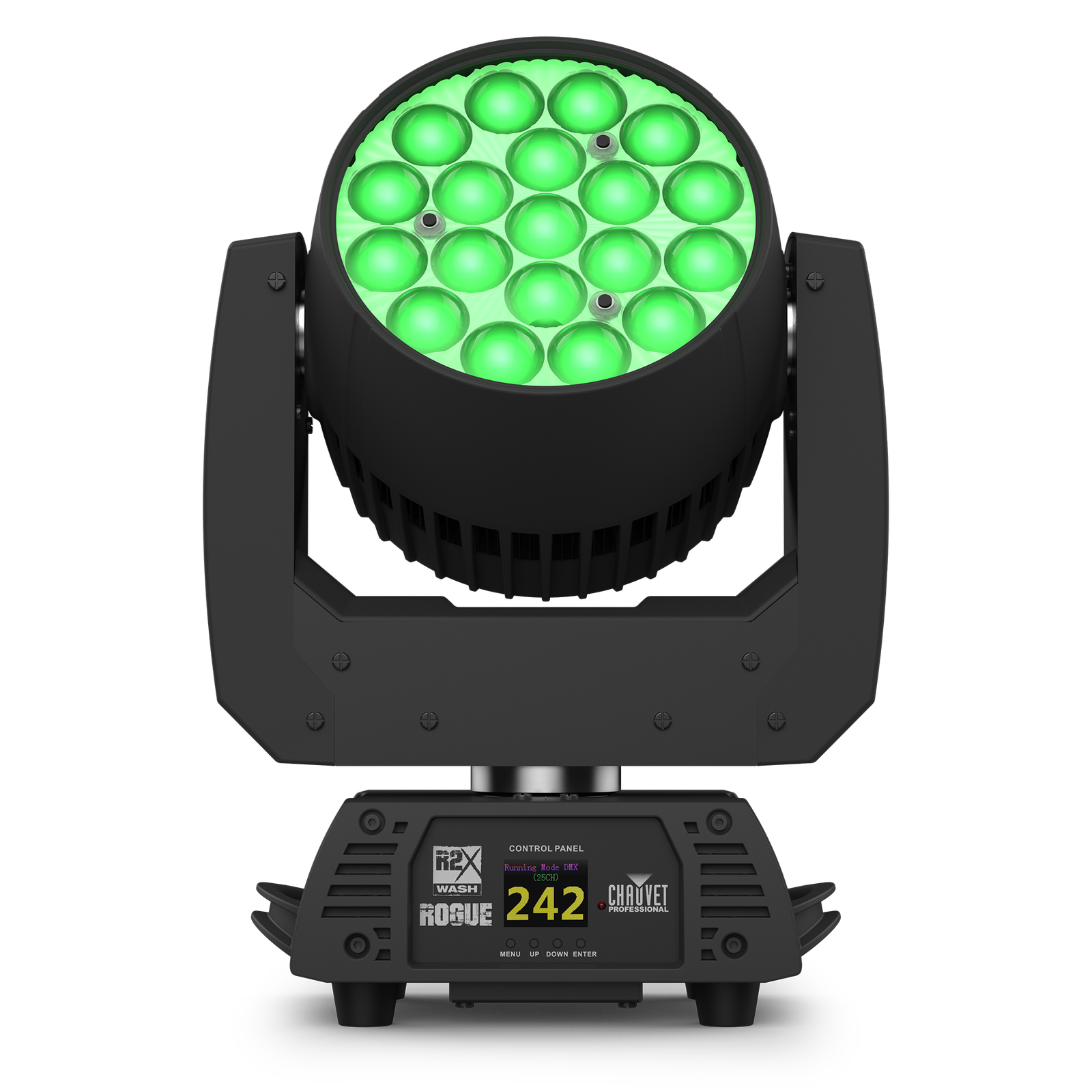

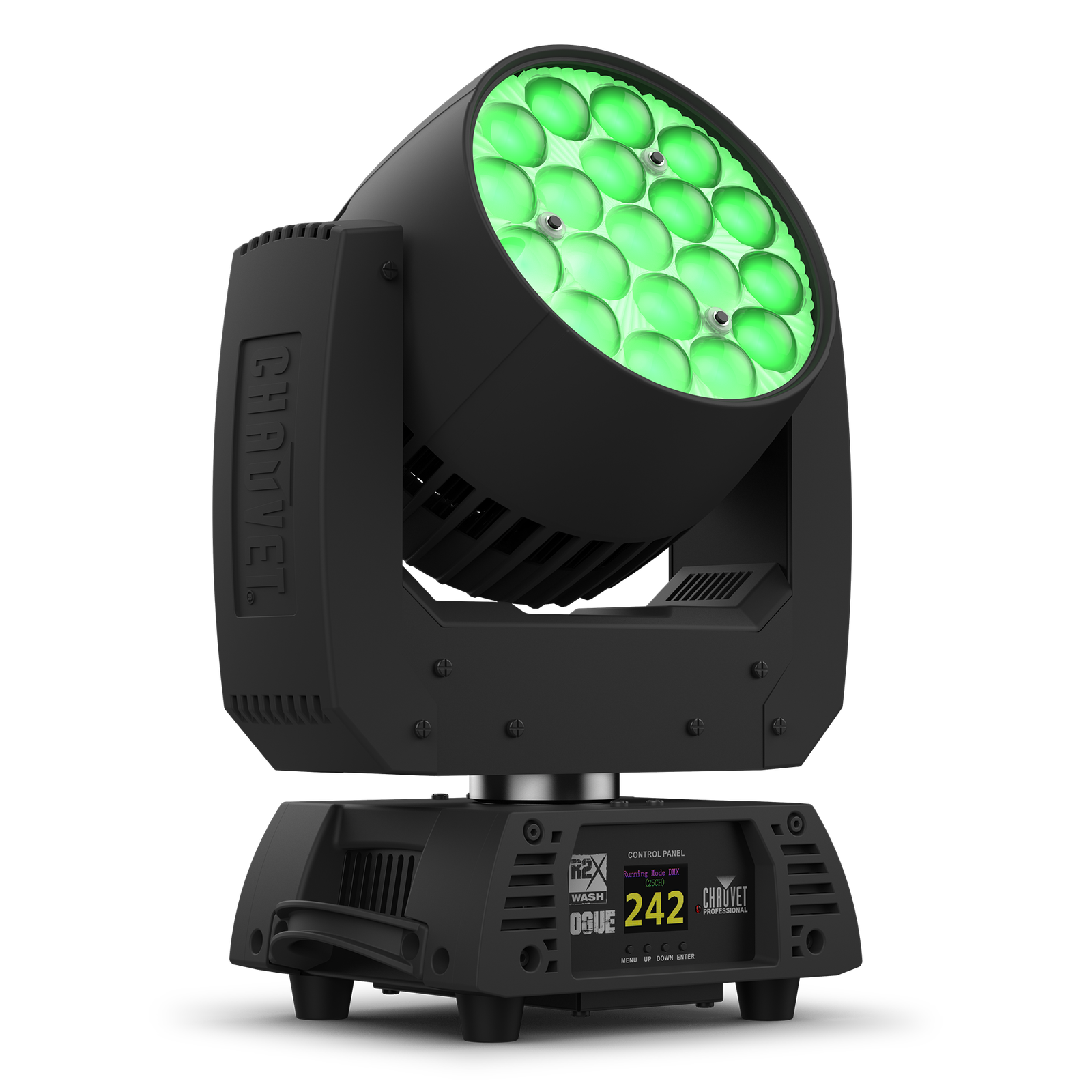

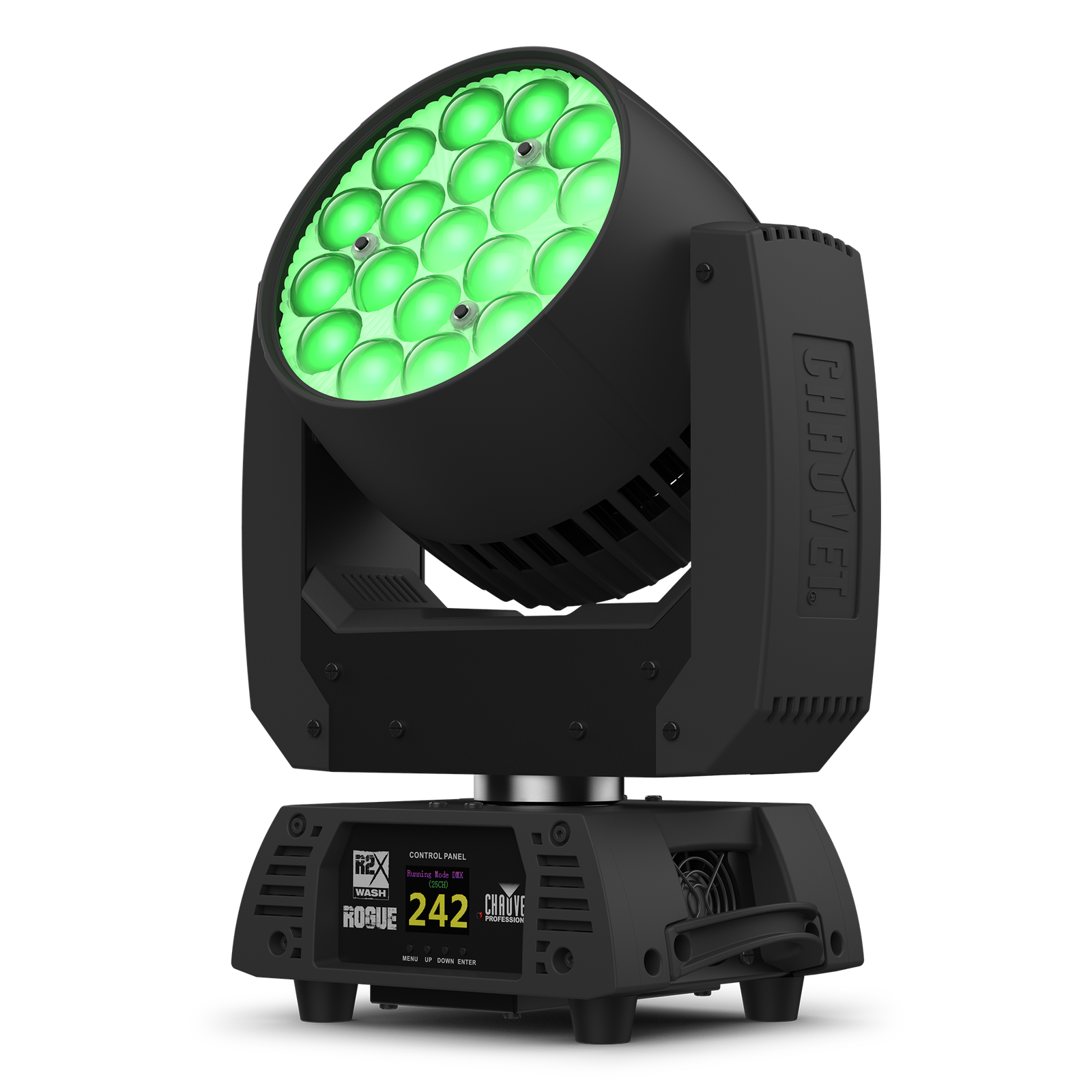

Chauvet Professional Rogue R2X Wash Moving Head (Pair)
From £2,000.00 — request a quote
Key features
- 19x 25W quad-colour (RGBW) LEDs, approximately 10,300 lumens output per fixture
- 7.3° to 64.3° zoom range with 5 independently controllable LED zones for pixel-mapping effects
- Variable white colour temperature from 2800K to 10000K
- 540° pan / 230° tilt range, with 8 selectable DMX personalities (15 to 56 channels)
Pair of Chauvet Professional Rogue R2X Wash moving heads, ~10,300 lumens each, for stage and event lighting.
Fast UK deliveryMost in-stock items ship within a few working days.
Survey & installationAvailable on request, we'll quote it alongside the product.
Staff trainingHands-on training available on projects that include it.
Ongoing supportMaintenance and care plans available, see Support & Maintenance.
Online ordering is not open yet. Tell us what you need below and we'll confirm availability, delivery and installation.
Specifications
Chauvet Professional Rogue R2X Wash Moving Head (Pair) specifications| Brand | Chauvet Professional |
|---|
| Manufacturer part number | ROGUER2XWASH |
|---|
| Quantity | Pair (2 fixtures) |
|---|
| Light source | 19 RGBW LEDs, 25 W each |
|---|
| Light output | 6,418 lm (10,300 lm source) |
|---|
| Colour temperature | 2800 K to 10000 K |
|---|
| Zoom | Motorised, 7.3° to 64.3° |
|---|
| Pan and tilt | 540° pan, 230° tilt |
|---|
| Control | DMX and RDM, 8 channel modes from 15 to 56 channels |
|---|

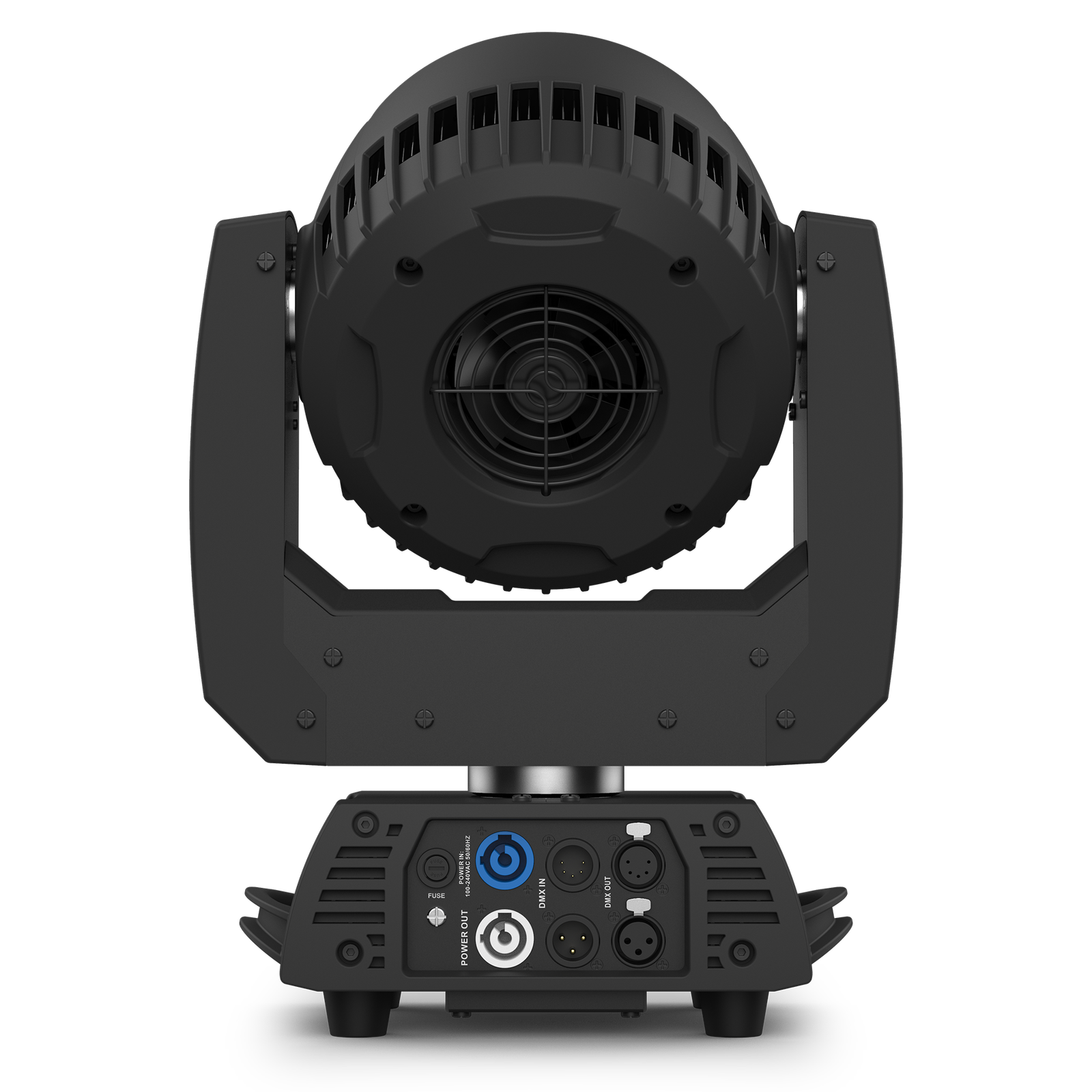

| Connectivity | 3-pin and 5-pin XLR data in and out, powerCON power in and out |
|---|
| Power | 100 V to 240 V AC, 50/60 Hz, 344 W at 230 V |
|---|
| Dimensions | 218 x 306 x 398 mm |
|---|
| Weight | 10.3 kg per fixture |
|---|
| IP rating | IP20, dry locations only |
|---|
Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.
What you need to know
- The fixture is rated IP20 and is for dry locations only, so it is not suitable for outdoor use.
- Each fixture draws 344 W at 230 V, so allow for the combined load of both heads on the supply and plan the powerCON linking.
- Control is by DMX or RDM. Standalone colour mixing, colour temperature presets and built-in automated programs are available, but custom programs are not supported.
- The manufacturer lists a powerCON power cord and an Omega mounting bracket with each fixture.
Frequently asked questions
How are the two fixtures controlled?
Through DMX with RDM support, using one of 8 channel modes (15, 17, 22, 33, 33 MS, 54, 54 MS or 56 channels). Standalone colour mixing is also available.
Can the Rogue R2X Wash be used outdoors?
No. Chauvet rates it IP20 for dry locations only.
What beam angle does it have?
The motorised zoom covers 7.3° to 64.3°, with a beam angle of 7.3° to 35.2° and a field angle of 11.2° to 51.2°.
