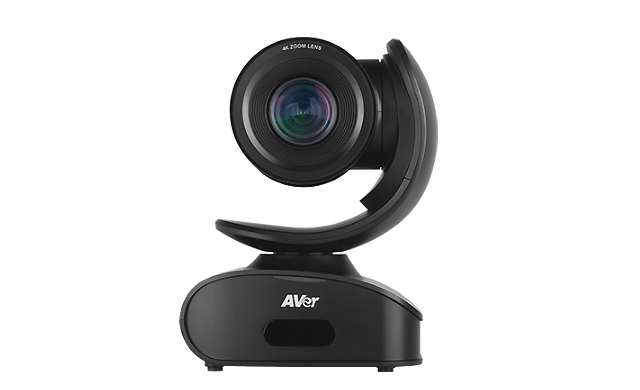

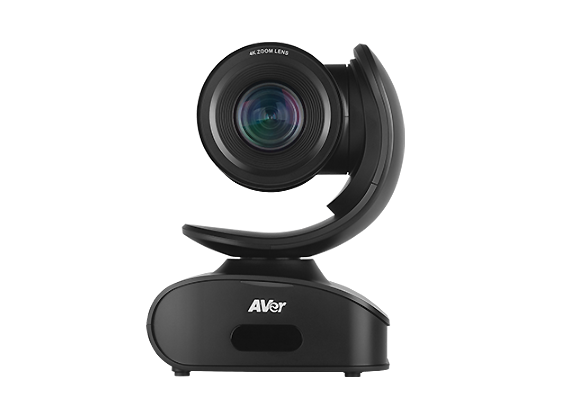

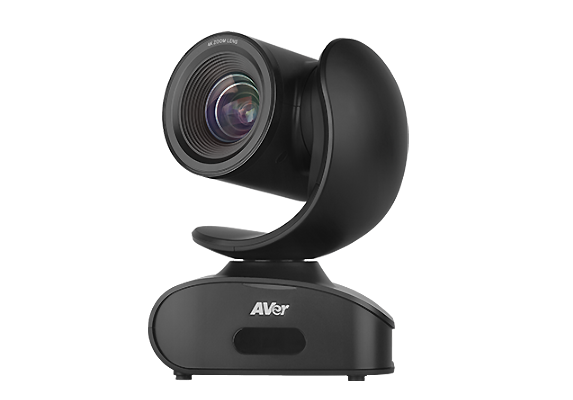

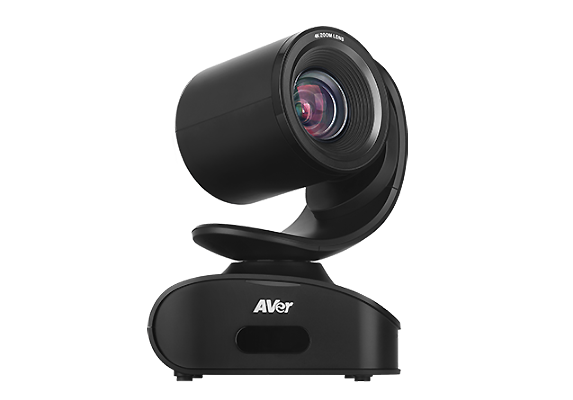

AVer CAM540 PTZ Conference Camera

From £1,120.95 — request a quote

Key features

USB Type-C output (USB 2.0/3.1 Gen1), no HDMI output
Compatible with Zoom, Microsoft Teams, Skype for Business, Cisco WebEx and more via UVC plug-and-play
4K sensor with 16x zoom (3.3x optical + digital)
Auto-framing based on facial recognition (AVer SmartFrame)
10 storable PTZ presets via RS232/VISCA

PTZ conference camera with 3.3x optical zoom for larger meeting rooms.

Fast UK deliveryMost in-stock items ship within a few working days.

Survey & installationAvailable on request, we'll quote it alongside the product.

Staff trainingHands-on training available on projects that include it.

Ongoing supportMaintenance and care plans available, see Support & Maintenance.

Online ordering is not open yet. Tell us what you need below and we'll confirm availability, delivery and installation.

Discuss this project

Tell us a bit about what you need, a specialist will get back to you, usually within one working day.

📄 Spec sheet (PDF)🔧 Installation guide (PDF)

SKU: EIS-MR-AVER-CAM540 Category: Meeting Room & Video Conferencing Brand: AVer

Specifications

AVer CAM540 PTZ Conference Camera specifications
Brand	AVer
Resolution	Up to 4K at 30 fps
Field of view	86 °
Zoom	16x HD zoom (3.3x optical plus digital)
Pan	Plus or minus 160 °
Tilt	90 ° up, 30 ° down
Presets	10 PTZ presets
Connectivity	USB Type-C (USB 3.1 Gen1), UVC plug and play
Control	RS-232 via Mini DIN6 (VISCA, Pelco P, Pelco D), IR remote
Power	12 V, 2 A via supplied adapter
Dimensions	97.8 x 130.7 x 171.1 mm (camera)
Weight	1.5 kg (camera)
Operating temperature	0 °C to 40 °C
Mounting	Wall or ceiling mount included, standard tripod thread

Specifications are taken from the manufacturer's published datasheet and can change between hardware revisions. We confirm the exact model against your requirements before supplying it.

What you need to know

The camera has a USB Type-C output only. There is no HDMI output.
AVer lists the camera as Zoom certified and Microsoft Teams certified, and it works as a UVC plug-and-play device with other conferencing software.
The box contains the camera, remote control, power adapter, USB 3.1 Type-C to Type-A cable, USB Type-A to Type-C adapter, metal mount and tripod screw. The Mini DIN6 to RS-232 adapter is an optional accessory.
SmartFrame automatic framing and the people-counting analytics API are listed as AI features of this camera.

Frequently asked questions

Does the AVer CAM540 have an HDMI output?

No. AVer lists USB Type-C (USB 3.1 Gen1) as the connection, so it connects to a room PC or conferencing device over USB.

How many camera presets can be stored?

AVer lists 10 PTZ presets, which can be recalled from the remote, over RS-232 using VISCA, or via UVC.

Can the CAM540 be connected to a room control system?

AVer lists a Mini DIN6 RS-232 port supporting VISCA, Pelco P and Pelco D. The Mini DIN6 to RS-232 adapter is an optional accessory.

What is the pan and tilt range?

AVer lists pan of plus or minus 160 degrees and tilt of 90 degrees up and 30 degrees down.

Description

Efficient IS supplies the AVer CAM540 PTZ Conference Camera to UK organisations, with delivery, survey and installation available on request.

Pan-tilt-zoom conference camera specified for larger rooms where a fixed wide-angle camera can’t cover the whole table.Specifications:

Brand: AVer
Field of view: 86 degrees
Zoom: 3.3x optical, 16x with digital enhancement
Pan range: Plus or minus 160 degrees horizontal
Tilt range: Plus 90 to minus 30 degrees vertical
Connectivity: USB-C (USB 3.1 Gen1)
Integration: Optional RS-232 port for room control systems

Buying the AVer CAM540 PTZ Conference Camera from Efficient IS

We deliver across the UK and can survey the site, install and commission the equipment, train your staff and support it afterwards. Not sure it suits your room or project? Send us the details and we’ll tell you straight whether it’s the right fit.
